Fusion DAB+ Module With Powered Antenna

Great radio all the time

Fusion introduces support for the latest digital radio broadcasts,
DAB and DAB+, on the 750, 755 and 650 Series entertainment systems.
Support for DAB is growing globally with more countries adopting
the protocol and more stations becoming available regularly.

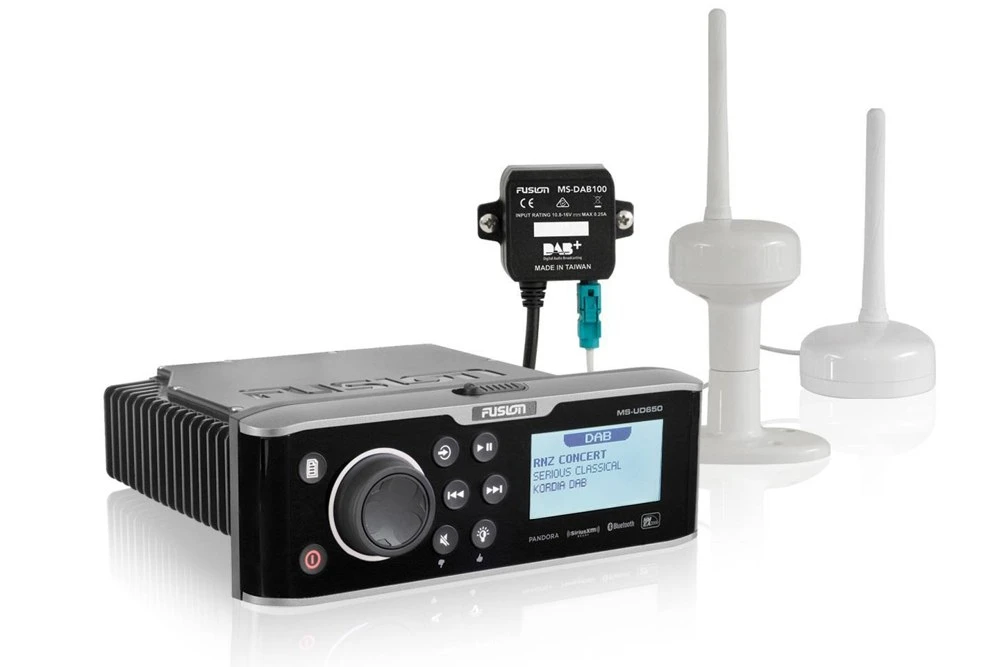

The Fusion DAB+ Module with Powered Antenna
provides access to digital radio when connected with an antenna.
Simply connect to a supported stereo with an antenna and enjoy the
newly created DAB source with Fusion’s superior sound quality.

Digital radio doesn’t suffer from the annoying effects of
electrical interference or interference caused by adverse
atmospheric conditions, which can spoil analogue broadcasts. With
digital radio, due to how it is broadcast, there is no hiss,
crackle, fading or overlap – just great radio all the time if you
are within the coverage area.

With digital radio technology, broadcasters can transmit more
stations than ever before. From rock to easy listening, today’s
hits to books and comedy, on average the digital radio listener
will have double the choice of stations compared to listening via
FM (depending on their location).

On-Screen Station Information
The connected Fusion stereo will display the station name,
ensemble, program type, category and dynamic label segment (DLS)
information for easy recognition and searching of the available
digital radio stations.

Multi-Region Support
Many regions have digital radio support, including the EU, Norway,
Switzerland and Australia.

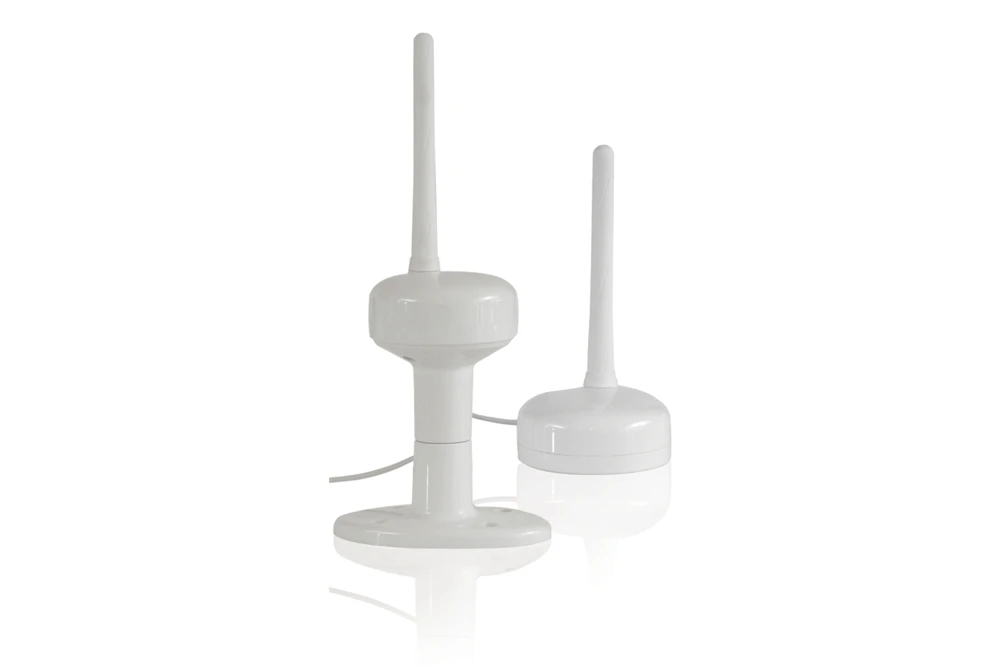

Antenna Mounting Options
The antenna features two mounting options for easy installation
onto any vessel.

Mounting options include:
Standard 1 Pole Mount – The antenna can be pole mounted using
either the included 1 inch outer diameter threaded mounting
bracket, or a user-supplied pole mount. The included mounting
bracket comes with four mounting screws that secure the base to the
mounting

Surface Mounting – To surface mount the antenna either use the
included double sided adhesive pad, or utilize the included
threaded rods with thumb screws for easy installation.

Note: Support for the DAB module requires a
software update to both the stereo and the module. Software can be
downloaded from the stereo product page. Refer to the installation
instructions or Fusion’s Tech Tip series for information on
updating both products.

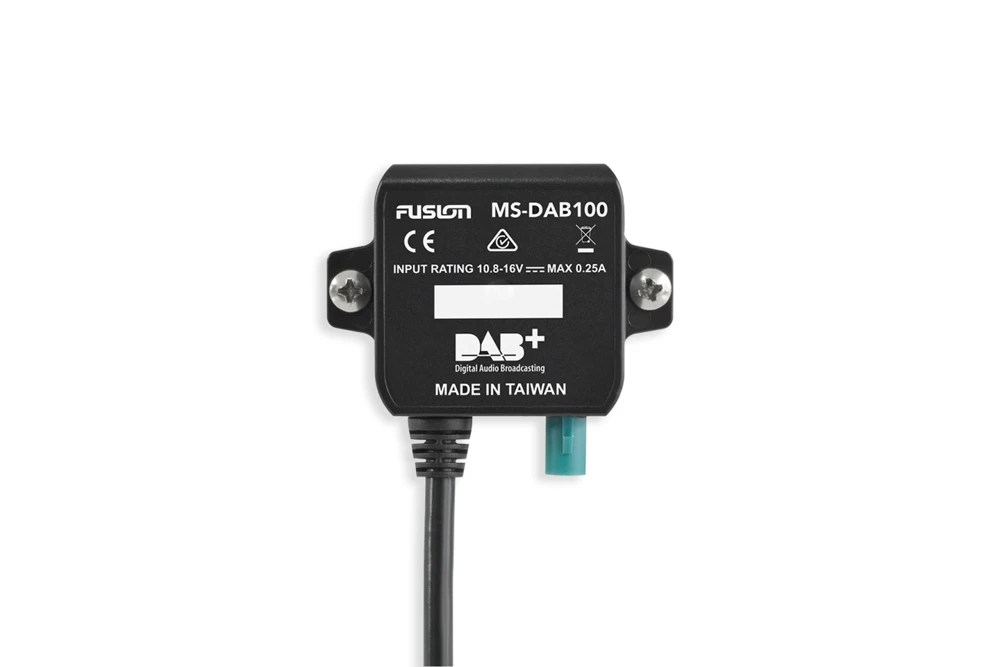

Fusion DAB+ Module with Powered Antenna
Specifications:

Module Input Current	250mA maximum
Module Operating Temperature Range	0 to 50 degreesC (32 to 122 degreesF)
Module Storage Temperature Range	-20 to 70 degreesC (-4 to 158 degreesF)
Module Compatibility	DAB, DAB+
Stereo Compatibility	MS-UD755, MS-AV755, MS-UD750, MS-AV750, MS-UD650, MS-AV650, MS-RA70, MS-RA70N, MS-BB100, MS-RA205
Supported Regions	EU, Norway, Switzerland and Australia
Module Sensitivity	-97 dBm
Module Input Voltage	10.8 to 16 Vdc
Output Voltage to Antenna	8 to 15 Vdc
Module Water Resistance	IPx3 mounted with connectors down
Antenna Water Resistance	IPx7
Module Antenna Connector Type	FAKRA Z-Type Water Blue male
Cable Length	1.5M (4.9Ft) Stereo connection Cable
Antenna Connector Type	FAKRA Z-Type Water Blue female
Antenna Impedance	50 Ohm
Antenna LNA Gain	22 dB Typical
Antenna Input Current	13 mA
Antenna Input Voltage	6 to 16 Vdc
Antenna Cable Length	10M (32.8 Ft)

Mounting Dimensions

Module Dimensions	58mm H x 64mm W x 21mm D (2.28 x 2.52 x 0.83 In)
Antenna Maximum Dimensions	248mm H x 110mm W (9.76 x 4.33 In)
