Fusion FM-F77SB Flush Mount Marine Speakers 7.7in 200W Black

Clear audio, clean aesthetics, all-class

Engineered for high-quality audio reproduction with innovative
design aesthetics, the Fusion FM-F77SB Flush Mount Marine
Speakers deliver enhanced acoustics to your vessel in a
sleek and minimalistic form factor to meet the latest boat design
trends. Featuring an intelligent mounting system for non-intrusive,
easy installation, the FM Series speakers are designed to be flush
mounted with a mounting profile no thicker than 2.5mm (3/32″) for a
premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine accreditation and an
industry-leading 3-year warranty, you can enjoy peace of mind that
your FM Series speakers are built to last on board season after
season.

Enhanced design aesthetics
The FM Series have been purposely created to meet the latest boat
design trends with a sleek and minimalistic design. By
incorporating a timeless, classic grille styling, the FM Series
will complement the aesthetics of any vessel with its enhanced
design cues.

Innovatived flush mount design

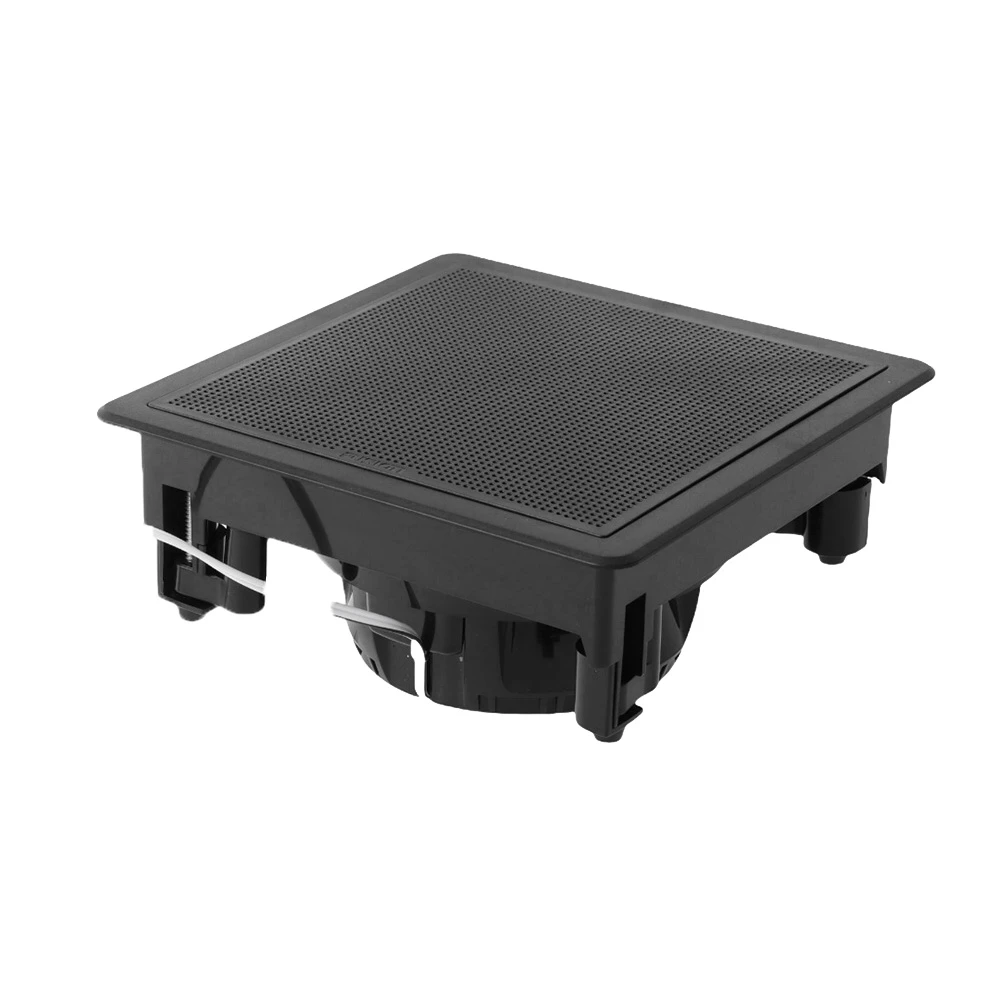

The innovative, flush mount design of the FM Series speakers allows
for an ultra low profile installation (mounting profile no greater
than 2.5mm or 3/32″) for a visually appealing, premium near-flat
finish never before seen on a marine speaker.

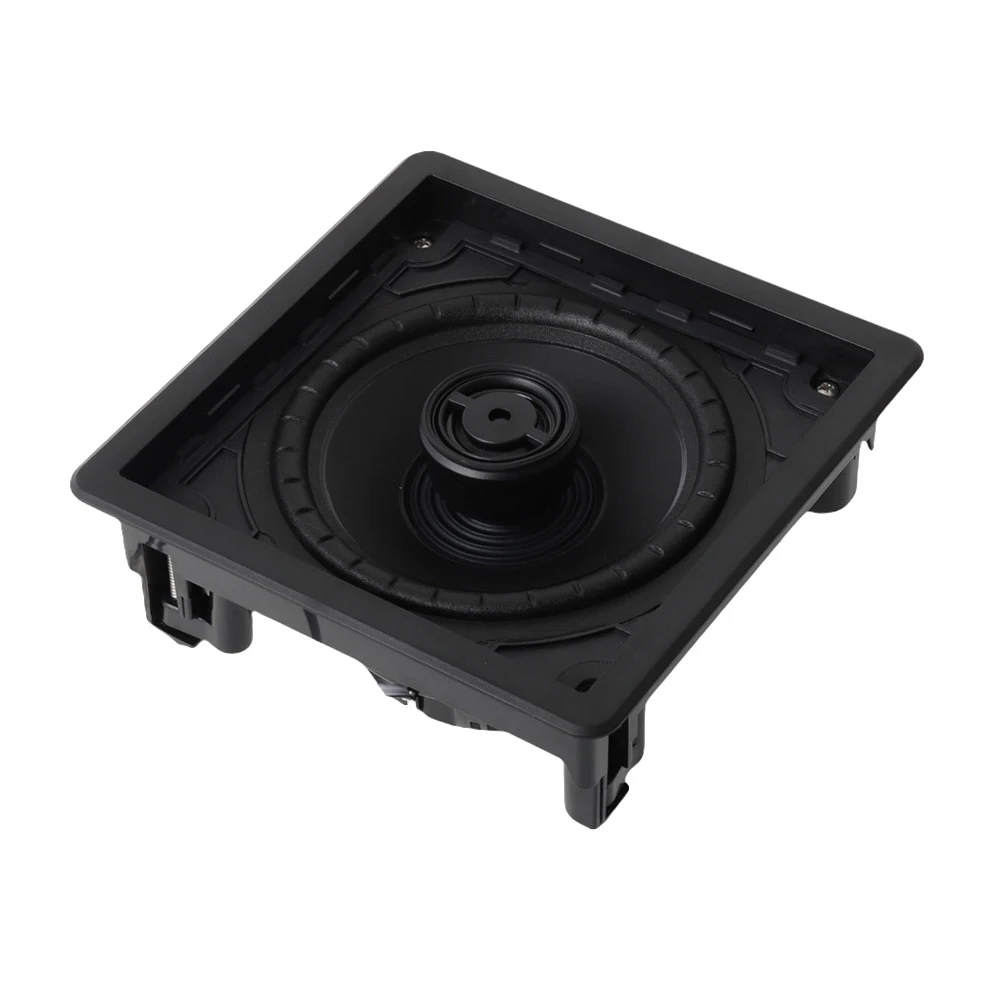

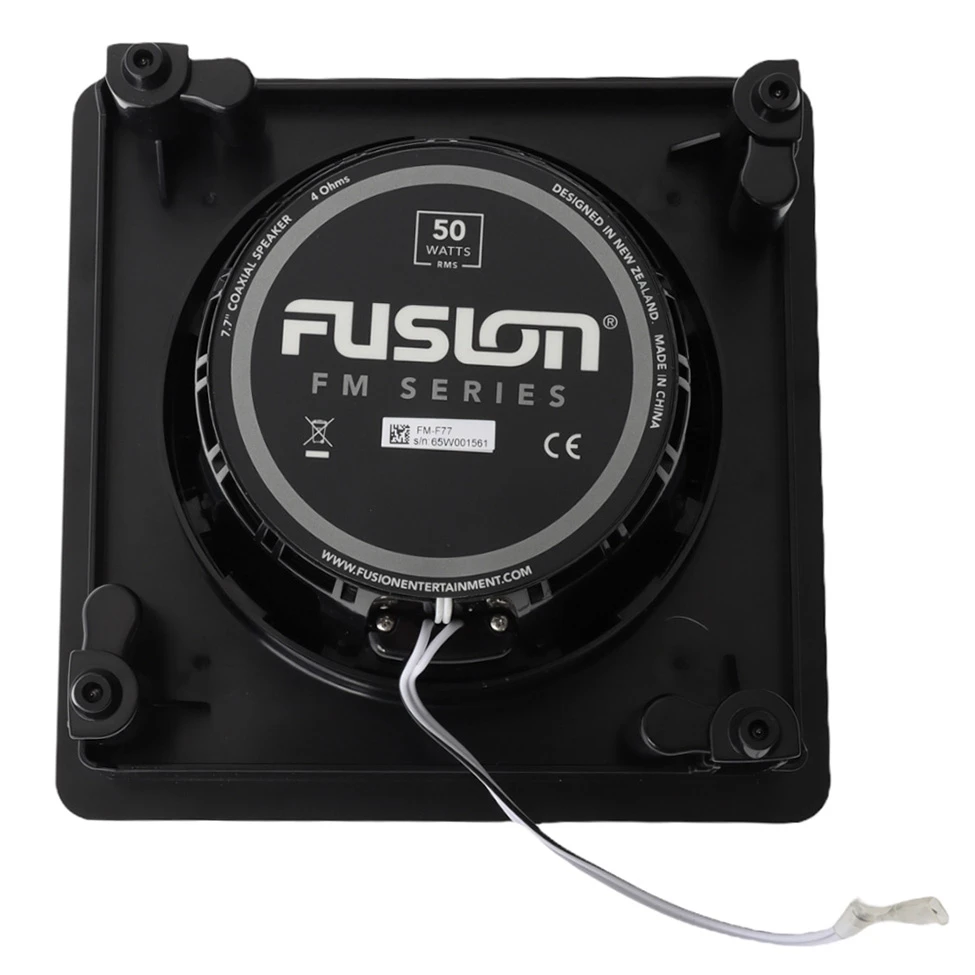

The FM Series also features an intelligent mounting system for a
non-intrusive, simple installation. Simply place the speaker in the
cutout, tighten the screws and the ‘speaker legs’ will tighten
against the panel, keeping the speaker in place without creating
any screw holes to your vessel.

The True-Marine standard
As a True-Marine product, the FM Series subwoofer is designed and
engineered for the harsh marine environment. Once a product has
been subject to rigorous environmental testing and passed Fusion’s
stringent True-Marine approval process, it’s awarded the
accreditation and recognised with an industry-leading 3-year
consumer warranty.

IP65 weatherproof
Perfect for installation both indoors and outdoors, the FM Series
speakers are rated IP65 for water and dust ingress protection from
the front when installed correctly, while also meeting industry
standards for UV and salt fog protection.

Designed to comply with ISO12216
The FM Series have passed stringent pressure and watertightness
tests in accordance to ISO12216 (D1.1 for Areas II, III and IV).
This is critically important as it ensures the boat builders and
consumers alike are installing genuinely safe speakers on board
their vessel. By achieving ISO12216 compliance is a recognition of
the product’s superior design and build quality.

Fusion FM-F77SB Flush Mount Marine Speakers
Features:

• Optimised Full Range Speaker: the FM Series speakers are
  acoustically optimised for performance in the marine environment,
  by combining optimised speaker drivers and aluminium dome tweeters
  to produce quality sound at all volumes.
• Innovative Design Aesthetics: designed with a low profile,
  near-flat installation for a visually appealing finish, the FM
  Series will complement the aesthetics of any vessel
• Non-Intrusive Mounting System: the FM Series uses ‘speaker
  legs’ that keep the speaker in place without creating any screw
  holes to your vessel
• True-Marine Designed and Engineered: extensively tested to
  perform in the harsh marine environment, the FM Series carry an
  IP65 weatherproof rating along with True-Marine
  accreditation
• Designed to Comply with ISO12216: Tested to international
  standards for pressure and watertightness, it recognises the FM
  Series are designed and built to the highest industry standards for
  quality and robustness

Fusion FM-F77SB Flush Mount Marine Speakers
Specifications:

• Speaker Size: 7.7″
• Peak Power: 200 Watts
• RMS Power Rating: 50 Watts
• Efficiency (1W/1M): 91 dB
• Frequency Response: 80 Hz – 18 kHz
• Nominal Impedance: 4 Ohms
• Recommended Amplifier Power (RMS): 20 – 150 W/Ch
• Tweeter Type: Aluminium dome
• Cone / Surround Material: Polypropylene with cloth
  surround
• Mounting Diameter Clearance: 165mm x 165mm [6-1/2″ x
  6-1/2″]
• Mounting Depth Clearance: 83mm [3-1/4″]
• Optimum Enclosure Volume (Sealed enclosure, fully filled with
  absorption material): 8L
• Operating Temperature Range: 0 to 50°C (32 to 122°F)
• Storage Temperature Range: -20 to 70°C (-4 to 158°F)
• Water and Dust Resistance (IPX rating): IP65
• Warranty: 3 years
• Colour: Black
