Fusion FM-S10SW Flush Mount Marine Subwoofer 10in 400W White

Clear audio, clean aesthetics, all-class

Engineered for high-quality audio reproduction with innovative
design aesthetics, the new Fusion FM-S10SW Flush Mount
Marine Subwoofer delivers high-quality bass to your vessel
in a sleek and minimalistic form factor to meet the latest boat
design trends. Featuring an intelligent mounting system for
non-intrusive, easy installation, the FM Series subwoofers are
designed to be flush-mounted with a mounting flange no thicker than
3mm [1/8″] for a premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine accreditation and an
industry-leading 3-year warranty, you can enjoy peace of mind that
your FM Series subwoofer is built to last onboard season after
season.

Versatile 2.1 design
Designed to add low frequencies to your audio system, the FM Series
subwoofer features versatility in wiring options, providing
different ways to integrate one into your audio entertainment
setup. This can simplify installation, reduce system cost, and is
an easy way to add bass.

Wire your subwoofer traditionally into your system through an
amplifier, or alternatively create a 2.1 audio zone by connecting
two speakers and a subwoofer directly to a Fusion multi-zone stereo
with DSP, without the need to use an external amplifier. Simply
connect a pair of speakers to the zone 1 speaker connections, and
the FM Series subwoofer to the left and right speaker connections
of zone 2, then select the applicable DSP profile for setup.

Enhanced design aesthetics
The FM Series have been purposely created to meet the latest boat
design trends with a sleek and minimalistic design. By
incorporating a timeless, classic grille styling, the FM Series
will complement the aesthetics of any vessel with its enhanced
design cues.

Innovative flush mount design
The innovative, flush-mount design of the FM Series subwoofers
allows for an ultra-low profile installation (mounting profile no
greater than 3mm or 1/8″) for a visually appealing, premium
near-flat finish never before seen on a marine subwoofer.

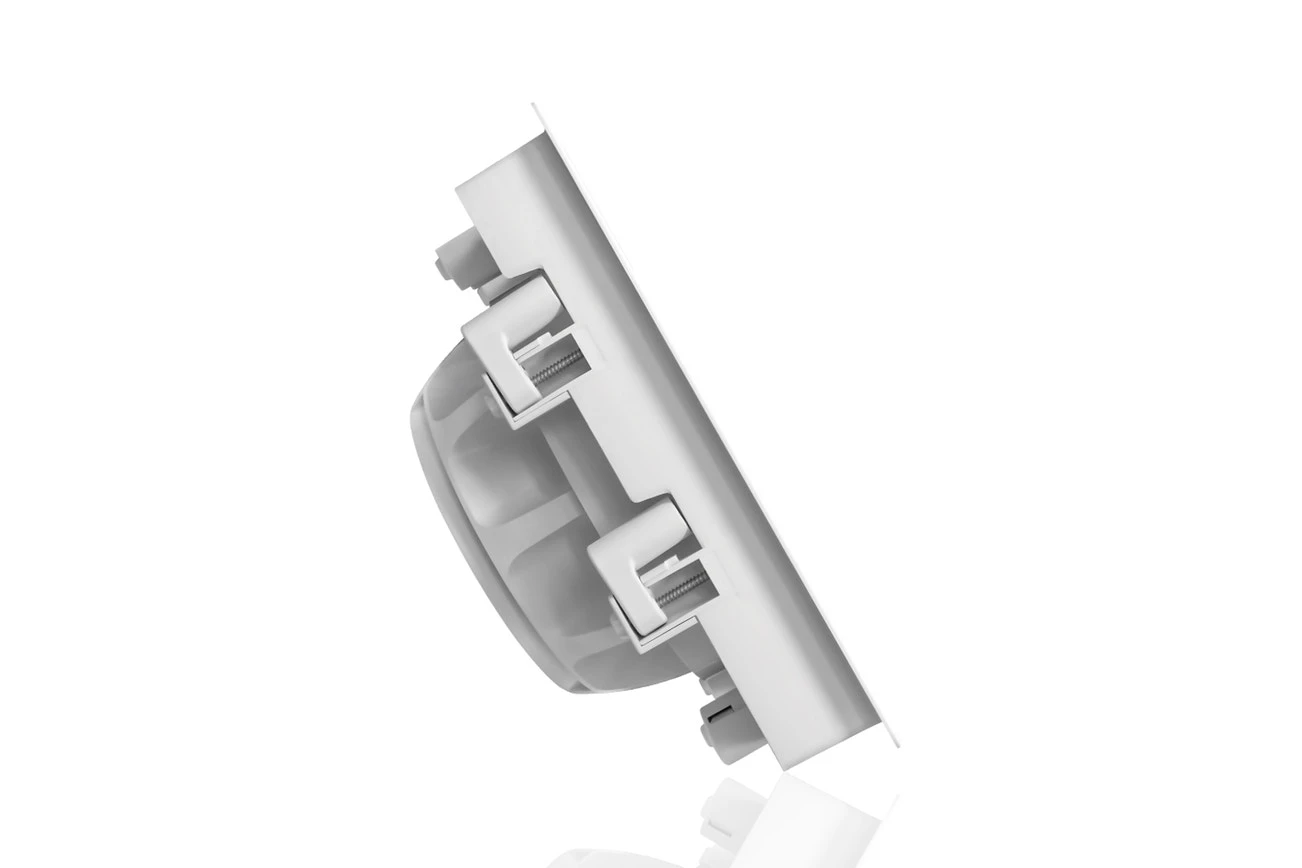

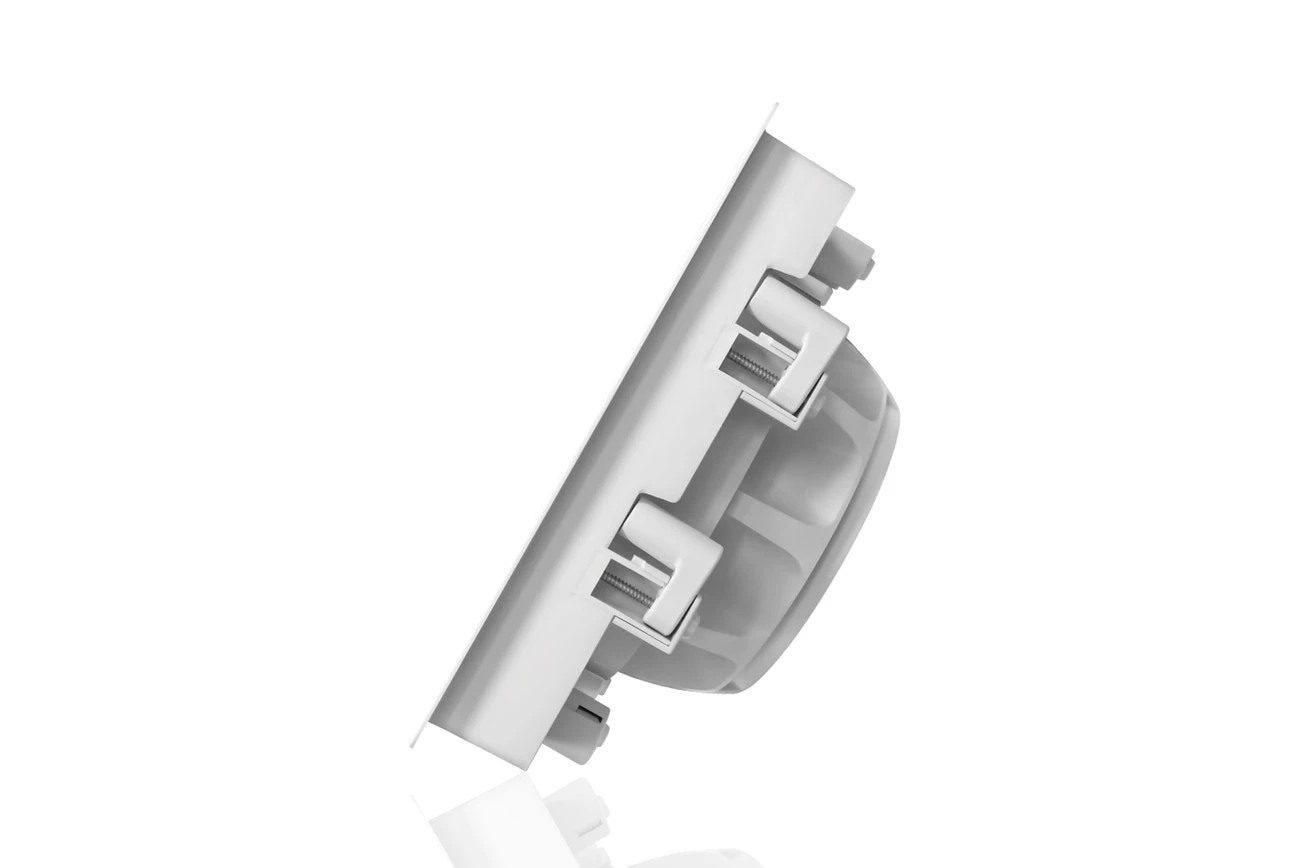

The FM Series also features an intelligent mounting system for a
non-intrusive, simple installation. Simply place the subwoofer in
the cutout, tighten the screws and the ‘speaker legs’ will tighten
against the panel, keeping the subwoofer in place without creating
any screw holes to your vessel.

Fusion FM-S10SW Flush Mount Marine Subwoofer
Features:

• Optimised 2.1 Configuration: when connected with a pair of FM
  Series speakers and a Fusion Multi-Zone stereo with DSP, you have
  the option of creating a 2.1 audio zone to simplify installation
  and reduce system cost by adding bass without the need for an
  external amplifier
• Quality Audio Reproduction: enjoy quality low frequency audio
  at any volume level
• Innovative Design Aesthetics: designed with a low profile,
  near-flat installation for a visually appealing finish, the FM
  Series will complement the aesthetics of any vessel
• Non-Intrusive Mounting System: the FM Series uses ‘speaker
  legs’ that keep the subwoofer in place without creating any screw
  holes to your vessel
• True-Marine Designed and Engineered: extensively tested to
  perform in the harsh marine environment, the FM Series carry an
  IP65 weatherproof rating along with True-Marine
  accreditation
• Designed To Comply With ISO12216: tested to international
  standards for pressure and watertightness, it recognises the FM
  Series are designed and built to the highest industry standards for
  quality and robustness

Fusion FM-S10SW Flush Mount Marine Subwoofer
Specifications:

• Subwoofer Size: 10″
• Peak Power: 400 Watts
• RMS Power Rating: 120 Watts
• Efficiency (1W/1M): 87 dB
• Frequency Response: 30 Hz – 2 kHz
• Nominal Impedance: 4 Ohms
• Recommended Amplifier Power (RMS): 40 – 300 W/Ch
• Cone / Surround Material: Polypropylene with rubber
  surround
• Mounting Diameter Clearance: 269mm x 269mm [10-9/16″ x
  10-9/16″]
• Mounting Depth Clearance: 140mm [5-1/2″]
• Optimum Enclosure Volume (Sealed enclosure, fully filled with
  absorption material): 40L
• Operating Temperature Range: 0 to 50°C (32 to 122°F)
• Storage Temperature Range: -20 to 70°C (-4 to 158°F)
• Water and Dust Resistance (IPX rating): IP65
• Warranty: 3 years
• Colour: White
