Fusion Marine MS-AV755 Entertainment Package With 2 Pairs Speakers

Complete and ready to go

Get yourself a complete marine audio setup in one purchase. The
Fusion Marine MS-AV755 Entertainment Package comes
with the new MS-AV755 head unit with UNI-Dock and 2 pairs of
MS-FR6021 6″ speakers. Yup, 2 pairs!

Package Includes:

• 1x Fusion Marine MS-AV755 Entertainment System with DVD/CD
  Player
• 4x Fusion MS-FR6021 6″ True Marine 2-way Waterproof Speaker
  200W

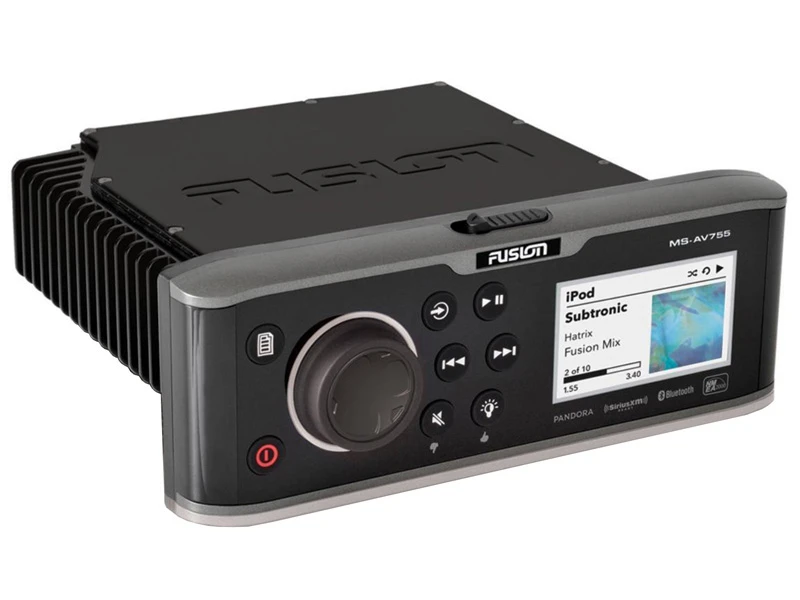

The Head Unit
The Fusion Marine MS-AV755 Entertainment System with DVD/CD
Player is part of the world-class Fusion 755 Marine
Entertainment Series, the pinnacle of marine audio engineering,
which delivers unparalleled sound performance and media
integration.

The Fusion Marine MS-AV755 Entertainment System with DVD/CD
Player features DVD/CD playback with electronic shock
protection, hdmi connection and support for the latest Apple iOS,
MTP Windows/Android and USB media devices, including Bluetooth
A2DP/AVRCP audio streaming capabilities, and support for advanced
Fusion-Link™ NMEA 2000/Ethernet/Wi-Fi/Bluetooth connectivity.

The Fusion Marine MS-AV755 Entertainment System with DVD/CD
Player is the next generation in marine entertainment
systems and is well worth the investment.

Marine-Ready DVD Player
Play your favorite DVD or CD in the comfort of your cabin. An hdmi
connector is utilized for easy ‘plug-and-play’ compatibility with
any supported TV or monitor, with ARC functionality to stream audio
from the connected television to the FUSION stereo.

Fusion-Link Control (Wired)
Direct stereo control from a compatible Multi-Function Display
(MFD) or NRX series wired remote control is available when
utilizing an existing NMEA 2000 or Ethernet network. Visit
www.fusion-link.com for compatible MFDs.

Fusion-Link Control (Wireless)
Download the FREE Apple or Android Fusion-Link remote control app
from the Apple® App Store or Google Play™ Store to control your
on-board entertainment experience from a compatible Apple or
Android device. Wireless Fusion-Link control is available over
Bluetooth and Wi-Fi® (Note: Wi-Fi control requires a wireless
Ethernet router). Fusion-Link Lite is available for download from
the Garmin Connect IQ Store to enable wireless control via ANT
technology from your compatible Garmin watch.

A2DP/AVRCP Bluetooth Streaming
Stream your family’s favorite soundtrack from any compatible
device, with track, album and artist info displayed, with
navigation available from the stereo or connected device.

Apple iOS and MTP Android / Windows Media Playback
Unparalleled support of the world’s most popular media devices, and
the smartest interface for browsing your music library.

Multi-Zone Technology
Four independent audio zones are available, each with advanced
localized menu controls, including zone naming. Note: Line Out
zones require additional amplification.

Optically Bonded LCD
The color widescreen LCD display is optically bonded to improve
durability and is optimized for daylight viewing.

Side-Fin Cooling
Amplifier components are optimally configured for the side-fin
aluminium heat sink, producing greater thermal efficiency.

Glass Filled Composite Chassis
Structurally rigid and incredibly lightweight, this improves
environmental protection and electrically isolates the chassis for
complete reliability.

Class-D Amplifier
Provides higher RMS output than a standard stereo, for louder and
clearer audio while drawing less current.

True-Marine Designed and Engineered
The Fusion Marine MS-AV755 Entertainment System with DVD/CD
Player has been extensively tested to perform in the harsh
marine environment and is a True Marine product. Once a product has
been subject to rigorous environmental testing and passed our
stringent True Marine approval process, it is awarded the
accreditation and recognized with an industry-leading 3 year
consumer warranty

The Speakers
The Fusion MS-FR6021 True Marine 2-way Waterproof
Speakers are designed and engineered specifically for the
harsh outdoors. Including design innovations and materials that not
only produce great sound, but also ensure a sustained
high-performance level during prolonged exposure to the elements.
Incorporating the latest German ‘CURV’ cone technology and titanium
tweeter dome for clear, powerful sound. ‘CURV’ technology
incorporates a woven fibre composite which is heat pressed to form
a lighter and stronger cone. This creates greater sound definition,
higher output and greater resistance to the outdoor elements.

True-Marine Designed and Engineered
Extensively tested to perform in the harsh marine environment.

IP65 water resistant design
Rated IP65 water resistant and complies with international
standards for UV stability and salt/fog resistance. Features a
fully sealed cross-over, magnet and tweeter housing with water
resistant cone and surround.

Efficient Design
Designed to operate efficiently, saving power through reducing
battery drain.

Magnetic Shielding
Magnetic interference is something that all installers take into
consideration when installing marine electronics. FUSION
understands this, and has added a bucking magnet at the rear of the
speaker motor assembly to reduce interference that can occur with
compasses or compass-based electronics.

Fusion Marine MS-AV755 Entertainment System with DVD/CD
Player Specifications:

• Tuner: AM/FM with RDS where available
• Tuner Region: USA – Australasia – Europe – Japan
• Multi-Language User Interface: English, French, German,
  Spanish, Dutch, Italian
• Peak Power: 280W Max (at 2 Ω)
• Amplifier: Class-D: 4 x 26 W rms at 14.1Vdc input, 4Ω, ≤ 10%
  THD+N. 4 x 43 W rms at 14.4Vdc input, 2 Ω, ≤ 10% THD+N
• Audio Zones: 4 Zones (Zone 1 & 2 powered by internal amplifier)
  + 4 Line Out zones
• Nameable Zones: Yes – Up to 10 characters per zone
• Line Out: 4 (1 x L + R Per zone, all require
  amplification)
• Sub Out: 4 (1 per zone, all require amplification)
• Auxiliary Inputs: 2 x stereo RCA inputs (AUX1, AUX2)
• iPod/iPhone: Made for iPod and iPhone
• Album Art: Available via USB on supported Apple, MTP
  (Android/Windows) and USB flash drive devices
• Display: 16:9 WQVGA color widescreen optically bonded
  LCD
• NMEA 2000: NMEA 2000 Certified LEN: 1
• Fusion-Link: Compatible with NRX Series wired remote and
  supported Multi-Function Displays (MFDs) for wired control via NMEA
  2000 or Ethernet. Wireless control is available with the
  Fusion-Link remote control app, available for free download for
  compatible Apple and Android devices
• Bluetooth: A2DP audio streaming with AVRCP support (album art
  is not supported).
• USB: 1 x USB connector
• MTP (Media Transfer Protocol): Support for compatible Windows &
  Android media devices via USB
• Audio/Video/USB Format: MP3, M4A, FLAC, CDA, DVD
• DVD Playback: hdmi connector outputting standard definition
  576i for DVD playback
• CD Playback: CD/CD-R disks supported
• Water Resistance: 360° IPx5 water resistant fully sealed
  chassis
• Chassis: Electrically isolated glass-filled composite with
  aluminum heat sink
• DAB+ Ready: MS-DAB100A is required for DAB support, only
  available where DAB and DAB+ is broadcast
• Compatible Apple Devices: iPhone X, iPhone 8, iPhone 8 Plus,
  iPhone 7, iPhone 7 Plus, iPhone SE, iPhone 6s, iPhone 6s Plus,
  iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s,
  iPod Touch (5th and 6th gen)
• Android Open Accessory Compatibility: HTC One, HTC M9, LG Nexus
  4, Nokia Lumia 920, Nokia Lumia 930, Samsung Galaxy S3, Samsung
  Galaxy S4, Samsung Galaxy S5, Samsung Galaxy S6, Samsung Galaxy S6
  Edge, Sony Experia Z, Sony Xperia Z3

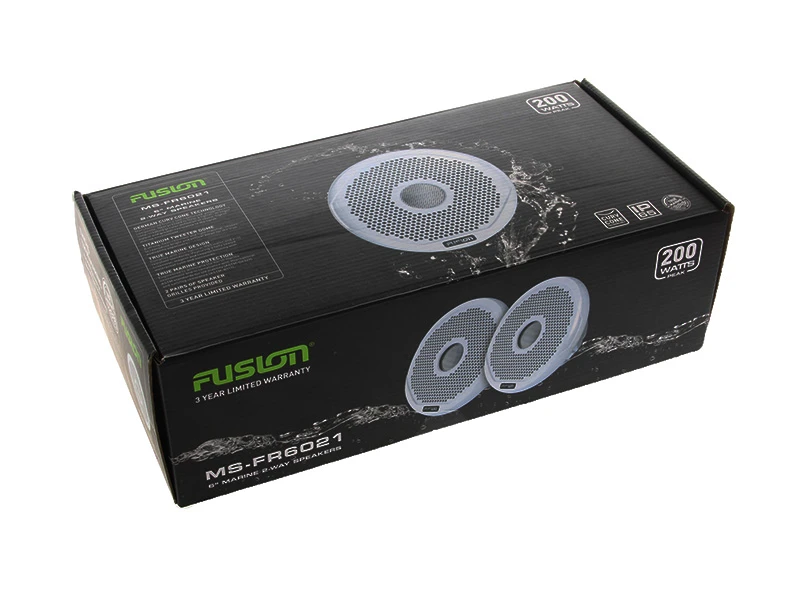

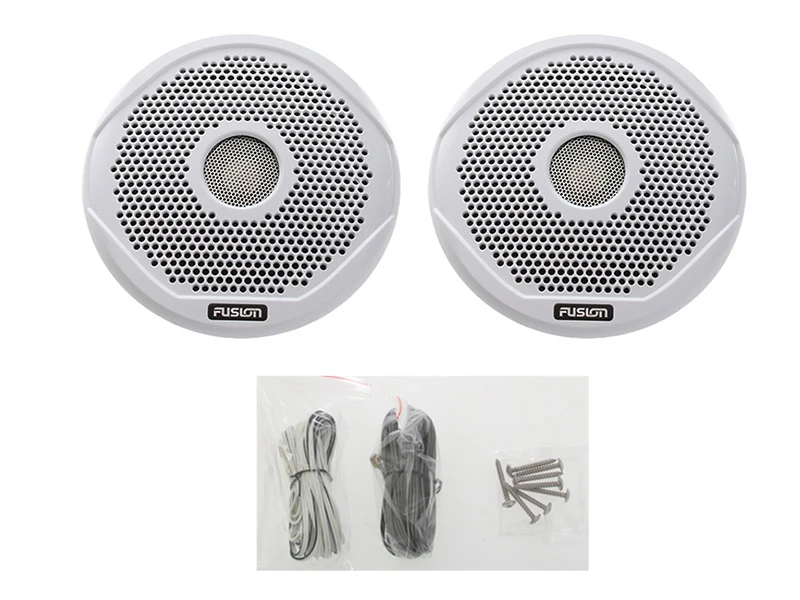

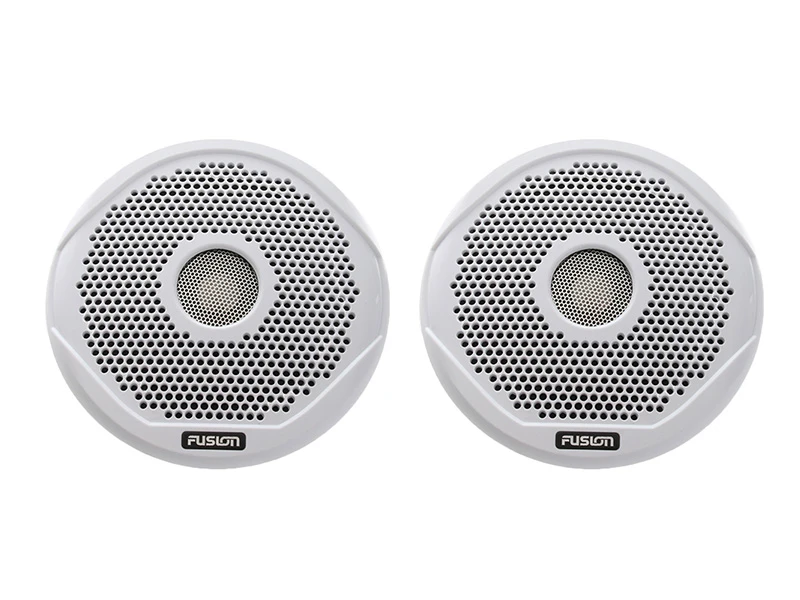

Fusion MS-FR6021 6” True Marine 2-way Waterproof Speakers
200W Features:

• True Marine designed and engineered
• IP65 water-resistant design
• Efficient design
• Two grille options
• Magnetic shielding

Fusion MS-FR6021 6” True Marine 2-Way Waterproof Speakers
Pair 200W Specifications:

• Peak Power (Watts): 200
• Frequency Response: 70Hz – 22kHz
• Impedance: 4 Ohm
• Efficiency (1W/1M): 90dB
• Tweeter Type: Titanium Dome
• Mounting Depth: 71.5mm (2-13/16”)
• Mounting Dimensions (Clearance): 130.5mm (5-1/8”)

Note: As with the installation of any
device with a magnetic field on a vessel, compass accuracy should
be checked after installation.

Fusion Marine MS-AV755 Entertainment System with DVD/CD Player
Owner’s Manual
Fusion MS-FR6021 6” True Marine 2-way Waterproof
Speakers 200W Owner’s Manual
