Fusion Marine MS-BB300R Black Box Package With 2 Speakers

Complete and ready to go

Get yourself a complete marine audio setup in one purchase! The
Fusion Marine MS-BB300R Black Box Package comes
with the MS-BB300R Black Box Unit, wired remote and a pair of
MS-FR6021 6″ speakers.

Package Includes:

• Fusion Marine MS-BB300R Black Box
• MS-NRX300 Wired Remote Control
• 2x Fusion MS-FR6021 6″ True Marine 2-way Waterproof Speaker
  200W

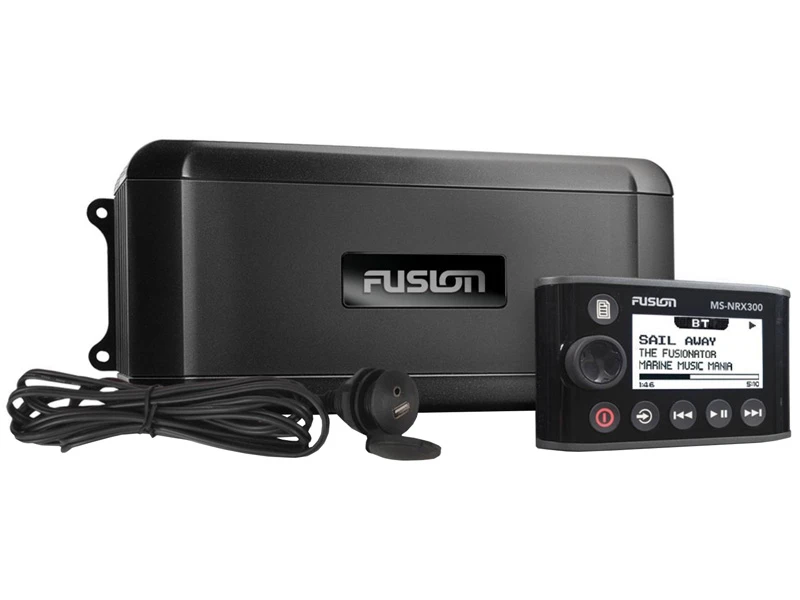

The Blackbox Unit
When space is premium at the helm, a compact entertainment solution
is needed to blend performance and subtlety. There’s no room for
compromise, because every boat needs a Fusion beat. Introducing the
fully featured Fusion Marine MS-BB300R Black Box,
with Fusion-Link via NMEA 2000 control, Bluetooth audio streaming
and Multi-Zone technology. A true ‘plug and play’ compact
entertainment powerhouse, the MS-BB300R is compatible with the
world’s leading Multi-Function Displays for intuitive True-Marine
audio playback and easy, total control. The MS-BB300R is an elegant
solution for when there’s limited space at the helm.

An MS-NRX300 Wired Remote Control is included for intuitive system
navigation, featuring a large LCD display and easy scroll rotary
encoder, for a familiar Fusion True-Marine experience. Also
included is a combined 3.5mm and USB auxiliary panel mount
connector for easy integration of supported devices.

Apple iOS and MTP Android/Windows media playback
Unparalleled support of the world’s most popular media devices and
the smartest interface for browsing your music library.

A2DP Bluetooth wireless technology
Stream your family’s favourite soundtrack from any compatible
device with track, album and artist info displayed, with navigation
available from the MS-NRX300 wired remote or your connected
device.

Fusion-Link control (wired)
Direct stereo control from a compatible Multi-Function Display
(MFD) or NRX Series wired remote control is available when
utilising an existing NMEA 2000 network.

Multi-Zone Technology
Three independent audio zones are available, each with localised
menu controls. Multi-Zone Technology includes functions for naming
and linking zones, disabling unused zones and setting volume
limits. Note: Zone 3 requires additional amplification.

Easy mounting
Simply place, plug and play! All mounting hardware and connection
cables are included for effortless installation. A panel mount
combined USB and 3.5mm Auxiliary connector is included for simple
integration of supported media when the MS-BB300R is mounted out of
sight. Note: connecting to an existing NMEA 2000 network requires
additional cable CAB000863).

Highly efficient heat sink
A thermal blended heat sink is integrated into the chassis side
panel for greater dispersion of heat to increase efficiency and
sustain high performance.

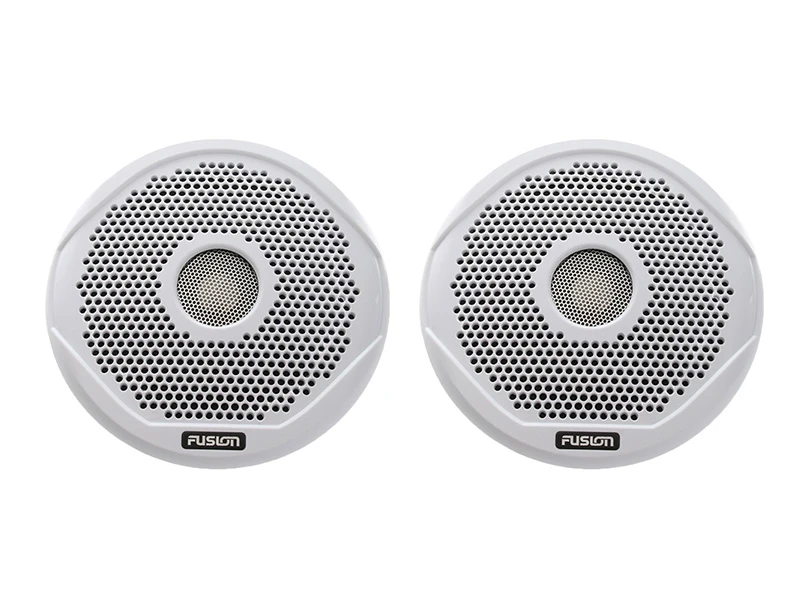

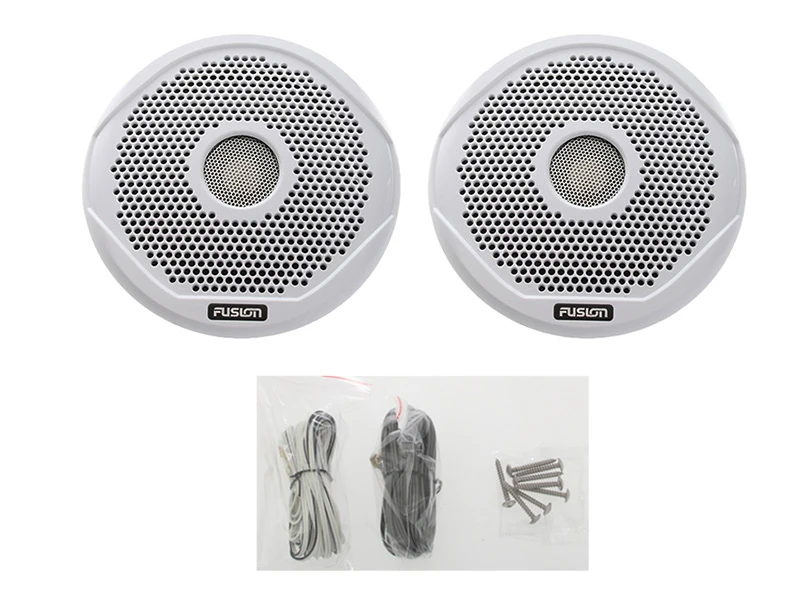

The Speakers
The Fusion MS-FR6021 True Marine 2-way Waterproof
Speakers are designed and engineered specifically for the
harsh outdoors. Including design innovations and materials that not
only produce great sound, but also ensure a sustained
high-performance level during prolonged exposure to the elements.
Incorporating the latest German ‘CURV’ cone technology and titanium
tweeter dome for clear, powerful sound. ‘CURV’ technology
incorporates a woven fibre composite which is heat pressed to form
a lighter and stronger cone. This creates greater sound definition,
higher output and greater resistance to the outdoor elements.

True-Marine Designed and Engineered
Extensively tested to perform in the harsh marine environment.

IP65 water resistant design
Rated IP65 water resistant and complies with international
standards for UV stability and salt/fog resistance. Features a
fully sealed cross-over, magnet and tweeter housing with water
resistant cone and surround.

Efficient Design
Designed to operate efficiently, saving power through reducing
battery drain.

Magnetic Shielding
Magnetic interference is something that all installers take into
consideration when installing marine electronics. FUSION
understands this, and has added a bucking magnet at the rear of the
speaker motor assembly to reduce interference that can occur with
compasses or compass-based electronics.

Note: As with the installation of any
device with a magnetic field on a vessel, compass accuracy should
be checked after installation.

Fusion Marine MS-BB300R Black Box Features:

• Fusion-Link via NMEA 2000 control, Bluetooth audio streaming
  and Multi-Zone technology
• MS-NRX300 Wired Remote Control included for intuitive system
  navigation
• Large LCD display
• Easy scroll rotary encoder
• Combined 3.5mm and USB auxiliary panel mount connector for easy
  integration of supported devices
• Apple iOS and MTP Android/Windows media playback
• A2DP Bluetooth wireless technology
• Fusion-Link control (wired)
• Multi-Zone Technology
• Easy mounting
• Highly efficient heat sink

Fusion Marine MS-BB300R Black Box
Specifications:

• Tuner: AM/FM with RDS
• Audio Zones: 3 Zones (Zone 1 + 2 are powered by internal
  amplifier, zone 3 requires additional amplification)
• Nameable Zones: Yes
• Line Out: 1 (1 x L + R Zone 3, requires amplification)
• Sub Out: 1 (Linked to zone 3 line out and requires
  amplification)
• Auxiliary Input: 2 Stereo inputs (AUX1 and AUX2)
• iPod / iPhone: Made for iPod and iPhone
• F.A.S.T: FUSION Alpha Search Technology included
• Display: MS-NRX300 required for display (included) or
  compatible Fusion-Link partnered Multi-Function Display (not
  included) connected to an existing NMEA 2000 network (CAB000863
  cable required – sold separately)
• NMEA 2000: NMEA 2000 Certified LEN: 1
• Fusion-Link: Wired Fusion-Link control is available on a
  compatible Multi-Function Display (MFD) on a NMEA 2000 network.
  Note: An additional cable (CAB000863 non-powered NMEA cable) is
  required for NMEA 2000 installation (sold separately)
• Audio Track Formats (MTP & USB): MP3, M4A and FLAC
• Bluetooth Wireless Technology: A2DP audio streaming with AVRCP
  support
• Water Resistance: IPX7 water resistant NRX300 wired remote
  included. Black Box is rated IPX3 when correctly mounted
• Chassis: Aluminum extrusion with plastic end caps

Fusion MS-FR6021 6” True Marine 2-way Waterproof Speakers
200W Features:

• True Marine designed and engineered
• IP65 water-resistant design
• Efficient design
• Two grille options
• Magnetic shielding

Fusion MS-FR6021 6” True Marine 2-Way Waterproof Speakers
Pair 200W Specifications:

• Peak Power (Watts): 200
• Frequency Response: 70Hz – 22kHz
• Impedance: 4 Ohm
• Efficiency (1W/1M): 90dB
• Tweeter Type: Titanium Dome
• Mounting Depth: 71.5mm (2-13/16”)
• Mounting Dimensions (Clearance): 130.5mm (5-1/8”)

Fusion MS-FR6021 6” True Marine 2-way Waterproof
Speakers 200W Owner’s Manual
