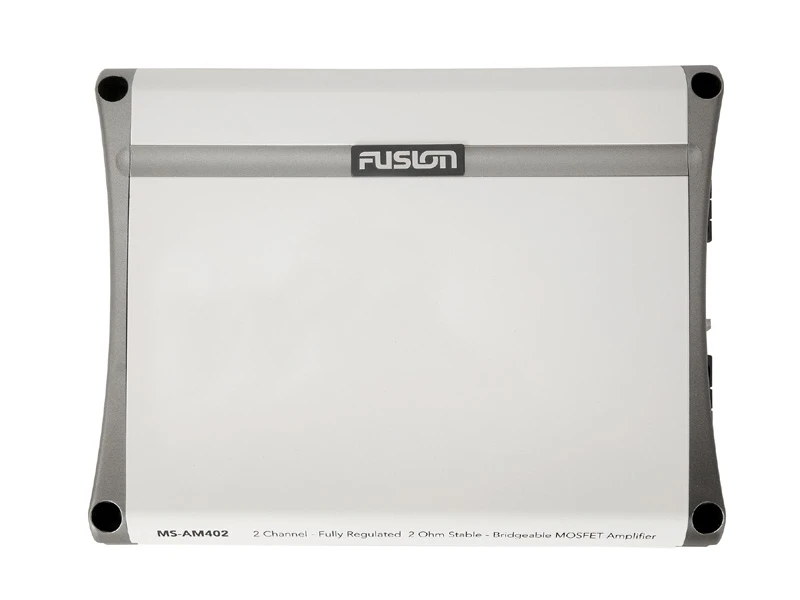

Fusion MS-AM402 Marine Amplifier 400W

Rock out even in tough weather!

Nothing beats a great day out in the water than enjoying it with
good music. Give more oomph to your marine speakers by adding the
Fusion MS-AM402 Marine Amplifier to your audio
system. It’s made for the harsh marine environment so you can enjoy
music even in tough weather conditions. This 2-channel amplifier is
capable of powering 2 speakers, a sub (bridged) or 4 speakers in
parallel.

The 400 Watt 2-Ohm stable (per channel) design ensures clean and
powerful amplification of the input signal, provide enough to rock
the boat. Its Marine Grade Chassis is made with stainless steel end
caps and bottom provides a stunning finish with added environmental
protection. Heat sink technology transfers heat more efficiently
and offer more thermal stability for maximum component
reliability.

Incorporating heat-tempered and conformal coated PCBs for maximum
product life, and gold-plated connectors for improved signal flow,
the MS-AM402 reproduces clean and powerful audio with enough power
to rock the boat.

The Fusion MS-AM402 Marine Amplifier 400W is the
perfect complement to any Fusion marine stereo system.

Fusion MS-AM402 Marine Amplifier Features:

• Marine-grade chassis ensures toughness and durability
• Heat sink technology transfers heat more efficiently
• 400 watt peak, 2-Ohm stable (per channel) design ensures clean,
  powerful amplification
• Conformal coated circuitry for protection from salt air and
  moisture
• RCA Line Out – RCA output enables linking of multiple
  amplifiers
• 2 Channels – Power up to 2 subwoofers and a pair of
  speakers
• Class-AB amplifier: power efficient with less cross-over
  distortion
• Conformal coated PCBs : water resistant protection from salt
  air and moisture
• FUTRANZ heat sink technology: transfers heat more efficiently
  and provides more thermal stability with maximum component
  reliability
• F.R.A.T (Fusion Regulated Amplifier Technology): provides
  enormous power output at low voltage.
• F.I.S.T (Fusion Intercooled Semi-Conductor Technology): clams
  down internal power switching to rapidly remove heat from all
  associated semi-conductors
• 1 year limited Consumer Warranty

Fusion MS-AM402 Marine Amplifier Specifications:

• Amplifier Class: Class-AB
• Rated Power (2 Ohms): 100 Watts RMS x 2 @ 14.4V – 2 Ohms 1%
  THD
• Rated Power (4 Ohms Bridged): 200 Watts RMS x 1 @ 14.4V – 4
  Ohms Bridged 1% THD
• Frequency Response: 5Hz – 38kHz +/- 3dB
• Peak Power: 400 Watts
• Rated Power (4 Ohms): 65 Watts RMS x 2 @ 14.4V – 4 Ohms 1%
  THD
• Mounting Dimensions (Depth x H x L): 229 x 53 x 296mm (9 x 2-1/16 x 11-/2/3in)
