Fusion MS-AV650 Marine CD/DVD Entertainment Package With Speaker

Complete and ready to go

Get yourself a complete marine audio setup in one purchase! The
Fusion MS-AV650 Marine CD/DVD Entertainment
Package comes with the new MS-AV650 CD/DVD Head Unit and a
pair of MS-FR6021 6″ speakers.

Package Includes:

• 1x Fusion MS-AV650 Marine Entertainment System with CD/DVD
  Player

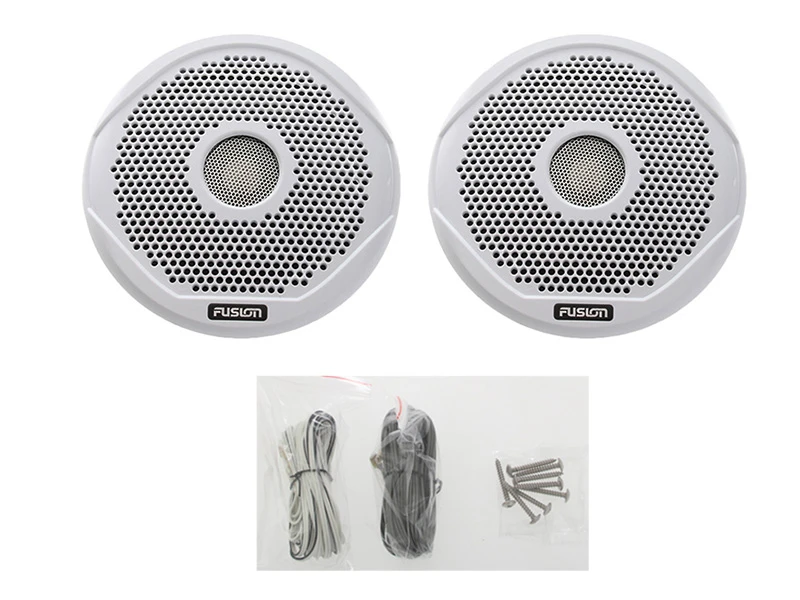

• 2x Fusion MS-FR6021 6″ True Marine 2-way Waterproof Speaker
  200W

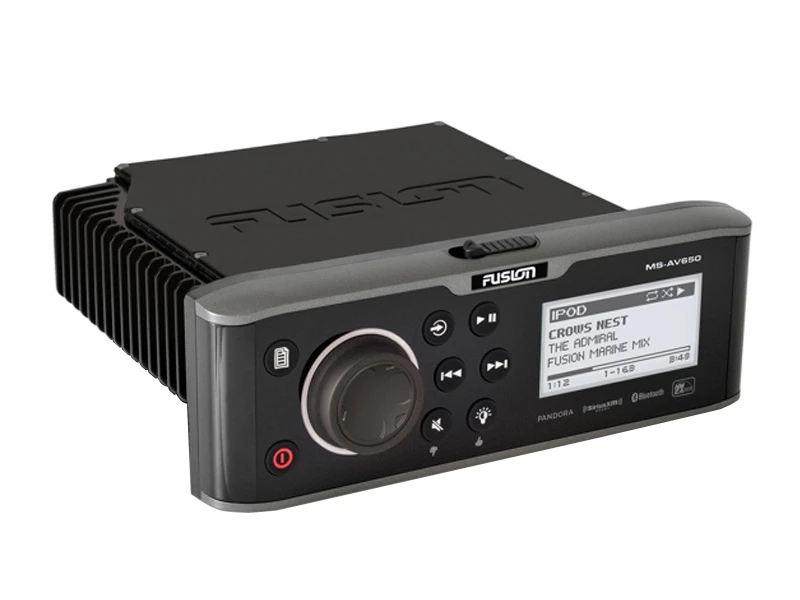

The Head Unit
With the constant evolution of entertainment technologies, Fusion
continues to dominate the forefront of the sector, pioneering
integrated systems for your favourite media devices. Introducing
the Fusion MS-AV650 Marine Entertainment System.
Boasting electronic shock protection, superior playback of the
latest Apple iOS and MTP Android/Windows media devices will please
any technophile and Bluetooth A2DP audio streaming capabilities,
Pandora radio and Fusion-Link NMEA 2000 connectivity make the 650
series an all-in-one, purpose-built solution for entertaining on
the high seas.

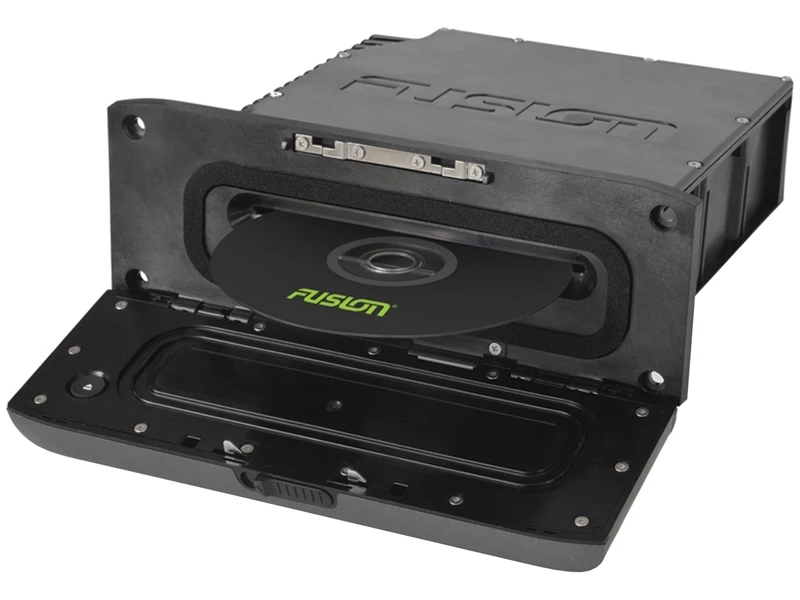

Marine-Ready DVD Player
Play your favourite DVD movies in the comfort of your cabin.

Fusion-Link Control (Wired)
Enables direct stereo control from a compatible Multi-Function
Display (MFD) or MS-NRX200i wired remote control when utilising an
existing NMEA 2000 network.

Fusion-Link Control (Wireless)
Download the FREE Apple or Android FUSION-Link remote control app
from iTunes or Google Play to control the onboard entertainment
experience via Bluetooth.

A2DP/AVRCP Bluetooth Streaming
Stream your family’s favourite soundtrack from any compatible
device, with track, album and artist info displayed, with
navigation available from the stereo or connected device.

Apple iOS and MTP Android/Windows Media Playback
Unparalleled support of the world’s most popular media devices and
the smartest interface for browsing your music library.

Multi-Zone Technology
Three independent audio zones are available, each with advanced
localised menu controls, including zone naming.
Note: Line Out Zones require additional amplification.

Optically Bonded LCD
A widescreen LCD display, optically bonded to improve durability
and optimised for daylight viewing.

Class-D Amplifier
Provides higher RMS output than a standard stereo, for louder and
clearer audio while drawing less current.

Side-Fin Cooling
Amplifier components are optimally configured for the side-fin
aluminium heat sink, producing greater thermal efficiency.

Glass Filled Composite Chassis
Structurally rigid and incredibly lightweight, this improves
environmental protection and electrically isolates the chassis for
complete reliability.

True-Marine Designed and Engineered
Extensively tested to perform in the harsh marine environment.

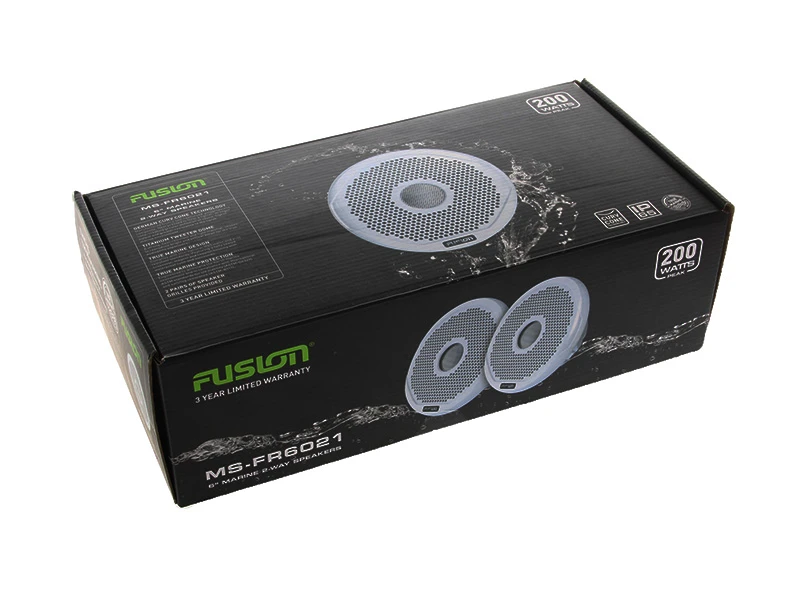

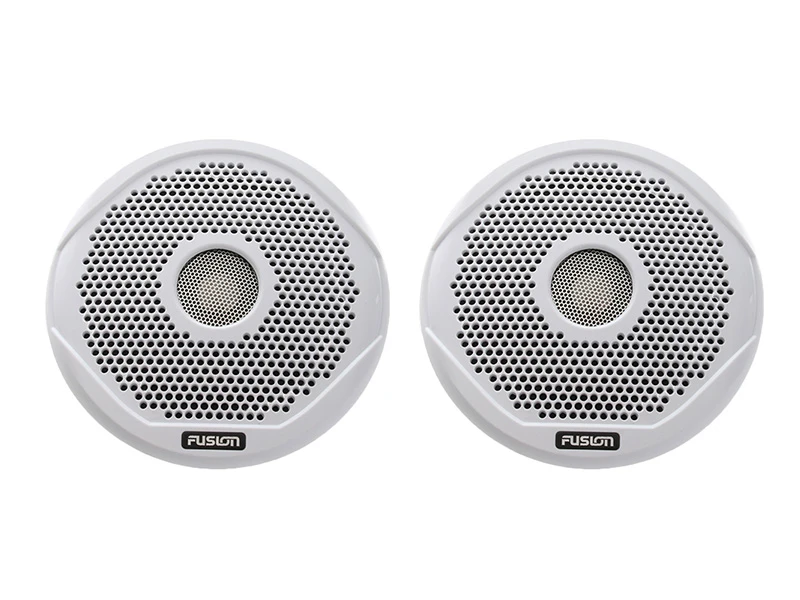

The Speakers
The Fusion MS-FR6021 True Marine 2-way Waterproof
Speakers are designed and engineered specifically for the
harsh outdoors. Including design innovations and materials that not
only produce great sound, but also ensure a sustained
high-performance level during prolonged exposure to the elements.
Incorporating the latest German ‘CURV’ cone technology and titanium
tweeter dome for clear, powerful sound. ‘CURV’ technology
incorporates a woven fibre composite which is heat pressed to form
a lighter and stronger cone. This creates greater sound definition,
higher output and greater resistance to the outdoor elements.

True-Marine Designed and Engineered
Extensively tested to perform in the harsh marine environment.

IP65 water resistant design
Rated IP65 water resistant and complies with international
standards for UV stability and salt/fog resistance. Features a
fully sealed cross-over, magnet and tweeter housing with water
resistant cone and surround.

Efficient Design
Designed to operate efficiently, saving power through reducing
battery drain.

Magnetic Shielding
Magnetic interference is something that all installers take into
consideration when installing marine electronics. FUSION
understands this, and has added a bucking magnet at the rear of the
speaker motor assembly to reduce interference that can occur with
compasses or compass-based electronics.

Note: As with the installation of any
device with a magnetic field on a vessel, compass accuracy should
be checked after installation.

Fusion MS-AV650 Marine Entertainment System
Features:

• Marine-Ready DVD Player
• Fusion-Link Control (Wired and Wireless)
• A2DP/AVRCP Bluetooth Streaming
• Apple iOS and MTP Android/Windows Media Playback
• Optically Bonded LCD
• Class-D Amplifier
• Side-Fin Cooling
• Glass Filled Composite Chassis
• True-Marine Designed and Engineered

Fusion MS-AV650 Marine Entertainment System
Specifications:

• Amplifier: Class-D 4 x 70W (@ 2 Ω)
• Audio Format: MP3, M4A, FLAC, CDA, DVD
• Audio Zones: 3 Zones (Zone 1 & 2 powered by internal
  amplifier)
• Auxiliary: 2 stereo inputs
• Bluetooth: A2DP Audio Streaming with AVRCP Support and
  FUSION-Link remote control
• CD Playback: CD/CD-R disks supported
• Chassis: Glass Filled Composite with Aluminum Heat
  Sink
• Display: 128 x 64 Mono Chrome Optically Bonded LCD
• DVD Playback: DVD Playback with composite and component video
  connections
• Fusion-Link: NMEA 2000 visit:
  www.fusionentertainment.com/fusionlink for compatible
  Multi-Function Displays (MFD) Bluetooth Remote control via Apple or
  A
• iPod/iPhone: Made for iPod and iPhone (1 A charging)
• Line Out: 3 (1 x L + R per zone, all require
  amplification)
• MTP: Support for compatible Windows & Android media devices via
  USB
• Nameable Zones: Yes
• NMEA 2000: NMEA 2000 Certified LEN: 1
• Sub Out: 3 (1 per zone)
• Tuner: AM/FM with RDS
• USB: 1 x USB connector
• Water Resistance: 360° IPx5 fully sealed chassis
• iPhone Compatibility: iPhone 3GS, iPhone 4, iPhone 4S, iPhone
  5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus
• iPod Compatibility: iPod Classic, iPod Nano 4th-7th generation,
  iPod Touch 2nd-5th generation
• MTP Compatibility: HTC M9, HTC One, LG Nexus 4, Nokia Lumia
  830, Nokia Lumia 920, Nokia Lumia 930, Samsung Galaxy S3, Samsung
  Galaxy S4, Samsung Galaxy S5, Samsung Galaxy S6, Samsung Galaxy S6
  Edge, Sony Xperia Z, Sony Xperia Z3

Fusion MS-FR6021 6” True Marine 2-way Waterproof Speakers
200W Features:

• True Marine designed and engineered
• IP65 water-resistant design
• Efficient design
• Two grille options
• Magnetic shielding

Fusion MS-FR6021 6” True Marine 2-Way Waterproof Speakers
Pair 200W Specifications:

• Peak Power (Watts): 200
• Frequency Response: 70Hz – 22kHz
• Impedance: 4 Ohm
• Efficiency (1W/1M): 90dB
• Tweeter Type: Titanium Dome
• Mounting Depth: 71.5mm (2-13/16”)
• Mounting Dimensions (Clearance): 130.5mm (5-1/8”)

Fusion MS-FR6021 6” True Marine 2-way Waterproof
Speakers 200W Owner’s Manual
