Fusion MS-BB100 Marine Black Box Entertainment Package With 6” Speakers

Have a blast!

The Fusion MS-BB100 Marine Black Box Entertainment System
Package turns your multifunction display into stereo head
unit via NMEA 2000 interface connection. This package comes with
the black box unit, a bluetooth remote plus a pair of 6″ speakers.
Get your complete audio setup in one package! Order yours
today.

Package includes:

• Fusion MS-BB100 Marine Black Box Entertainment System with
  Bluetooth Remote
• 2x Fusion Marine 6inch 2-Way Speakers Shallow Mounted

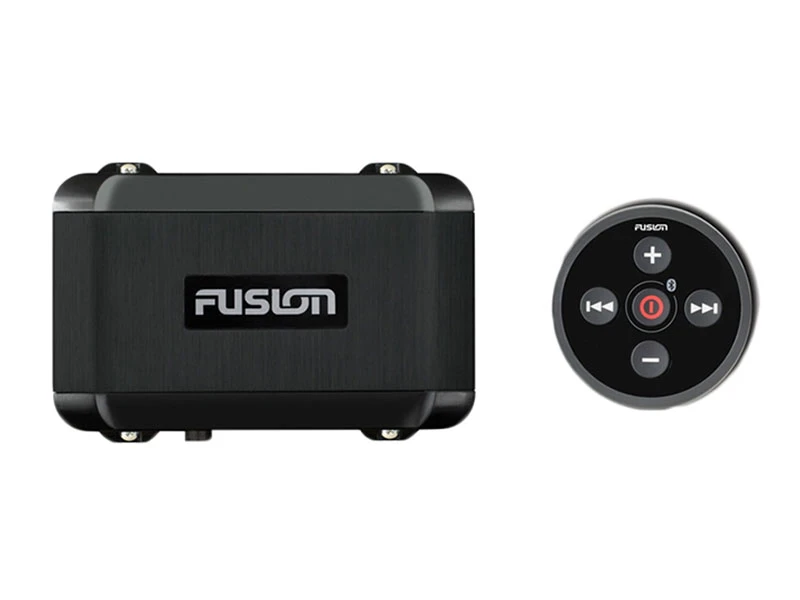

The Black Box Entertainment Unit
Check out the Fusion MS-BB100 Marine Black Box
Entertainment System with Bluetooth Remote, a compact
black box entertainment solution that incorporates the marine
industry supported FUSION-Link protocol and FUSION’s proven marine
engineering skillset to deliver a boatload of tunes. An industry
first, the BB100 includes an easy touch Bluetooth embedded IPx7
waterproof remote for quick audio adjustments. Supplied with a
2-metre (6.6ft) connection cable, the wired remote is ideally
shaped for hassle free installation onto a dash or boat console.
With the Bluetooth receiver embedded into the remote we can reduce
the likelihood of interference occurring between your smartphone
and the receiver. Engineered for either dash or flush mount
installation, you choose the finish to suit your vessel. Designed
to be tucked away out of sight, saving valuable space at the helm,
the MS-BB100 is easy to install. Simply secure, plug and play for
effortless entertainment.

Multi-Function Display control
Operating the advanced FUSION-Link wired protocol via NMEA 2000,
the BB100 will interface with any supported Multi-Function Display
for on-screen control. The newly updated FUSION-Link wireless
remote app for Apple and Android devices enables on-the-go control
of the entertainment within Bluetooth range onboard your
vessel.

Music streaming
Stream music from your favourite apps such as Pandora or Spotify,
then switch to the remote app for zone adjustments, volume control
and source selection. Supporting USB MP3 audio, Apple IAP2 and
Android AOA playback the BB100 offers the users the ability to
play, pause and skip tracks from the included wired remote, MFD or
wireless app remote.

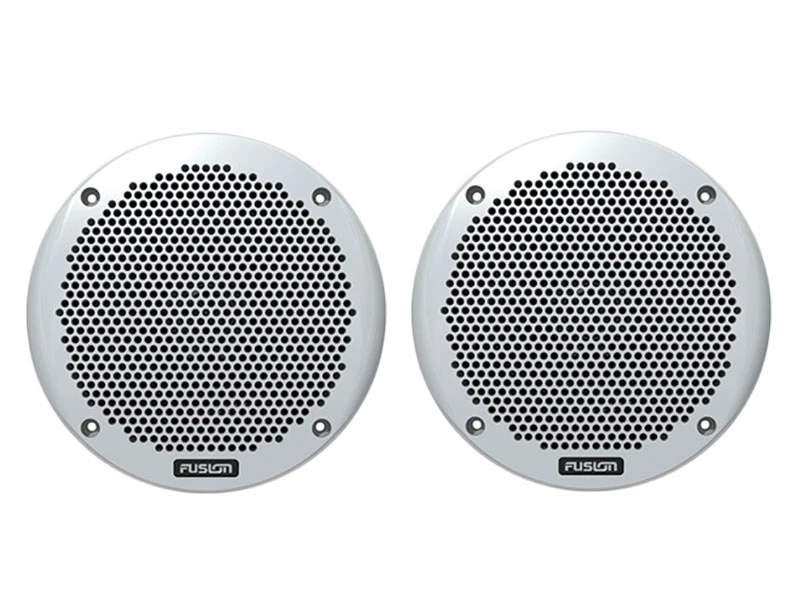

The Speakers
Enjoy music in your boat with the Fusion Marine 6inch 2-Way
Speakers. These speakers are engineered with flush profile
tweeters and a compact basket assembly. They feature a mounting
depth of only 41mm (1-5/8″) for simple and versatile installation.
The Fusion Marine 6inch 2-Way Speakers have a
water resistant design which ensures the speakers are able to
withstand exposure to the marine environment. And with a peak power
output of 150 watts, these speakers will rock your boat for as long
as you choose to ride the waves.

Fusion MS-BB100 Marine Black Box Entertainment System with
Bluetooth Remote Features:

• Small footprint Black Box design with included Bluetooth
  embedded wired remote
• A2DP Bluetooth Audio streaming with FUSION-Link app remote
  control available
• AM / FM Radio Tuner with support for DAB Radio (MS-DAB100A
  Module and Antenna Package)
• USB MP3 Playback with support for Apple iAP2 and Android AOA
  music
• IPx7 Waterproof wired remote with quick Bluetooth
  pairing
• Flush or Dash mounting remote control installation
  options
• FUSION-Link NMEA 2000 Ready for connection and control from any
  supported Multi-Function Display
• Multi-Zone Control (2 Zone System) Works with MS-NRX200i remote
  control when installed on a powered network (additional cabling
  required)

Fusion MS-BB100 Marine Black Box Entertainment System with
Bluetooth Remote Specifications:

• Amplifier: Class-AB 4 x 50W (@ 4 Ohm)
• Android Open Accessory (AOA): Android support is limited to
  devices which support AOA protocol, see supported device list for
  details
• Audio Format USB: MP3
• Audio Zones: 2 on board amplified zones
• Auxiliary Inputs: 1 x Stereo RCA Input (AUX)
• Bluetooth: A2DP Bluetooth Audio Streaming with AVRCP
• DAB+ Ready: MS-DAB100A is required for DAB support, only
  available where DAB and DAB+ is broadcast
• FUSION-Link Wired: Compatible with a FUSION NMEA 2000 wired
  remote control and any supported FUSION-Link MFD. A powered network
  is required for remote support
• FUSION-Link Wireless: Bluetooth remote control is available
  with the FUSION-Link remote control app available for download from
  iTunes or Google Play
• iPod/iPhone: Made for iPod and iPhone – supports IAP 2 protocol
  only
• Line Out: 1 x L+R Linked to Zone 1 (requires
  amplification)
• Nameable Zones: Up to 10 characters
• NMEA 2000 Certified: LEN:1
• Subwoofer Out: 1 x Sub Out Linked to Zone 1 (requires
  amplification)
• Tuner: AM/FM with RDS (where available)
• Tuner Region: USA, Australasia, Europe and Japan
• USB: 1 x USB connector at the rear of the unit, supports 1 amp
  charging
• Water Resistance: IPx7 waterproof Remote from the front panel
  when correctly mounted. Black Box is rated IPx3

Fusion Marine 6inch Speakers 2-Way Shallow
Features:

• Shallow mount design – Flush profile tweeters and a compact
  basket assembly for simple installation
• mounting depth of only 41mm (1-5/8″) for simple and versatile
  installation
• Water resistant construction
• Engineered for the marine environment, able to withstand
  exposure to the elements

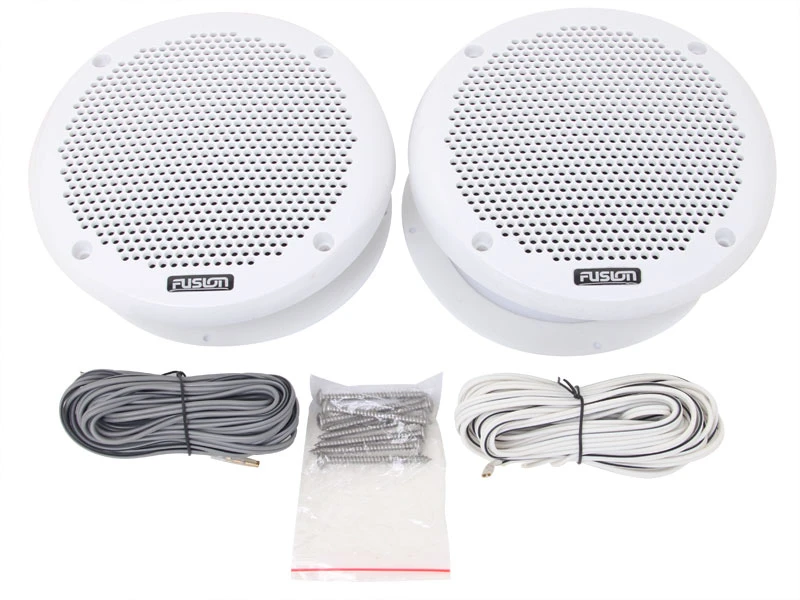

• What’s in box: 2s speakers, 2x cables, mounting screws

Fusion Marine 6inch Speakers 2-Way Shallow Mounted
Specifications:

• Mounting Depth: 41mm (1-5/8″)
• Mounting Diameter: 130mm (5-1/8″)
• Cone Material: Polypropylene
• Efficiency (1W/1M): 85dB
• Frequency Response: 60Hz – 22kHz
• Impedance: 4 Ohm
• Peak Power: 150 Watts
• Woofer Size: 6″
• Tweeter Type: PEI
