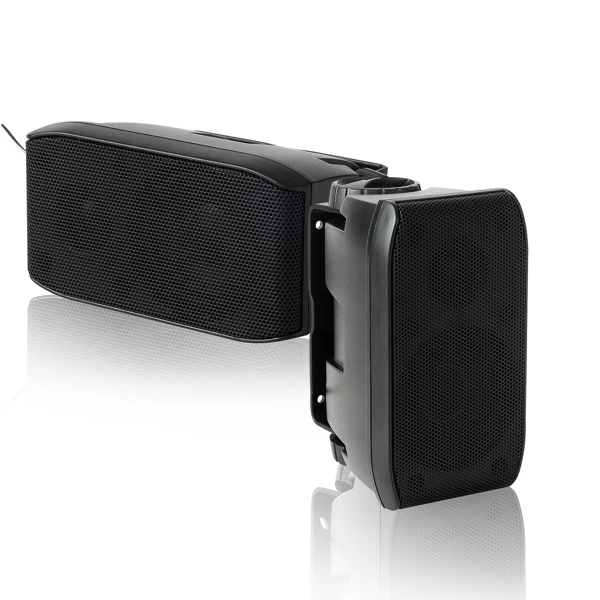

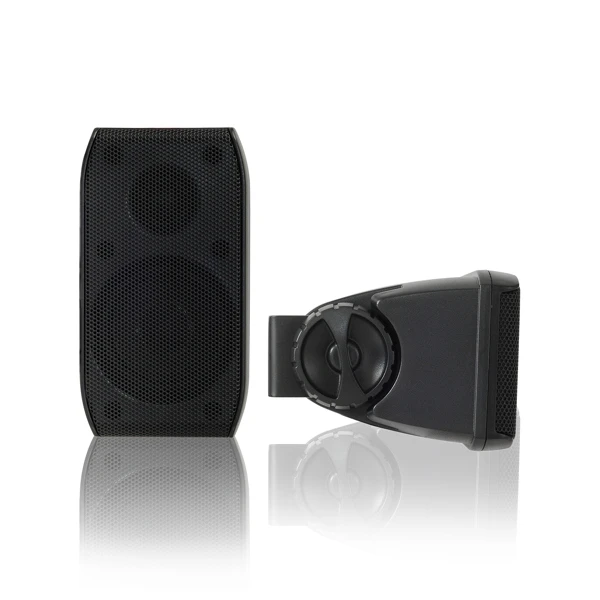

Fusion MS-BX3020 2-Way Cabin Speakers 3in 100W

Rock your boat

Introducing high-end audio for the marine cabin environment, the
Fusion MS-BX3020 2-Way Cabin Speakers are designed
for exceptional sound in any vessel. The FUSION Signature Series
represents the highest quality purpose-built marine cabin speakers
from FUSION. Carefully designed and manufactured for the marine
environment, whist maintaining superb sound quality. It features a
3″ Mid speaker, with a waterproof paper cone and a fluid cooled
fabric dome tweeter. These speakers are constructed with a magnet
system that produces high efficiency from a small box.

Compact Optimised Acoustic Chamber
Acoustically optimised to deliver home theatre-quality
entertainment in your home away from home, the internally shaped
acoustic chamber reduces reflective effects for superb sound
quality.

Sophisticated Internal Crossover Network
The MS-BX3020 speakers feature a sophisticated internal crossover
network and high quality cone construction with added low frequency
protection to avoid damage.

Waterproof Paper Cone
Features a waterproof paper cone for high efficiency and the best
presentation of sound, making the MS-BX3020 perfect for the marine
cabin environment.

Fabric Dome Tweeters
The magnetic fluid cooled fabric dome tweeter includes resonance
control to consistently produce premium, clear audio in the cabin
environment.

Installation Kit Included
Everything needed to connect your MS-BX3020 speakers is included in
the box.

Fusion MS-BX3020 2-Way Cabin Speakers
Features:

• Waterproof Paper Cone – A high efficiency cone for the best
  presentation of sound
• Sophisticated Internal Crossover – Added low frequency
  protection to avoid damage
• Compact Optimised Acoustic Chamber – Internally shaped to
  reduce reflective effects
• Fabric Dome Tweeters – Magnetic fluid cooling and resonance
  control

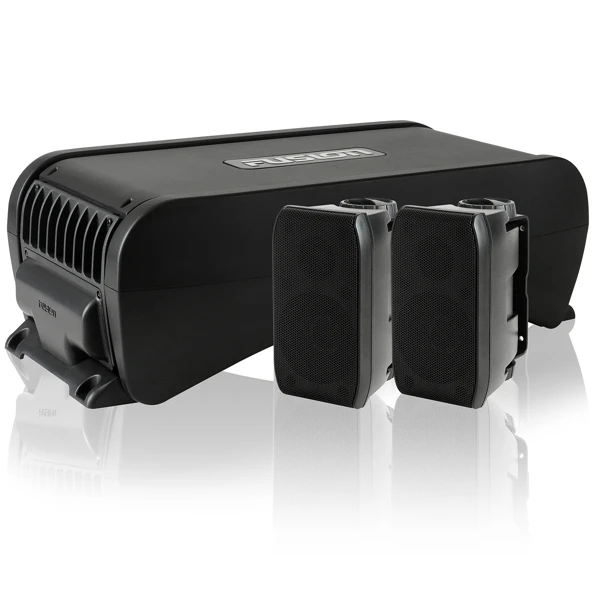

• Tuned for the MS-AB206 – Creating a unbeatable home theatre
  experience on the open sea (MS-AB206 sold separately)
• True Marine Design – Designed and engineered in New Zealand for
  internal use on your vessel

Fusion MS-BX3020 2-Way Cabin Speakers
Specifications:

• Depth: 112mm (4-13/32″)
• Length: 164mm (6-15/32″)
• Width: 90mm (3-17/32″)
• Box Type: Sealed ABS
• Cone Material: Waterproof Paper
• Efficiency (1W/1M): 85dB
• Frequency Response: 200Hz – 20kHz
• Impedance: 4 Ohms

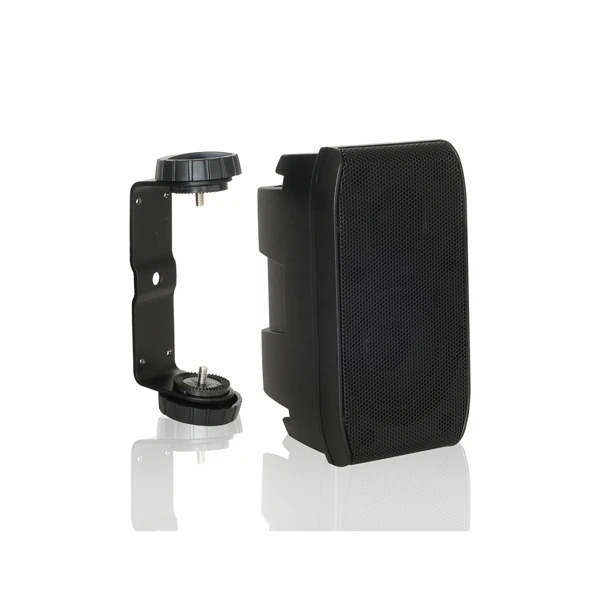

• Mounting: Adjustable wall bracket supplied
• Peak Power Rating: 100 Watts
• RMS Power Rating: 26 Watts
• Woofer Size: 3 Inch
