Fusion MS-RA205 Marine Stereo Package With Bluetooth And 6in Speakers

Rock your boat

Turn up the music and rock your boat. Introducing the
Fusion RA205 with 6in Speakers and Bluetooth – the
most compact and cost-effective marine stereo set ever made. It’s
precisely engineered, loaded with amazing features and comes with
speakers and Bluetooth. Now you can start a party and rock your
boat as you ride the waves.

The Stereo

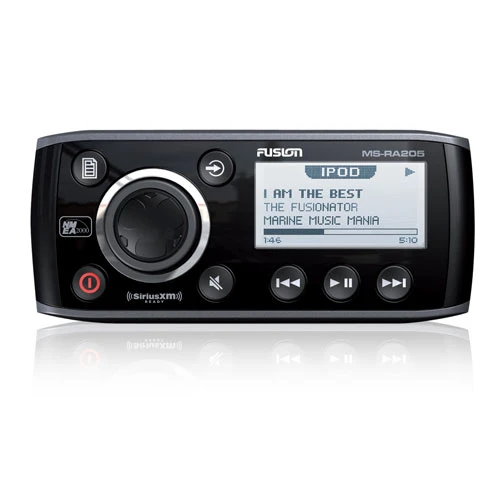

The next-generation Fusion MS-RA205 True Marine Stereo is an
impressive palm-size marine stereo that delivers powerful, clear
and dynamic sound. It features Fusion’s industry-leading user
interface for ease of use. It’s also USB-compatible and has an
AM/FM tuner and VHF receiver. Plus, it’s compatible with
Fusion-Link NMEA 2000 Multi-Function displays; turn your displays
into the entertainment control centre when connected to the Fusion
MS-RA205.

Powered by the advanced ARM-9 Processor, the MS-RA205 offers quick
and intuitive audio control. Fusion’s iPod interface allows
navigation of the iPod menu structure and offers selection of songs
by artist, song, playlist, album, genre or composer. This ‘True
Marine’ product is the perfect solution for the trailer boat and
discreet or space-conscious installation.

NMEA 2000 Certified
Connect directly onto an existing network (MS-N2KCONN kit is
required for NMEA 2000 connectivity) and communicate with
Fusion-Link certified marine electronics and Fusion MS-NRX200 wired
remote controls.

Fusion-Link
Certified NMEA 200 Multi-function displays (MFD) can connect to and
interface with the MS-RA205 over the NMEA 2000 network. Once
connected the MFD becomes the control centre for the entire
vessel.

VHF Receiver
Adjustable squelch, channel scan and user pre-sets are
available.

Multi-Zone Technology
Multi-Zone Technology offers fully adjustable volume control in all
zones of the vessel. Have loud music in the cockpit & quieter music
in the saloon. Zones are nameable for added convenience (e.g. Zone
1 can be named ‘Helm”). For localised zone control, install up to
two MS-NRX200 wired remote controls. In instances when the
MS-NRX200 is installed onto a NMEA 2000 network the remote can be
configured to display user selectable data from other NMEA 2000
products connected to the same network (e.g. Depth or Speed over
water).

The Speakers
Enjoy music in your boat with the Fusion Marine 6inch 2-Way
Speakers. These speakers are engineered with flush profile tweeters
and a compact basket assembly. They feature a mounting depth of
only 41mm (1-5/8″) for simple and versatile installation. The
Fusion Marine 6inch 2-Way Speakers have a water-resistant design
which ensures the speakers are able to withstand exposure to the
marine environment. And, with a peak power output of 150 watts,
these speakers will rock your boat for as long as you choose to
ride the waves.

The Receiver

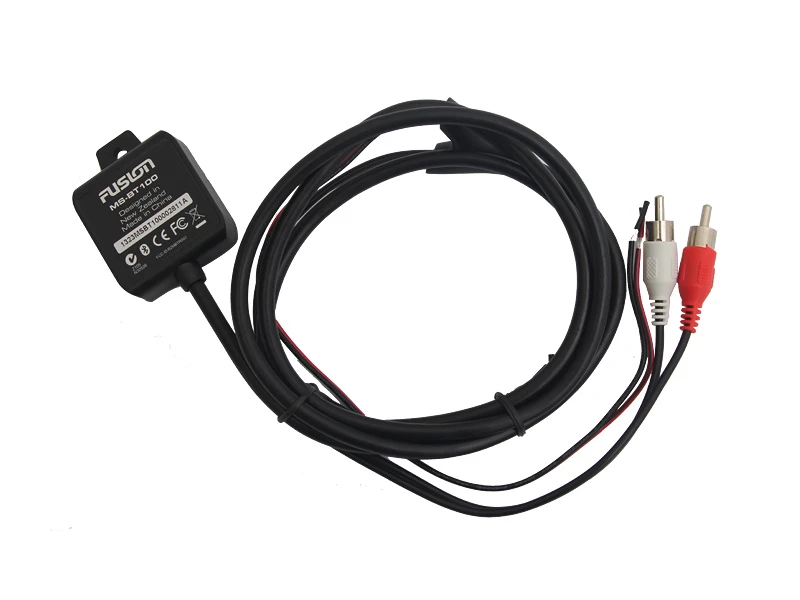

The Fusion Bluetooth Receiver lets you stream music to your stereo
while keeping your Smartphone close at hand. Whether you’re using
an Android, Apple, Windows, or other device, you can listen to your
personal playlist from anywhere on your boat. Simply connect it to
your Fusion Marine stereo with an Auxiliary input RCA connector for
instant Bluetooth functionality. Plus, its IP65 waterproof rating
ensures that it’s safe from the elements. Now you can enjoy
uninterrupted audio streaming without having to return to the
stereo to change tracks.

Direct Media Device Control
This feature allows you to quickly and easily select tracks, album,
artist or playlist from your device while you’re on-the-go around
your vessel. Listen to some relaxing tunes while you’re heading out
to sea. Wouldn’t that be nice?

Integrated Marine Voltage Protection
Enjoy uninterrupted audio listening pleasure! The Fusion Bluetooth
Receiver is engineered specifically to manage fluctuating current
or voltage spikes.

Fusion MS-RA205 True Marine Stereo with USB and VHF
Receiver Features:

• Compatible FUSION-Link NMEA 2000 Multi-Function
  displays
• NMEA 2000-certified
• IPx5 water-resistant standards, on the front of the unit when
  correctly bulk head mounted
• Innovative Multi-Zone technology
• User-friendly
• Fully integrated iPod user interface
• Superior die-cast construction; engineered to withstand the
  harsh marine environment including salt spray, humidity and
  pounding seas
• Large backlit LCD with adjustable brightness allows for
  accurate display
• VHF receiver for on-water weather & coastguard update

Fusion Marine Speakers 2-Way Shallow Features:

• Shallow mount design – Flush profile tweeters and a compact
  basket assembly for simple installation
• Mounting depth of only 41mm (1-5/8″) for simple and versatile
  installation
• Water-resistant construction
• Engineered for the marine environment, able to withstand
  exposure to the elements

Fusion Bluetooth Receiver Aux In Features:

• Direct media device control
• Integrated marine voltage protection
• Compatible with: MS-CD80, MS-RA50, MS-IP600, MS-AV600,
  MS-CD600, MS-RA200, MS-RA205, MS-IP700, MS-AV700, MS-IP700i,
  MS-AV700i, CA-CD700 and CA-ML600

Fusion MS-RA205 True Marine Stereo with USB and VHF
Receiver Specifications:

• Auxiliary in: Yes
• Line Out: 1 x stereo, 1 x subwoofer
• Power: 50 Watts x 4 (max)
• Display: Dot matrix LCD
• Media: AM / FM Tuner, VHF Receiver, USB, AUX
• Fusion-Link: NMEA 2000 Connectivity Only
• Chassis dimensions : 93mm (depth) x 127mm (width) x 52mm
  (height)
• Face plate dimensions: 29mm (depth) x 157mm (width) x 68mm
  (height)

Fusion Marine Speakers 2-Way Shallow Mounted
Specifications:

• Mounting depth: 41mm (1-5/8″)
• Mounting diameter: 130mm (5-1/8″)
• Cone material: Polypropylene
• Efficiency (1W/1M): 85dB
• Frequency response: 60Hz – 22kHz
• Impedance: 4 Ohm
• Peak Power: 150 Watts
• Woofer size: 6″
• Tweeter type: PEI

Fusion Bluetooth Receiver Aux In
Specifications:

• Cable length: 1.5m(5ft)
• Water-resistant design: IP65 enclosure
• Bluetooth: A2DP V3.0 Class 2
• Operation range: ≥ 10m(33ft)
• Dimensions: 59mm(h) x 42mm(w) x 15mm(d)
• Operating voltage: 10-16V DC
• Operating current: 20mA
• Compliances: BQB B020331, FCC, CE, C-Tick

Note: Effective Bluetooth range is
measured in a straight line. Range will differ depending on
placement of the Bluetooth module and obstructions.
