Fusion MS-RA205 Marine Stereo Package With Speakers

Small in design, big on features

The Fusion MS-RA205 Marine Stereo Package Incl
Speakers exemplifies what True Marine Stereos are all

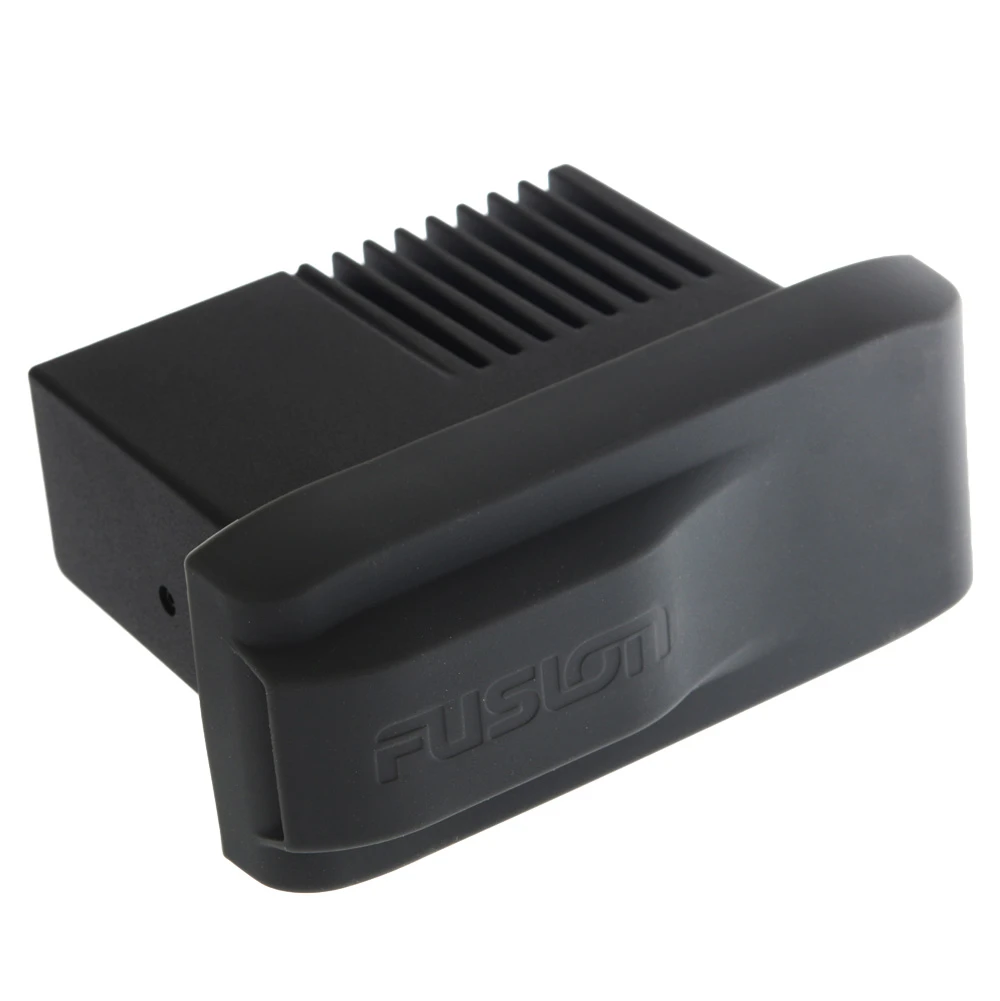

about. Engineered to withstand the harsh marine environment
including salt spray, humidity and pounding seas the MS-RA205
stereo is built in a die-cast aluminium case that completely seals
the unit to meet Fusion’s True Marine Standards. The MS-FR4021 True
Marine speakers are designed and engineered from the ground up to
incorporate state of the art studio innovation that’s never been
seen before in marine speakers.

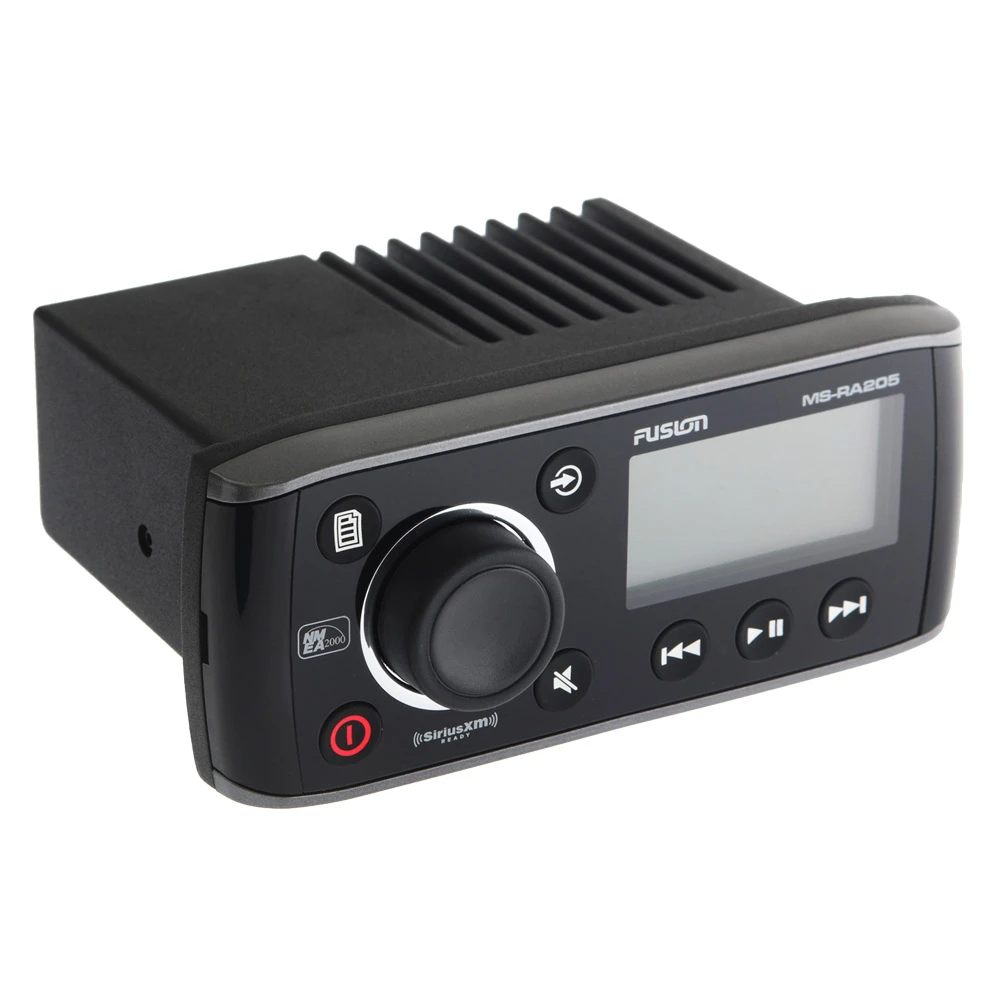

The Stereo

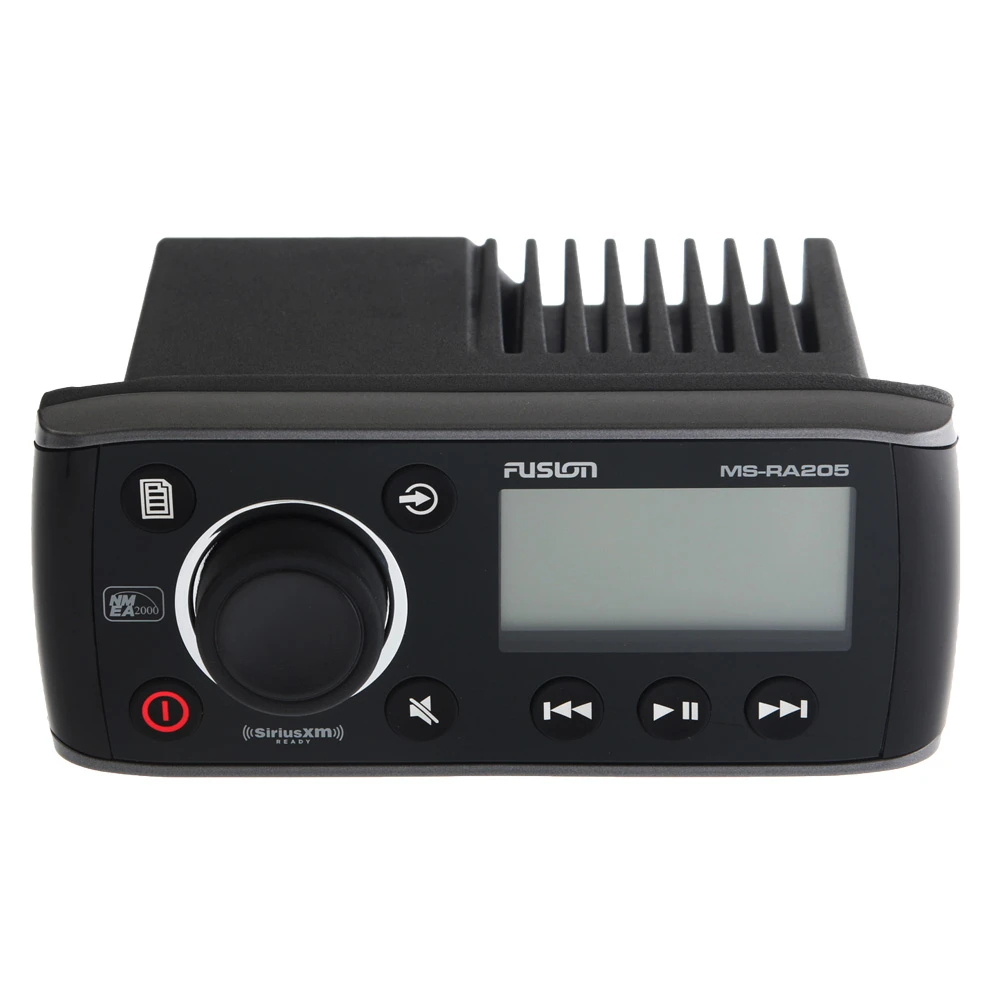

The Fusion MS-RA205 Marine Stereo with USB and VHF
Receiver is an impressive palm size marine stereo. It
features Fusion’s industry-leading user interface with an iPod and
iPhone connectivity and integration system. It is also USB
compatible and has an AM/FM tuner and VHF receiver. With a face
plate measuring a minute 6-3/16″ x 2-11/16″ (157mm x 68mm), the
compact yet feature packed Fusion MS-RA205 Marine Stereo
with USB and VHF Receiver is the perfect solution for the
trailer boat and discreet or space conscious installation.

Innovative Multi-Zone Control
Fully adjustable volume control in all zones of the vessel. Have
loud music in the cockpit & quieter music in the saloon.

User Friendly
User interface is intuitive and simple to use. The recessed backlit
keypad is large enough to view and operate in the roughest
conditions.

Superior Die-Cast Construction
Engineered to withstand the harsh marine environment including salt
spray, humidity and pounding seas.

Superior Display
Large, adjustable backlit LCD allows for accurate display of the
iPod and Sirius interface.

True Integration for iPod
Complete iPod integration and control is provided through a
replication of the iPod menu on the stereo display allowing simple
navigation and ease of use through a rotary encoder.

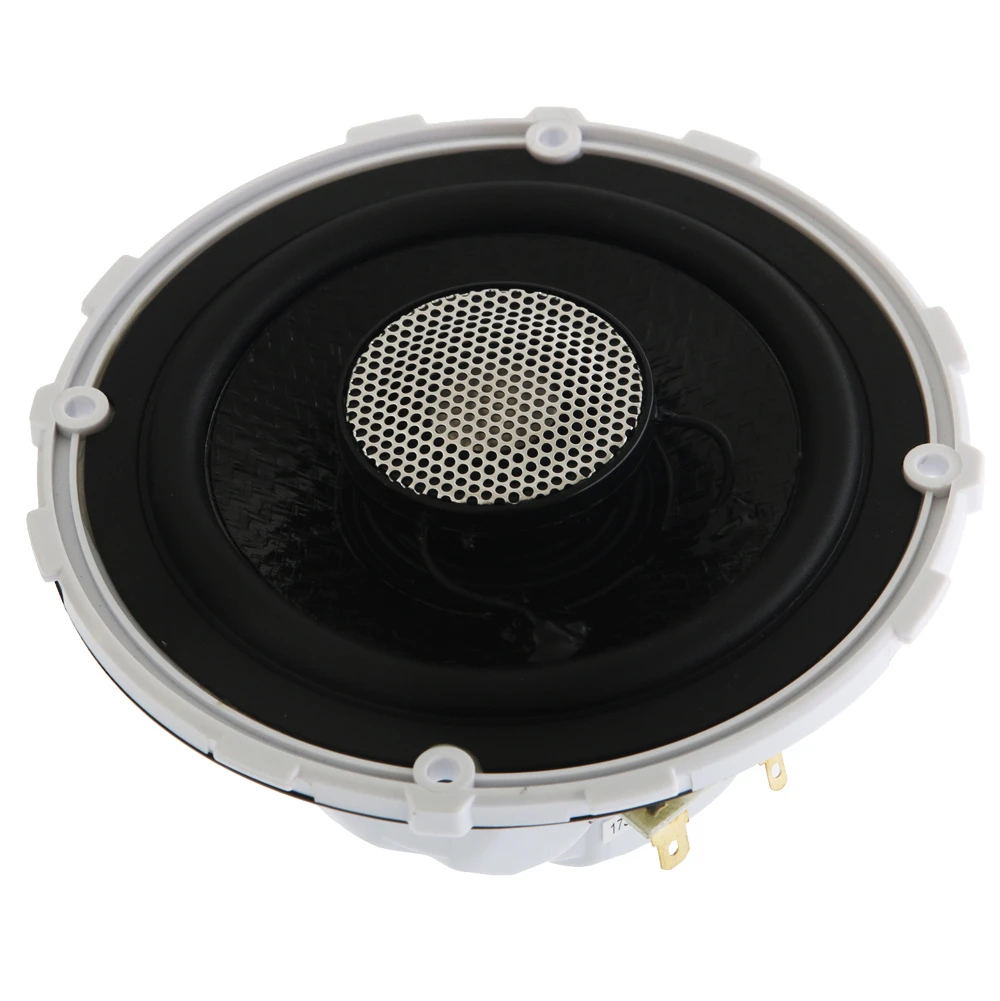

The Speakers

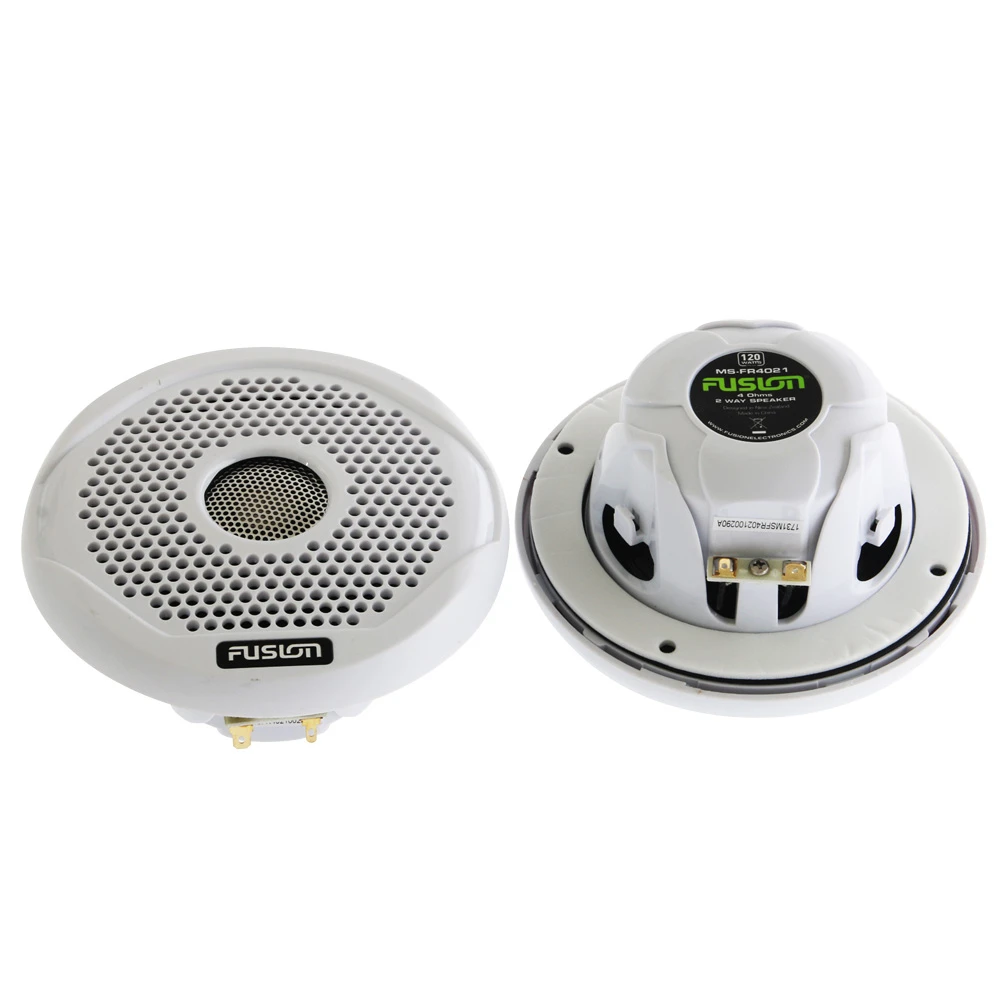

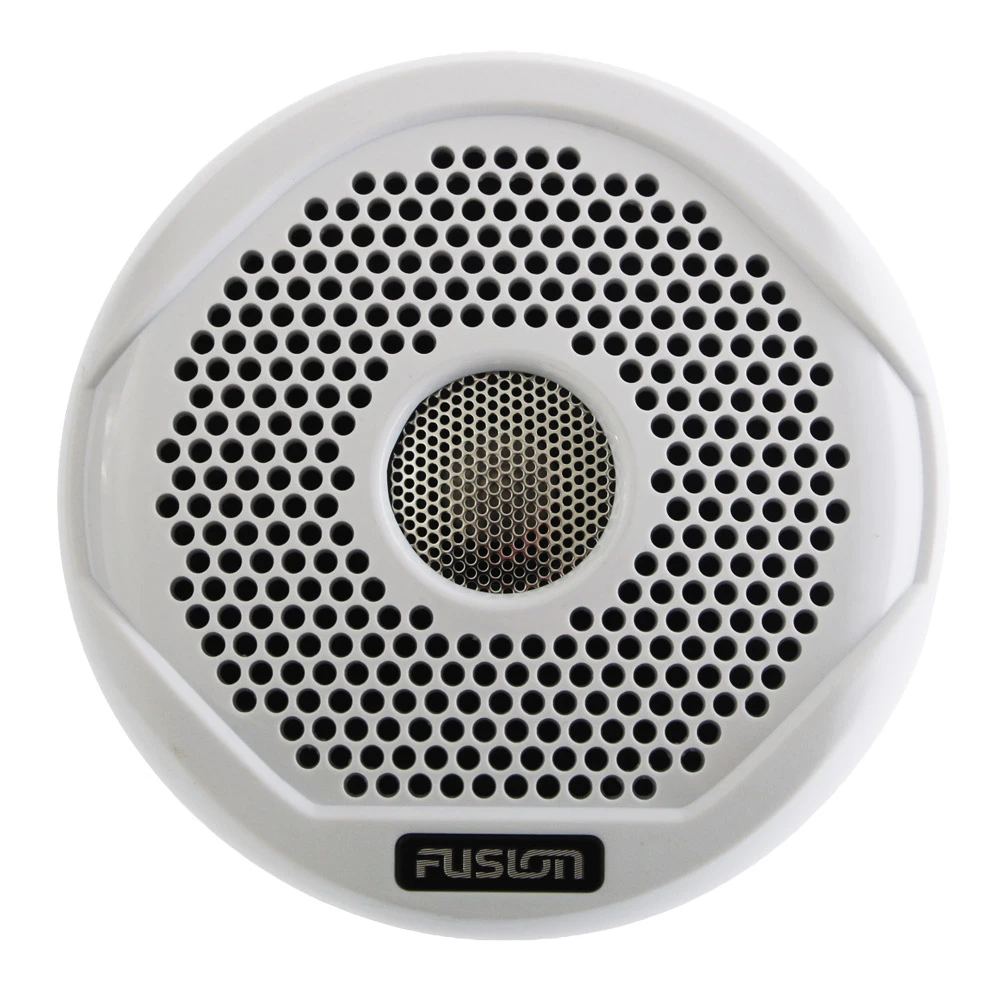

The Fusion True Marine Waterproof Speakers 4″ 120W
are designed and engineered from the ground up to incorporate state
of the art studio innovation that’s never been seen before in
marine speakers. Enjoy high quality performance with no worries.
These speakers have complied with International ASTM Standards for

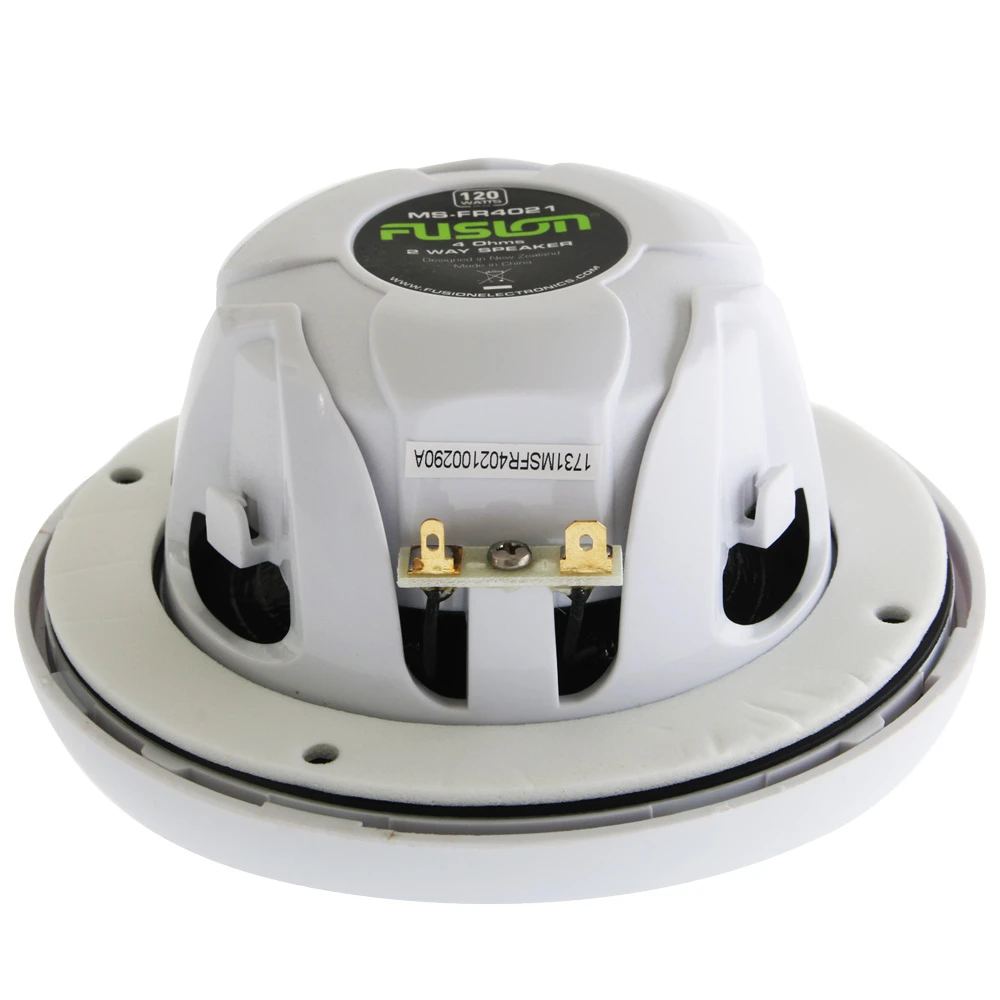

UV Stability and Salt/Fog Resistance. Thanks to the fully sealed
cross-over, magnet and tweeter housing with waterproof cone and
surrounds, you can take them with you on board and don’t have to
worry about water, salt and sand. Plus, the high efficiency design
reduces battery drain so you can enjoy your music on board
longer.

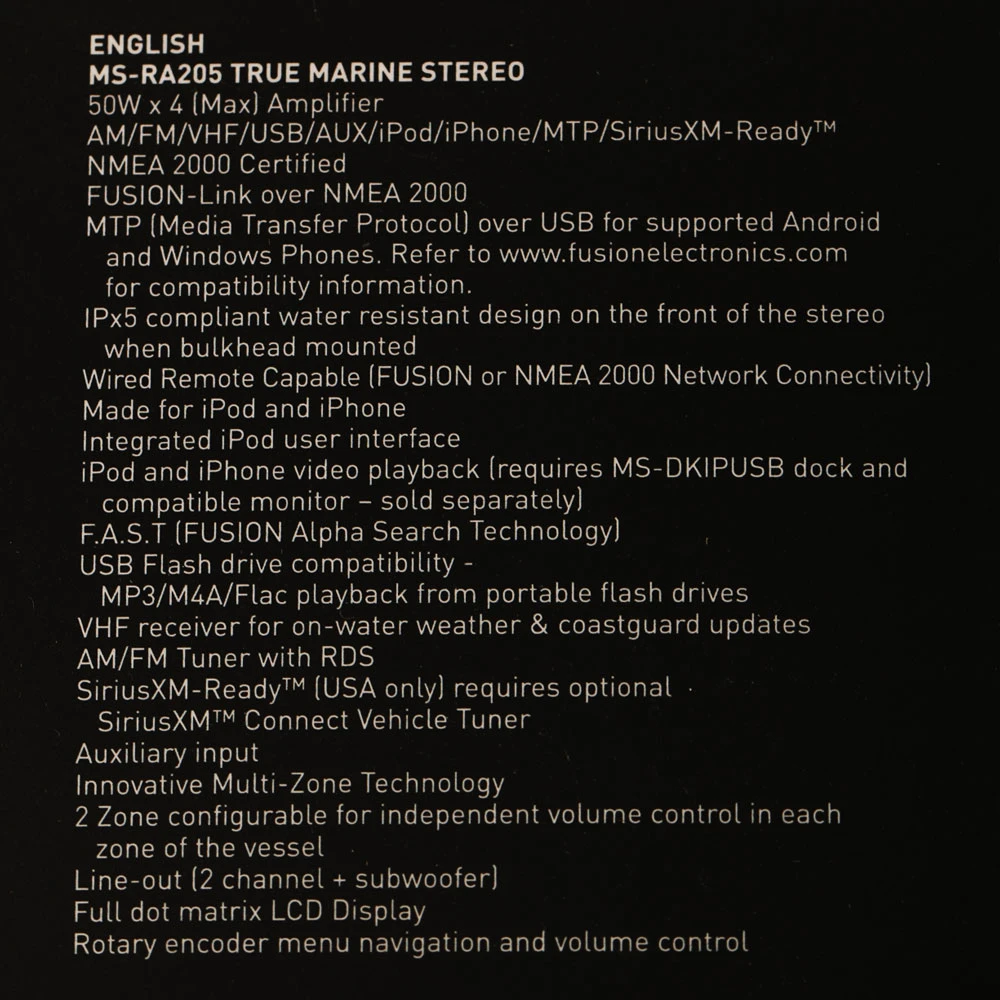

Fusion MS-RA205 Marine Stereo Features:

• Made for iPod
• Works with iPhone
• Accredited True Marine
• Fully integrated iPod user interface
• USB connectivity – MP3 playback from portable flash
  drives
• Palm size design
• High Quality AM/FM Tuner with RDS
• VHF receiver for on-water weather & coastguard update
• Dot matrix LCD display featuring variable back
  lighting
• IPx5 Waterproof rating on the front of the unit, when correctly
  bulk head mounted
• Innovative Multi-Zone Technology
• 2 Zone configurable for different levels of volume in different
  areas of the boat
• Fusion Alpha Search Technology (FAST) allows for quick
  navigation of your iPod data
• Electronic bass / treble / balance control
• Large rotary encoder volume control
• Large rubber back lit buttons
• Subwoofer limit control
• Auxiliary input

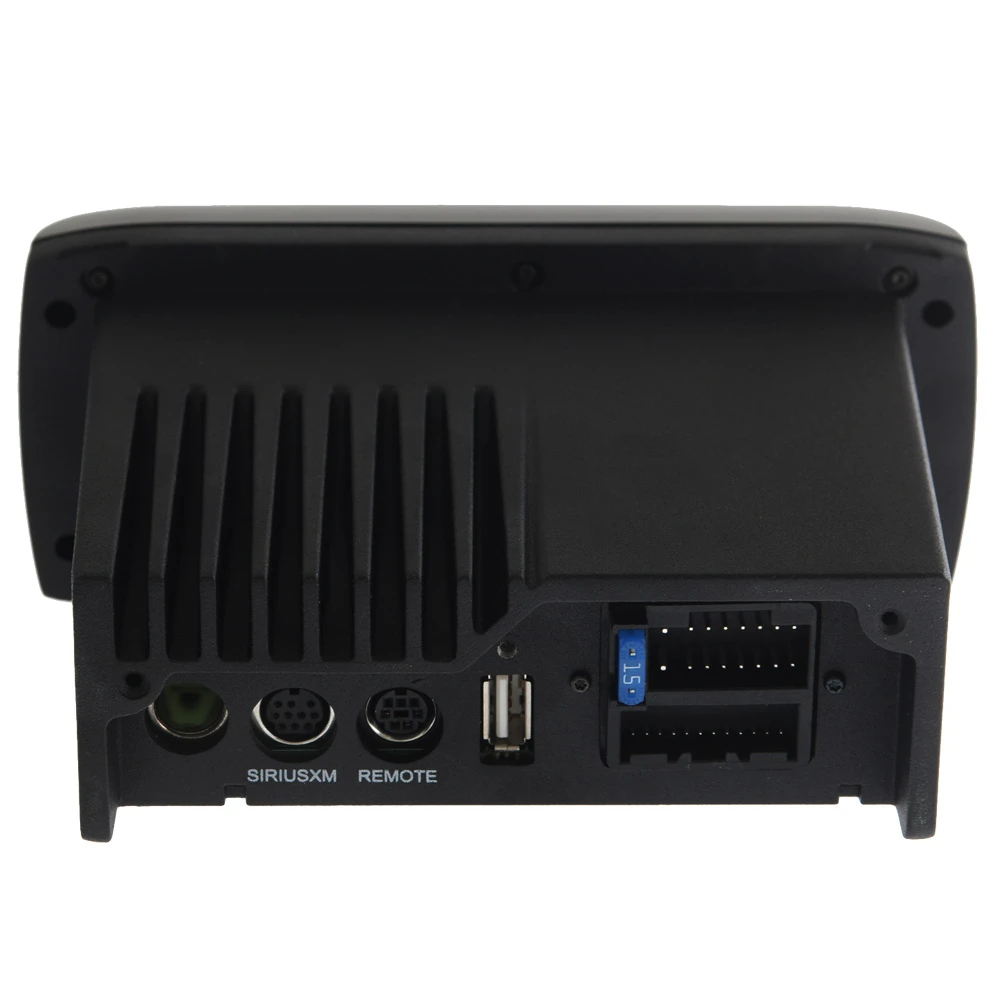

• Zone line out (1 x stereo, 1 x subwoofer)

Fusion MS-RA205 Marine Stereo Specifications:

• Auxiliary in: Yes
• Line Out: 1 x stereo, 1 x subwoofer
• Power: 50 Watts x 4 (max)
• Display: Dot matrix LCD
• Media: AM / FM Tuner, VHF Receiver, USB

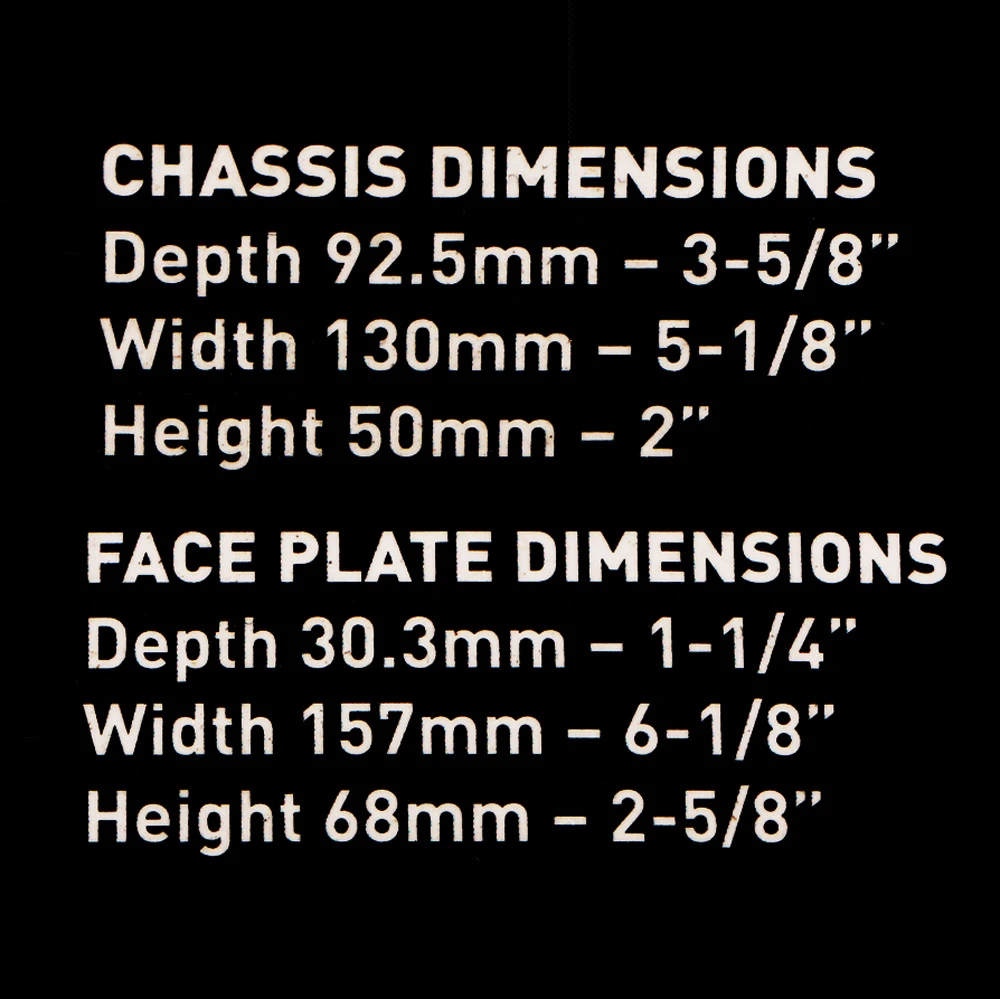

• Chasis Dimensions (DxWxH): 91mm x 127mm x 51mm
• Face Plate Dimensions (DxWxH): 36mm x 160mm x 93mm

Fusion True Marine Waterproof Speakers
Features:

• True Marine Protection: Complies with International ASTM
  Standards for UV Stability and Salt/Fog Resistance
• True Marine Waterproof Design: Complies with IP65 Waterproof
  and Dust Standards
• True Power Saving: High efficiency design reduces battery
  drain

Fusion True Marine Waterproof Speakers
Specifications:

• Tweeter type: Titanium dome
• Max power (watts): 120
• Efficiency (1W1M): 87db
• Frequency Response: 90 – 22kHz

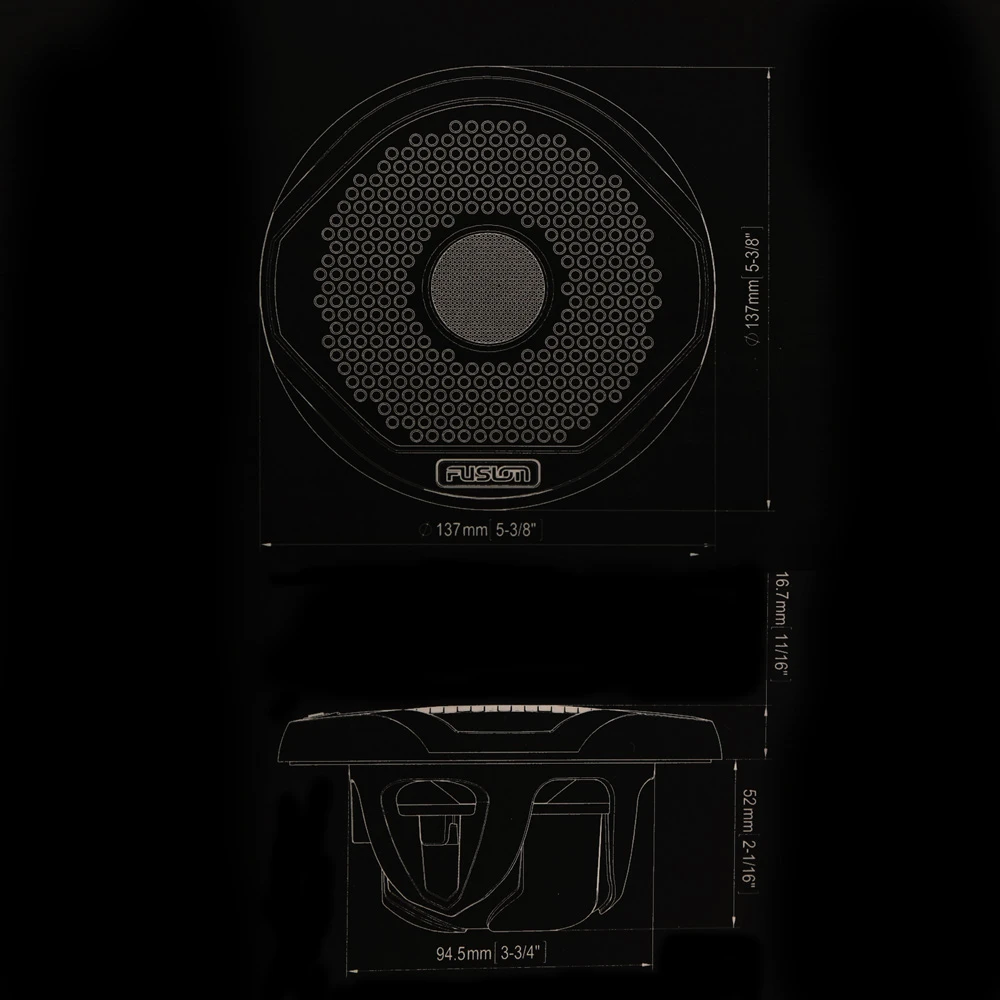

• Min. Mounting Depth Allowing Clearance (mm/in): 60mm (2
  7/16″)
• Impedance: 4 ohms
