Fusion MS-RA205 True Marine Stereo With USB And VHF Receiver

Small in design, big on features

The next generation Fusion MS-RA205 True Marine
Stereo is an impressive palm size marine stereo that
delivers powerful, clear and dynamic sound. It features Fusion’s
industry-leading user interface for ease of use. It is also USB
compatible and has an AM/FM tuner and VHF receiver. Plus, it’s
compatible with FUSION-Link NMEA 2000 Multi-Function displays; turn
your displays into the entertainment control centre when connected
to the FUSION MS-RA205.

Powered by the advanced ARM-9 Processor, the MS-RA205 offers quick
and intuitive audio control. FUSION’s iPod interface allows
navigation of the iPod menu structure and offers selection of songs
by artist, song, playlist, album, genre or composer. This ‘True
Marine’ product is the perfect solution for the trailer boat and
discreet or space conscious installation.

NMEA 2000 Certified
Connect directly onto an existing network (MS-N2KCONN kit is
required for NMEA 2000 connectivity) and communicate with
FUSION-Link certified marine electronics and FUSION MS-NRX200 wired
remote controls (not included in package).

FUSION-Link
Certified NMEA 200 Multi-function displays (MFD) can connect to and
interface with the MS-RA205 over the NMEA 2000 network. Once
connected the MFD becomes the control centre for the entire
vessel.

VHF Reciever
Adjustable squelch, channel scan and user pre-sets are
available.

Multi-Zone Technology
Fully adjustable volume control in all zones of the vessel. Have
loud music in the cockpit & quieter music in the saloon. Zones are
nameable for added convenience (e.g. Zone 1 can be named ‘Helm”).
For localised zone control, install up to two MS-NRX200 wired
remote controls. In instances when the MS-NRX200 is installed onto
a NMEA 2000 network the remote can be configured to display user
selectable data from other NMEA 2000 products connected to the same
network (e.g. Depth or Speed over water).

Fusion MS-RA205 Marine Stereo with USB and VHF Receiver

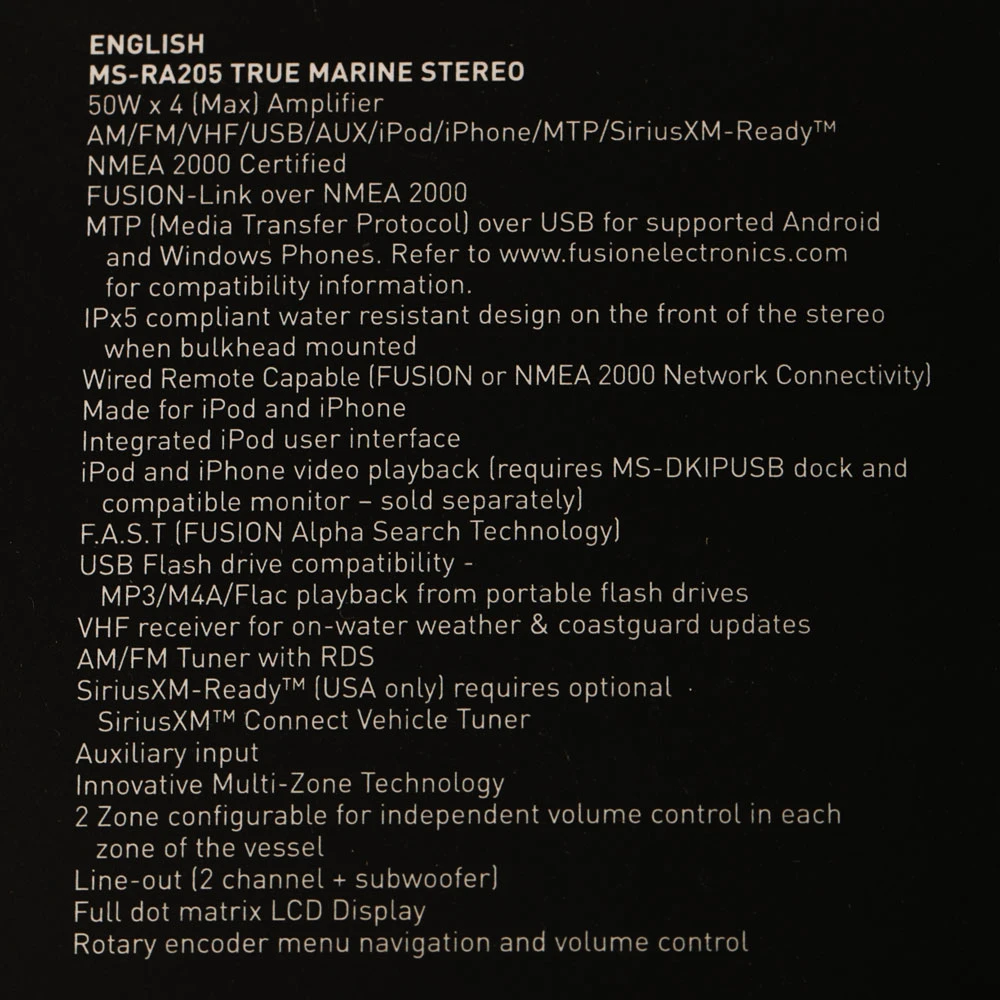

Features:

• Compatible FUSION-Link NMEA 2000 Multi-Function
  displays
• NMEA 2000 certified
• IPx5 Water resistant standards, on the front of the unit when
  correctly bulk head mounted
• Innovative Multi-Zone technology
• User friendly
• Fully integrated iPod user interface
• Superior die-cast construction; engineered to withstand the
  harsh marine environment including salt spray, humidity and
  pounding seas
• Large backlit LCD with adjustable brightness allows for
  accurate display
• VHF receiver for on-water weather & coastguard update

Fusion MS-RA205 Marine Stereo with USB and VHF Receiver
Specifications:

• Auxiliary in: Yes
• Line Out: 1 x stereo, 1 x subwoofer
• Power: 50 Watts x 4 (max)
• Display: Dot matrix LCD
• Media: AM / FM Tuner, VHF Receiver, USB, AUX
• Fusion-Link: NMEA 2000 Connectivity Only

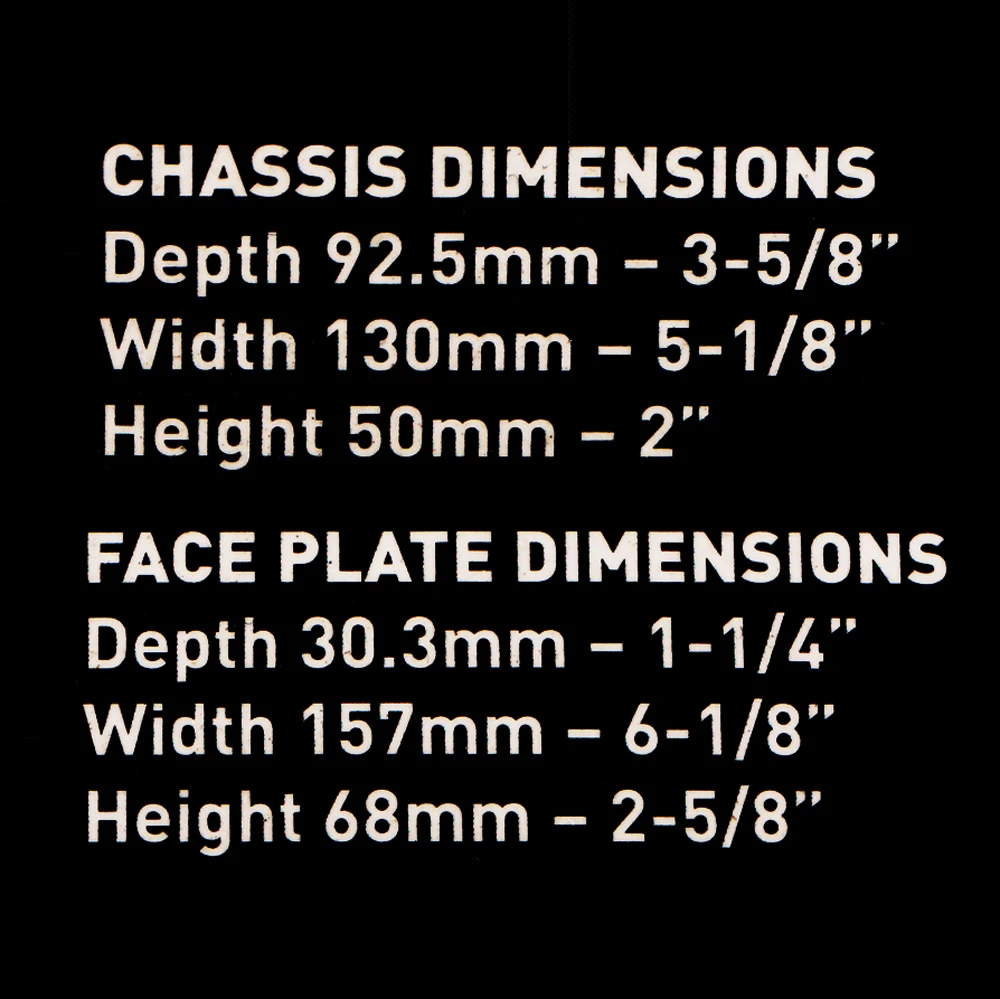

• Chasis Dimensions : 93mm (depth) x 127mm (width) x 52mm
  (height)
• Face Plate Dimensions: 29mm (depth) x 157mm (width) x 68mm
  (height)

Note: Product does not charge phones when
connected. Receiver only.
