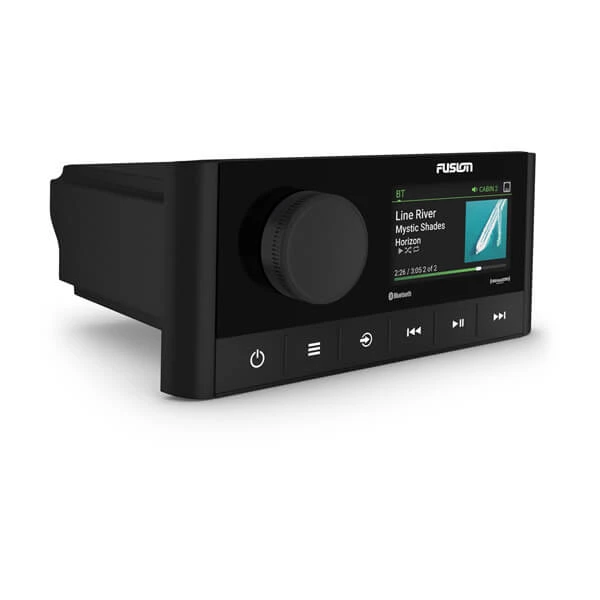

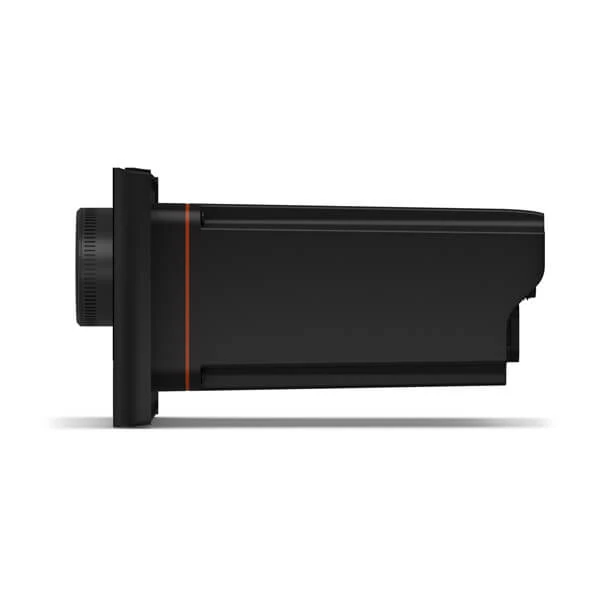

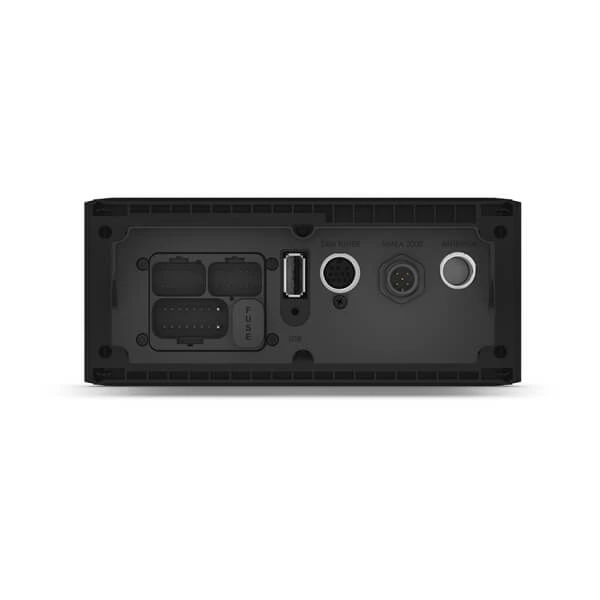

Fusion MS-RA210 Stereo Package With XS Classic Speakers

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion marine stereo and or and put the perfect soundtrack at your fingertips.

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the Fusion stereos have an front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

Features:

• Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
• Easily control music from your compatible Garmin MFD¹, smart device or Garmin watch.
• Built-in Class D amplifier brings aboard higher efficiency and greater output.
• Multi-Zone Technology makes you the captain of two separate audio zones.
• Conveniently update software via Bluetooth technology² from the Fusion-Link app on your compatible smart device.
• Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.

What’s In the Box

MS-RA60 Stereo and EL Sports Speaker Kit
• MS-RA60 marine stereo
• One pair of EL Series sports grey marine speakers
• AM/FM stealth antenna
• Two 19 ft (6 metre) speaker wires
• Dust cover

Wiring harnesses and mounting accessories

• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))

MS-RA60 Stereo and EL Classic Speaker Kit

• MS-RA60 marine stereo
• One pair of EL Series classic white marine speakers
• AM/FM stealth antenna
• Two 19 ft (6 metre) speaker wires
• Dust cover

Wiring harnesses and mounting accessories

• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))

MS-RA210 Stereo and XS Sports Speaker Kit

• MS-RA210 marine stereo
• One pair of XS Series sports grey marine speakers
• AM/FM stealth antenna
• 6 ft (2 metre) NMEA 2000 drop cable
• Two 19 ft (6 metre) speaker wires
• Dust cover

Wiring harnesses and mounting accessories

• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))

MS-RA210 Stereo and XS Classic Speaker Kit

• MS-RA210 marine stereo
• One pair of XS Series classic white marine speakers
• AM/FM stealth antenna
• 6 ft (2 metre) NMEA 2000 drop cable
• Two 19 ft (6 metre) speaker wires
• Dust cover

Wiring harnesses and mounting accessories

• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))

Specifications:

Stereo Specifications
Physical dimensions (HxWxD)	MS-RA60: 2.68” x 6.18” x 4.06” (68 x 156.9 x 103.2 mm) MS-RA210: 2.68” x 6.18” x 4.99” (68 x 157 x 126.6 mm)
Weight	MS-RA60: 11.1 oz (316 g) MS-RA210: 12.4 oz (350 g)
Water rating	IPX6 and IPX7 (front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	32 degrees to 122 degrees F (0 degrees to 50 degrees C)
Current (max.)	15 A
NMEA 2000 LEN	MS-RA210: 1 (50 mA)
Bluetooth wireless range	Up to 30 ft (10 metres)
ANT wireless range	Up to 10 ft (3 metres)
Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +12 dBm nominal
Compass-safe distance	5.9” (150 mm)
Display	MS-RA60: 2.3” perimeter bonded monochrome dot matrix LCD MS-RA210: 2.7” optically bonded colour LCD
Built-in amplifier	Class-D (minimum 4 Ohm impedance)
Peak power	MS-RA210: 200 W MS-RA60: 180 W
Rated power output (4 Ohm)	MS-RA60: 22 W rms x 4 @ 14.4 V input MS-RA210: 26 W rms x 4 @ 14.4 V input
Built-in Digital Signal Processing	MS-RA210: Yes (with preconfigured DSP profiles)
Fusion-Link control	MS-RA60: Yes (with smartphone and Garmin watch) MS-RA210: Yes (with MFD, smartphone and Garmin watch)
Multi-Zone technology	2 zones
Bluetooth wireless technology	Yes
ANT wireless technology	Yes
SiriusXM-ready	MS-RA210: Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready	MS-RA60: Yes (DAB tuner built in) MS-RA210: Yes (requires DAB100A antenna module)
NRX remote compatibility	MS-RA210: Yes
Multi-language interface	MS-RA60: Dutch, English, French, German, Italian, Spanish MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
Software updates	MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app MS-RA210: USB
Warranty	1 year
Sources	MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only) MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only)
Auxiliary input	One RCA input (AUX)
NMEA 2000	MS-RA210: 1 port
USB 2.0	MS-RA210: 1 port
SiriusXM satellite radio	MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio	One Motorola antenna connector port
Speaker	MS-RA60: 4 x speaker connections (2 zone amplified) MS-RA210: 2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer)	MS-RA60: 1 zone (requires external amplification) MS-RA210: 2 zones (requires external amplification)
Line out	MS-RA60: Zone 1 (L + R, requires external amplification) MS-RA210: 2 (1 x L + R per zone, requires external amplification)
Subwoofer out	MS-RA60: Zone 1 (requires external amplification) MS-RA210: 1 x mono output (requires external amplification)
Speaker Specifications
Physical dimensions (HxWxD)	EL Speaker: 6.93” x 2.32” (176 x 59 mm) XS Classic Speaker: 6.97” x 3.19” (177 x 81 mm) XS Sports Speaker: 6.97” x 3.27” (177 x 83 mm)
Water rating	IP65
Configuration	EL Speaker: Full range XS Speaker: Coaxial
Speaker size	6.5”
Peak power (Watts)	EL Speaker: 80 W XS Speaker: 200 W
RMS power (Watts)	EL Speaker: 20 W XS Speaker: 50 W
Sensitivity (1 watt/1 metre)	EL Speaker: 88 dB XS Speaker: 91 dB
Frequency response	EL Speaker: 45 Hz-16 kHz XS Speaker: 80 Hz-18 kHz
Nominal impedance	4 ohm
Recommended amplifier power (RMS)	EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch
Operating temperature range	32 degrees to 122 degrees F (0 degrees to 50 degrees C)
Voice coil diameter	EL Speaker: 0.79” XS Speaker: 1.18”
Cone material	Polypropylene cone with cloth surround
Tweeter type	XS Speaker: Aluminium dome
Compass-safe distance	EL Speaker: 100” (254 cm) XS Speaker: 122” (310 cm)
Warranty	EL Speaker: 1 year XS Speaker: 3 years
Mounting diameter clearance	EL Speaker: 5.12” (130 mm) XS Speaker: 5.31” (135 mm)
Mounting depth clearance	EL Speaker: 1.69” (43 mm) XS Speaker: 2.64” (67 mm)
Sealed enclosure volume	XS Speaker: 0.28 cubic ft (8 L)
