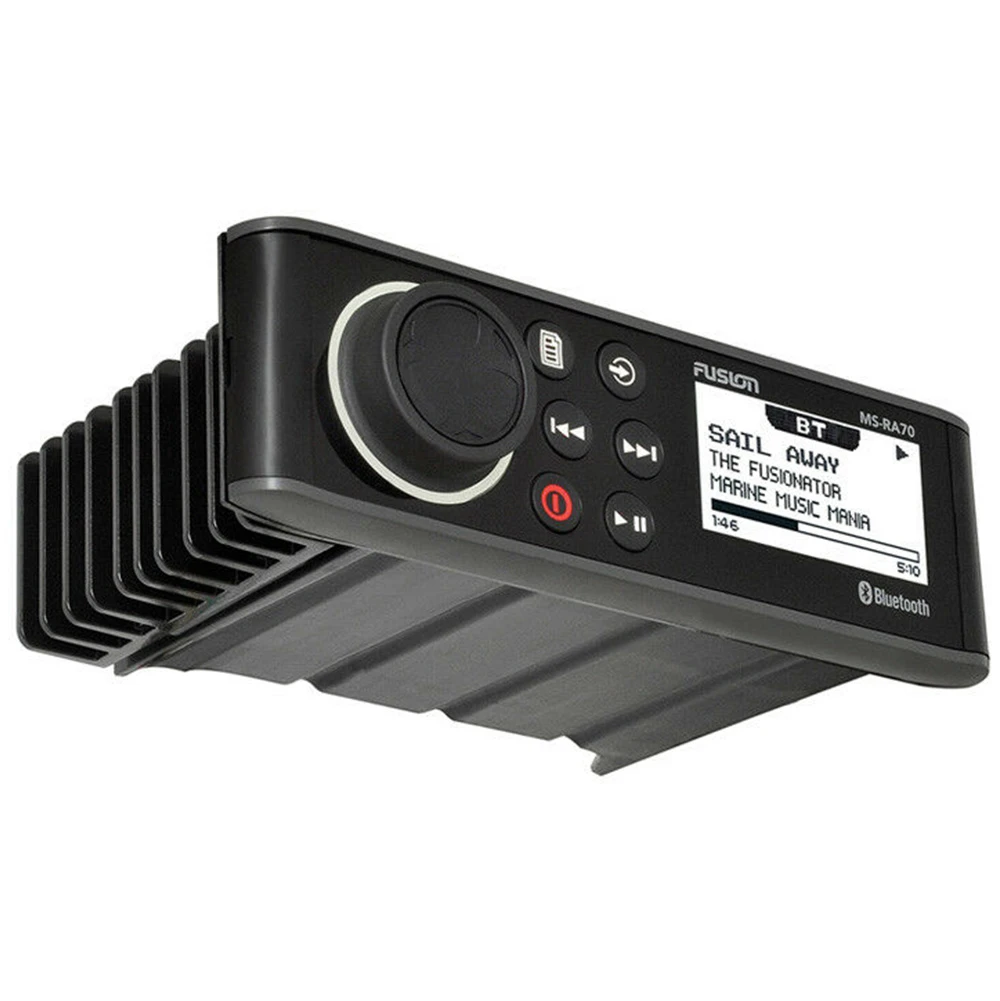

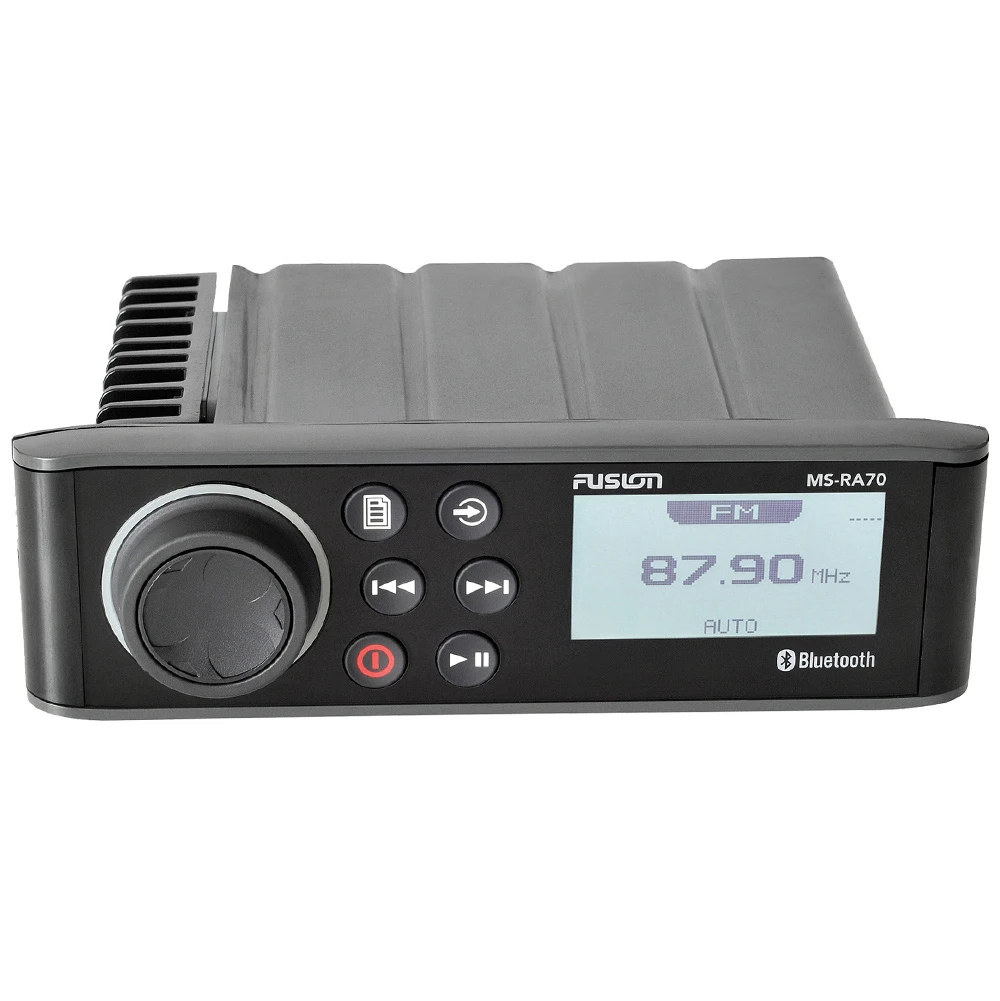

Fusion MS-RA70 Bluetooth Marine Stereo

Let Fusion entertain you on the water

Check out the Fusion MS-RA70 Bluetooth Marine Stereo, Fusion’s sleekest value-packed marine stereo,
designed to deliver quality on-water entertainment by incorporating the latest marine technologies. Engineered to
seamlessly replace any standard DIN sized non-marinised stereo
without the need to reconfigure dash space. Clever styling allows
an installer the option of either mounting the stereo with a
conventional dash finish or an option to integrate into a glass
helm with a flush surface mount, ensuring a high-end
installation.

Stream music from any compatible device with
control available from the stereo or your connected smartphone via
the FUSION-Link Bluetooth app. Simply download the free Apple or
Android FUSION-Link remote control app for Bluetooth from or Google
Play and enjoy localised zone control, source navigation, track
selection and the freedom of wireless control.

The MS-RA70 is designed and engineered specifically for the marine
environment, with an IPx7 front panel (when mounted correctly) to
withstand the environment like none other, perfectly paired with an
optically bonded LCD for crystal clear display on the high
seas.

Fusion MS-RA70 Bluetooth Marine Stereo Features:

• Designed and engineered specifically for the marine environment
• Stream your favourite music from any compatible device with control available from the stereo
• Connect a smart phone via the FUSION-Link Bluetooth app
• Localised zone control, source navigation, track selection and the freedom of wireless control
• IPx7 front panel

Fusion MS-RA70 Bluetooth Marine Stereo Specifications:

• Android Open Accessory (AOA): Android support is limited to
  devices which support AOA protocol, see supported device list for
  details
• Audio Format USB: MP3
• Audio Zones: 2 on board amplified zones
• Auxiliary Inputs: 1 x Stereo RCA Input (AUX)
• Bluetooth: A2DP Bluetooth Audio Streaming with AVRCP

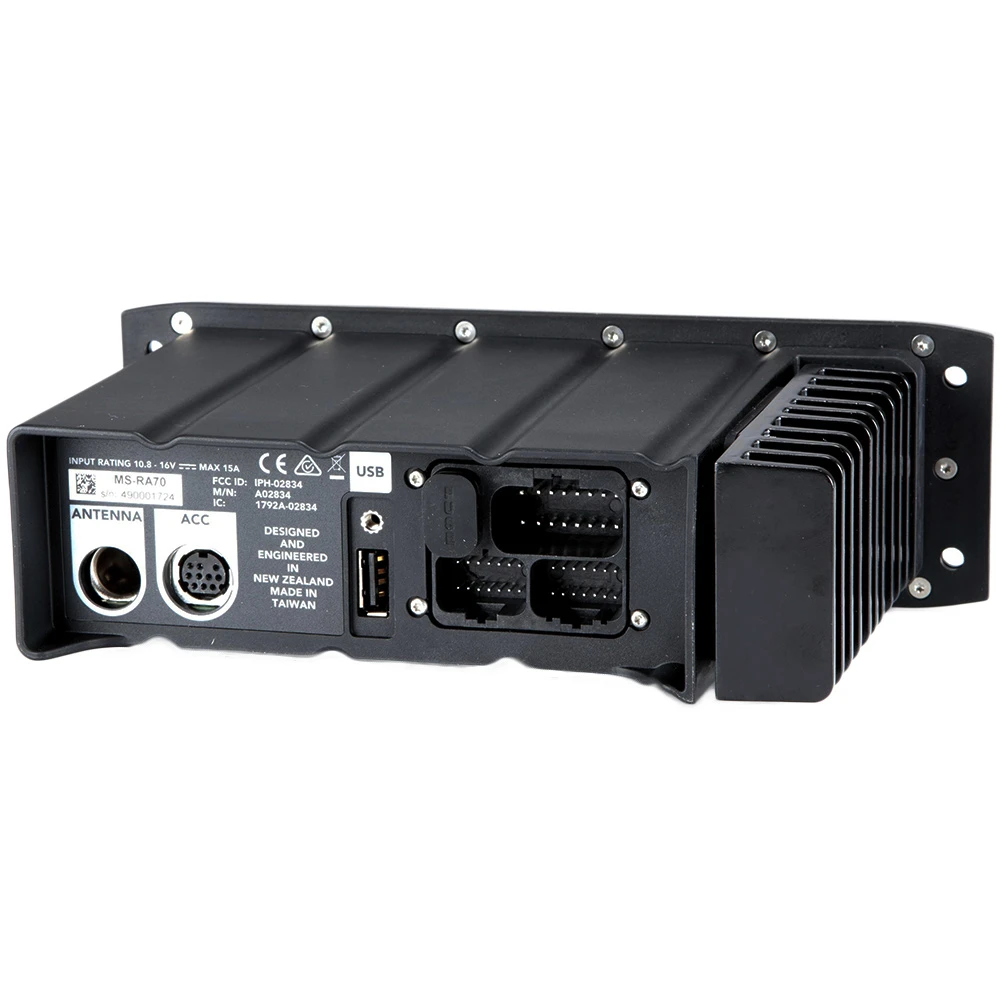

• Chassis: Electrically isolated glass filled composite chassis
  with an aluminium side-fin heat sink with VCT
• DAB+ Ready: MS-DAB100A is required for DAB support, only
  available where DAB and DAB+ is broadcast
• Display: 128×64 Monochrome Optically Bonded LCD
• FUSION-Link Wireless: Bluetooth remote control is available
  with the FUSION-Link remote control app available for download from
  iTunes or Google Play
• iPod/iPhone: Made for iPod and iPhone – supports IAP 2 protocol
  only
• Line Out: 1 x L+R Linked to Zone 1 (requires
  amplification)
• Multi-Language User Interface: English, French, German,
  Spanish, Dutch and Italian
• Nameable Zones: Up to 10 characters
• Subwoofer Out: 1 x Sub Out Linked to Zone 1 (requires
  amplification)
• Tuner: AM/FM with RDS (where available)
• Tuner Region: USA, Australasia, Europe and Japan
• USB: 1 x USB connector at the rear of the unit, supports 1 amp
  charging
• Water Resistance: IPx7 waterproof from the front panel when
  correctly mounted. Rear of the unit is rated IPx3

Fusion MS-RA70 Bluetooth Marine Stereo Installation Instructions
