Fusion MS-SRX400 Apollo Marine Zone Stereo Package With Speakers

Amazing crystal clear sound and built in wifi in a compact,
versatile stereo

Get yourself a complete marine audio setup in one purchase! The
Fusion MS-SRX400 Apollo Marine Zone Stereo Package
comes with the MS-SRX400 Apollo Marine Zone Stereo and a pair of
MS-EL602 Shallow Mount Marine 2-Way Speakers. It’s complete and
ready to go!

Package Includes:

• 1x Fusion MS-SRX400 Apollo Marine Zone Stereo with Built-In
  Wi-Fi
• 2x Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers 6in
  150W

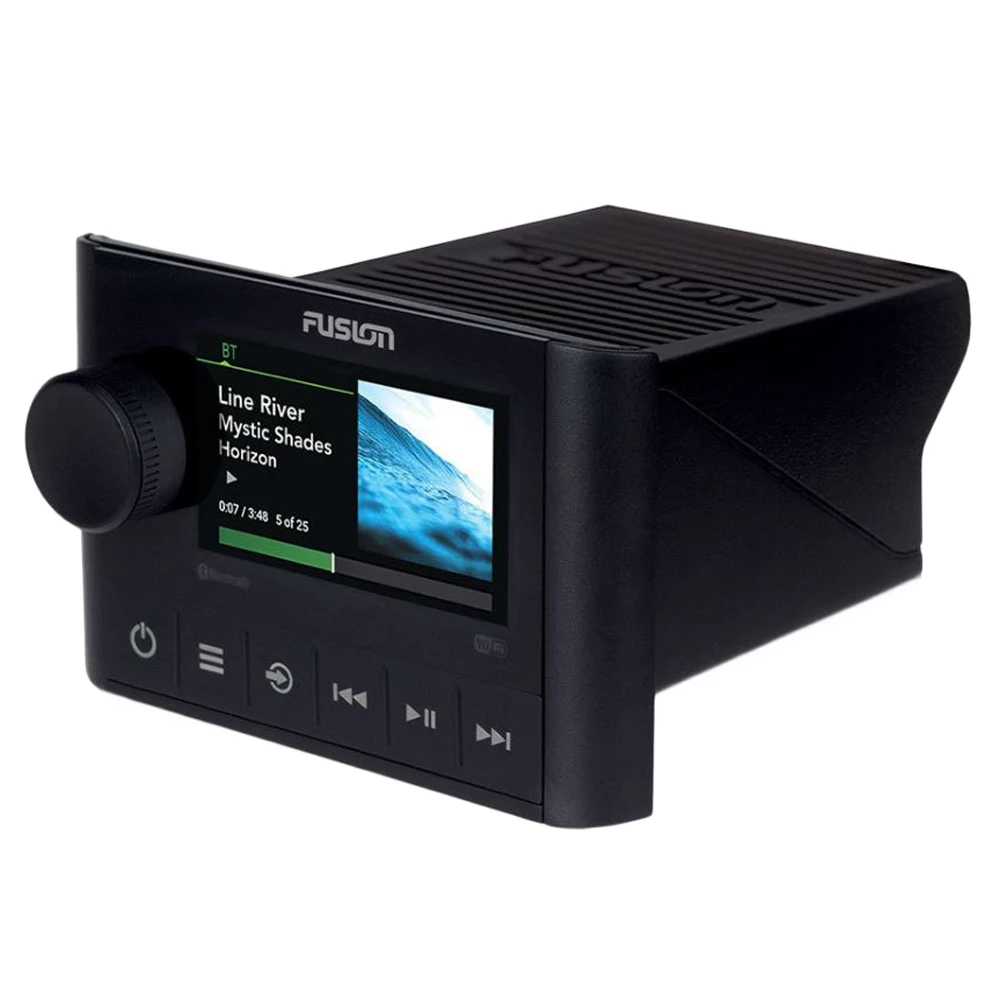

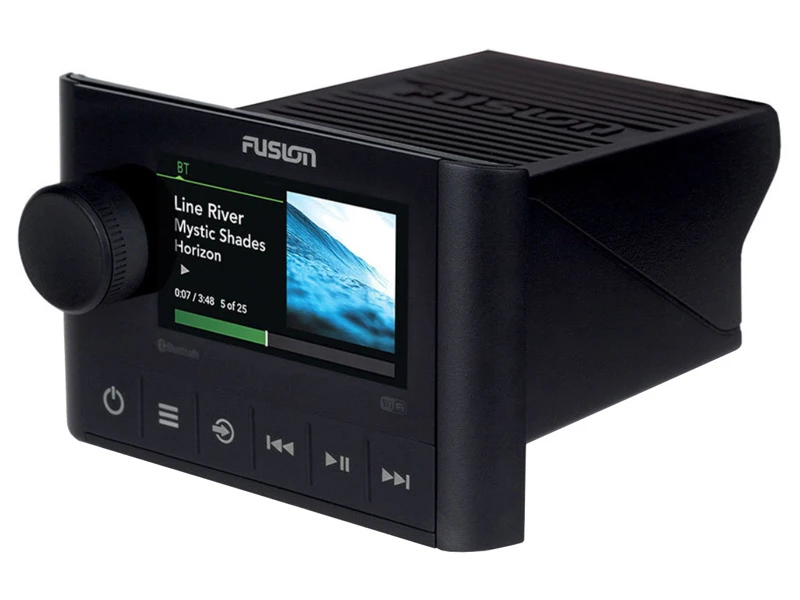

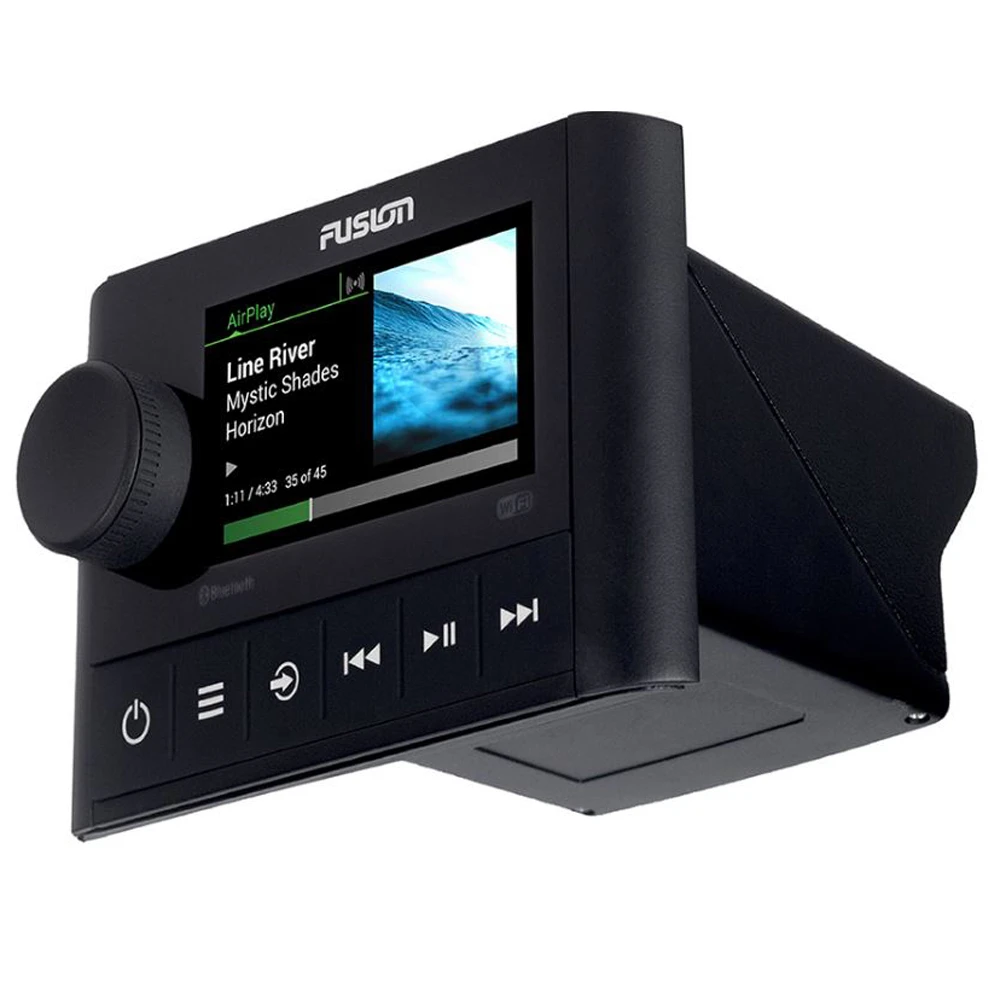

The Head Unit
The Fusion MS-SRX400 Apollo Marine Zone Stereo with
Built-In Wi-Fi combines the latest design, engineering and
powerful feature set of the Apollo Series in a compact, versatile
form factor. With built-in Wi-Fi streaming, Fusion’s Digital Signal
Processing, PartyBus connectivity and over-the-air software
updates, the Apollo SRX400 is the perfect combination of
intelligent design and superior sound in a compact zone stereo. The
future of marine audio entertainment has arrived with the Apollo
Series!

Wi-Fi Audio Streaming
In a marine industry-first, high quality on-board audio streaming
is now available via Wi-Fi with the Apollo Series. Wi-Fi streaming
provides a higher data transfer rate in comparison with Bluetooth,
for higher quality audio reproduction.

Digital Signal Processing
A technically superior listening experience made simple, Fusion DSP
produces superior sound quality in every environment. Precisely
calculated loudness curves optimized for the human ear ensure
quality, full range audio at every volume level, while the
feed-forward limiter anticipates a peak in the audio and adjusts
the gain to make distortion, at any volume level, a thing of the
past. Using environmental information and customised Fusion speaker
profiles, you can now achieve customized, optimized audio for any
area of your boat, resulting in an entertainment system that is
perfectly tuned for premium audio reproduction, and programmed to
protect your system season after season.

Setting up your DSP profiles is made simple with the free
Fusion-Link app, or with a custom-made Fusion-Link PC app for OEM
boat builders. With just a few clicks, you can set up the
preconfigured DSP profile once and get back to enjoying what you
love on the water, while listening to high-quality audio customized
for your ears and the environment.

Over-The-Air Software Updates
The Apollo Series is intelligently simple and always up to date,
thanks to the over-the-air software updates available from your
smartphone or compatible device via the free Fusion-Link app.

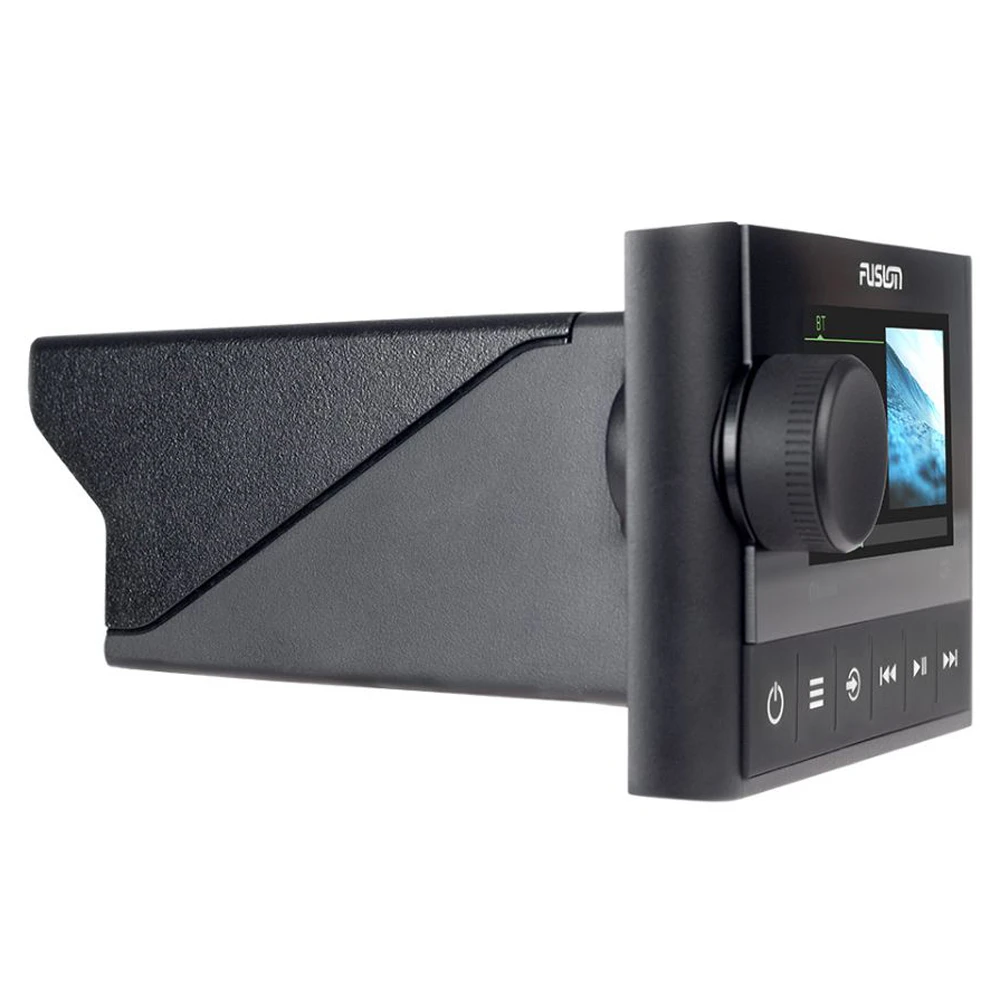

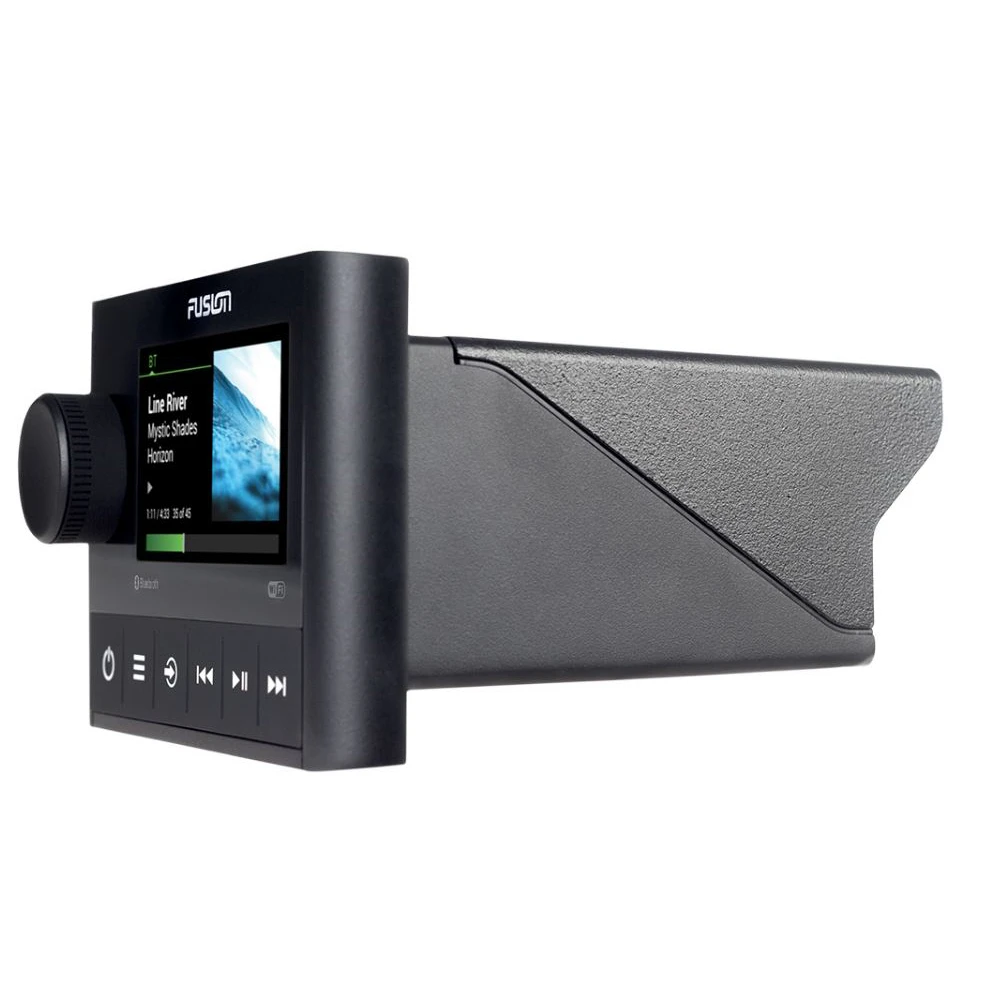

Compact Design
The compact Apollo SRX400 zone stereo is designed for installation
where minimal space is available, providing high quality audio
reproduction from a compact form factor, either in a conventional
flush installation, or integrated into a glass helm for a premium
finish.

True-Marine Designed and Engineered
Built on Fusion’s True-Marine design philosophy, the MS-SRX400 has
an IPX7 water resistant front panel, and has been tested to a high
level for protection against salt fog, temperature, vibration and
UV protection.

Fusion-Link
The industry standard protocol for on-water audio integration and
control, Fusion-Link enables control of your entertainment directly
from compatible Apple or Android devices. With multiple control
options available, no matter what you are doing on your boat, you
can always be in control of your audio entertainment.

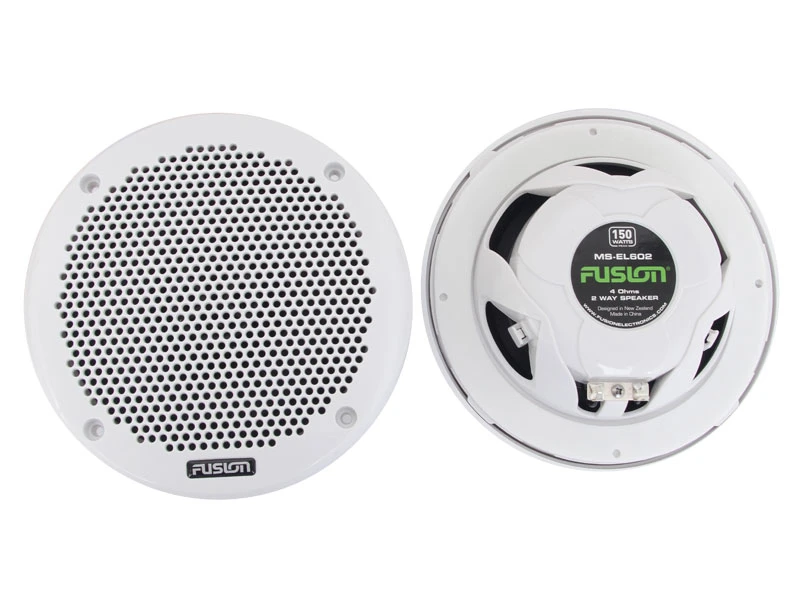

The Speakers
Enjoy music in your boat with the Fusion MS-EL602 Shallow
Mount Marine 2-Way Speakers. These speakers are engineered
with flush profile tweeters and a compact basket assembly. They
feature a mounting depth of only 41mm (1-5/8″) for simple and
versatile installation. The Fusion Marine 6inch 2-Way
Speakers have a water resistant design which ensures the
speakers are able to withstand exposure to the marine environment.
And with a peak power output of 150 watts, these speakers will rock
your boat for as long as you choose to ride the waves.

Fusion MS-SRX400 Apollo Marine Zone Stereo with Built-In
Wi-Fi Features:

• Compact, versatile form factor
• Built in WiFi audio streaming
• Digital signal processing
• Over the air software updates
• Compact design
• True marine design and engineering
• Fusion-Link

Fusion MS-SRX400 Apollo Marine Zone Stereo with Built-In
Wi-Fi Specifications:

• Display: 2.7″ color LCD display
• Sources: AM/FM / Bluetooth / Wi-Fi audio streaming /
  UPnP
• Digital Signal Processing (DSP): Yes
• Speaker Presets (easy to tune): Yes
• Fusion-Link Control (Wireless): Yes
• PartyBus Technology: Yes (control media playback from Apollo
  RA770 when connected via Ethernet or Wi-Fi)
• Bluetooth Wireless Technology: Bluetooth audio streaming, music
  control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth
  protocol)
• Wi-Fi: Yes
• Water Resistance (IPX Rating): IPx7 (front panel)
• Internal Amplifier: Class-D
• Peak Power: 140W max.
• Multi-Language User Interface: English, French, German,
  Spanish, Dutch, Italian
• Ethernet: One Ethernet port
• AM/FM radio: One Motorola antenna connector port
• RCA Pre-Out (Left, Right and Subwoofer): Single zone
• Operating Voltage: +10.8 – 16V dc
• Line Out: 1 (1 x L + R, requires external
  amplification)
• Subwoofer Out: 1 x mono output (requires external
  amplification)
• Software Updates: Over-the-air updates via the Fusion-Link
  app

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers
Features:

• Shallow mount design – Flush profile tweeters and a compact
  basket assembly for simple installation
• mounting depth of only 41mm (1-5/8″) for simple and versatile
  installation
• Water resistant construction
• Engineered for the marine environment, able to withstand
  exposure to the elements

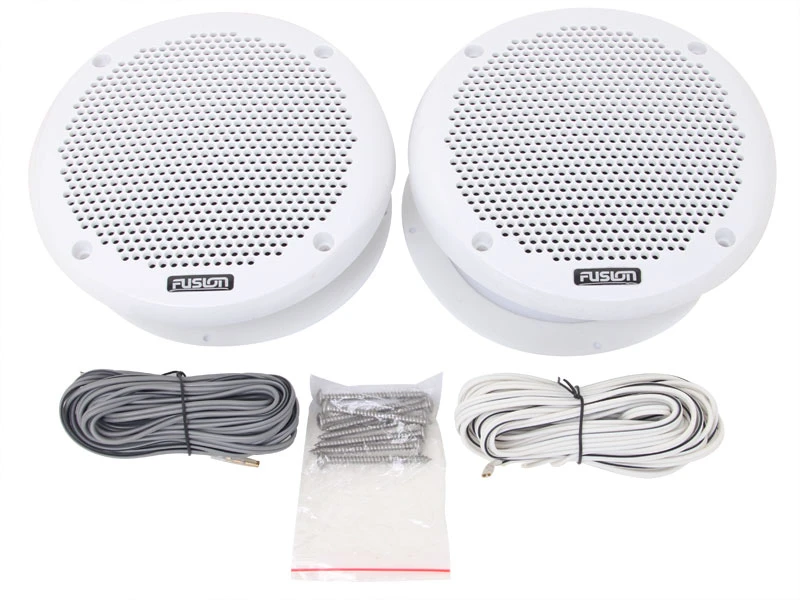

• What’s in box: 2s speakers, 2x cables, mounting screws

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers
Specifications:

• Speaker diameter: 156mm
• Cut-out diameter: 130mm
• Mounting depth: 41mm
• Cone Material: Polypropylene
• Efficiency (1W/1M): 85dB
• Frequency Response: 60Hz – 22kHz
• Impedance: 4 Ohm
• Peak Power: 150 Watts
• Woofer Size: 6″
• Tweeter Type: PEI

Fusion Apollo Series SRX400 Marine Zone Stereo Quick Start
Manual

Fusion Apollo Series SRX400 Marine Zone Stereo Owner’s
Manual

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers User
Manual

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers Mounting
Template
