FUSION MS-UD650 Marine Stereo Package With 6.5in Speakers And Wired Remote

Turn the music up

Pump up the volume with this powerful and feature-packed marine
stereo setup. We’ve bundled the FUSION MS-UD650 Marine
Stereo Package so you won’t need to look for other
components to make it work – it’s complete and ready to go. You get
the Fusion MS-UD650 Marine Stereo with 6.5in speakers and Fusion
MS-NRX300 Marine Wired Remote. Get yours now and have a blast!

Package Includes:

• 1 x Fusion MS-UD650 Marine Stereo with Internal UNI-Dock
• 1 x Fusion MS-NRX300 Marine Wired Remote and NMEA 2000
  Repeater

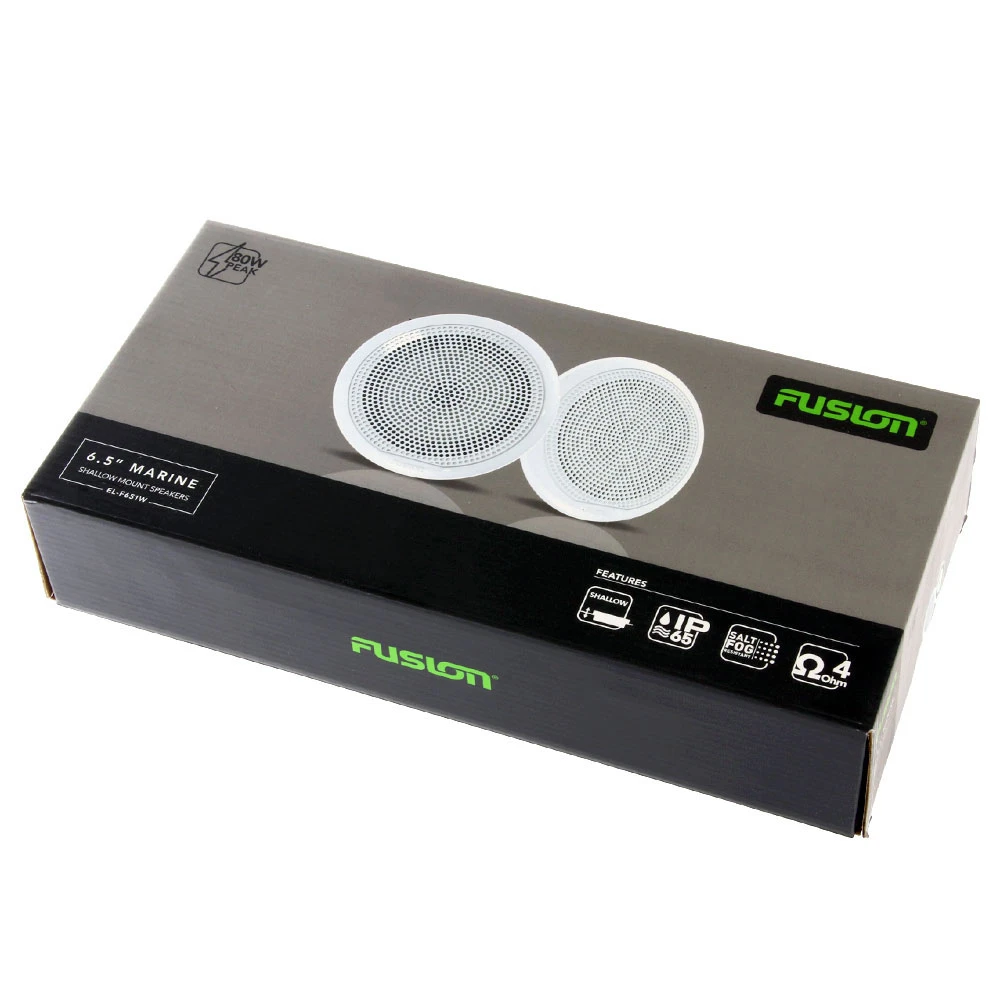

• Fusion EL Series Shallow Mount Marine Speakers 6.5in 80W
  White

The Stereo

With the constant evolution of entertainment technologies, Fusion
continues to dominate, pioneering integrated systems for your
favourite media devices. Introducing the Fusion MS-UD650
Marine Stereo with Internal UNI-Dock. The water resistant
UNI-Dock is designed for safe charging and playback of the latest
Apple iOS and MTP Android/Windows media devices. Bluetooth A2DP
audio streaming capabilities and Fusion-Link NMEA 2000 connectivity
make the 650 series an all-in-one and purpose-built solution for
entertaining on the high seas.

The Speakers

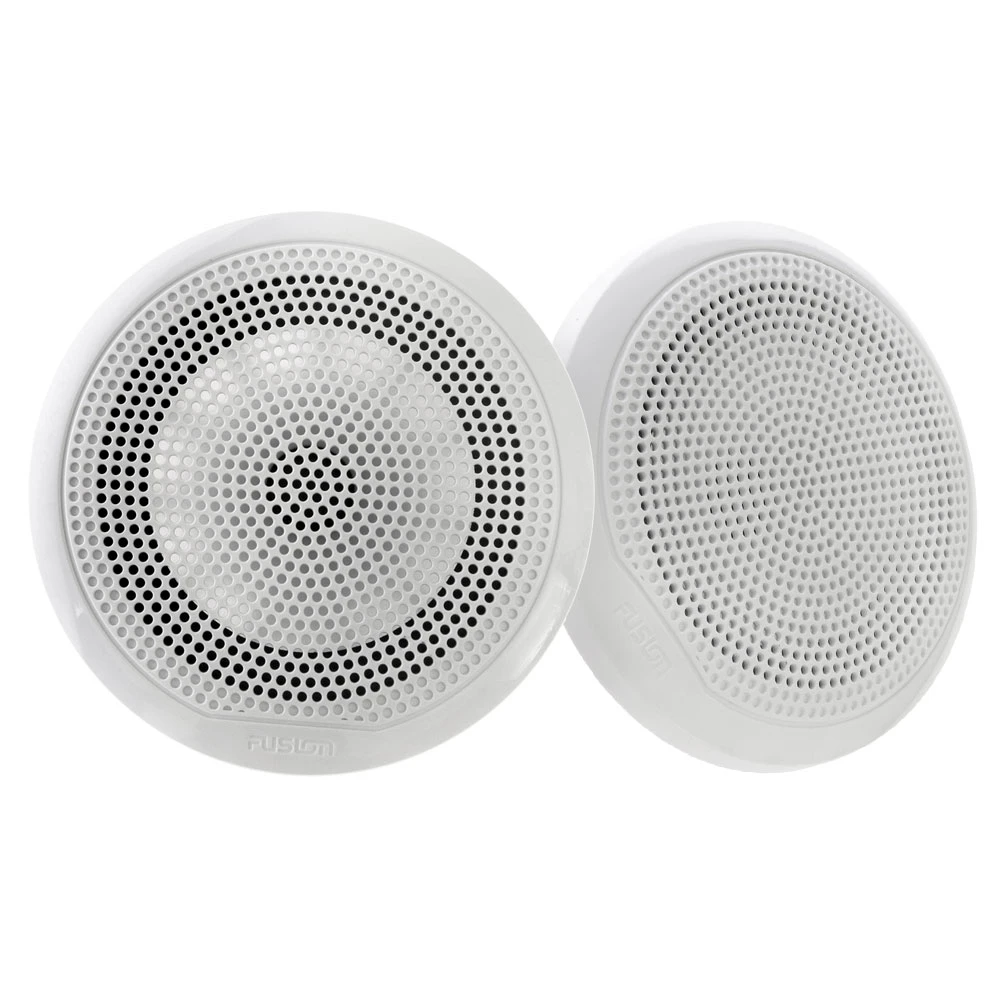

The Fusion EL Series Shallow Mount Marine Speakers
are engineered for high quality audio reproduction in the marine
environment. These speakers feature a shallow basket design to
provide versatility in mounting options, especially when the
installation area’s mounting depth is limited. It can fit in
thinner wall cavities than traditional speakers. The Fusion
EL Series Shallow Mount Marine Speakers are designed to
withstand the elements in harsh outdoor and marine environments and
can take on sun, salt, water and dust with its IP65 weatherproof
rating. Now sit back, relax and blast some awesome tunes!

Shallow Basket Design

Making the Fusion EL Series speakers ideal for installation where
mounting depth is limited, the shallow basket design ensures your
speakers will fit in thinner wall cavities than traditional
speakers.

Engineered for the Marine Environment

Perfect for both indoor and outdoor installation, the EL Series are
designed to withstand the elements in harsh outdoor and marine
environments. Meeting industry standards for UV and salt fog
protection, along with an IP65 weatherproof rating, your speakers
are protected from sun, salt, water and dust damage from the front
face when correctly mounted – letting you can enjoy peace of mind
that your speakers will last the test of time on board.

The Remote

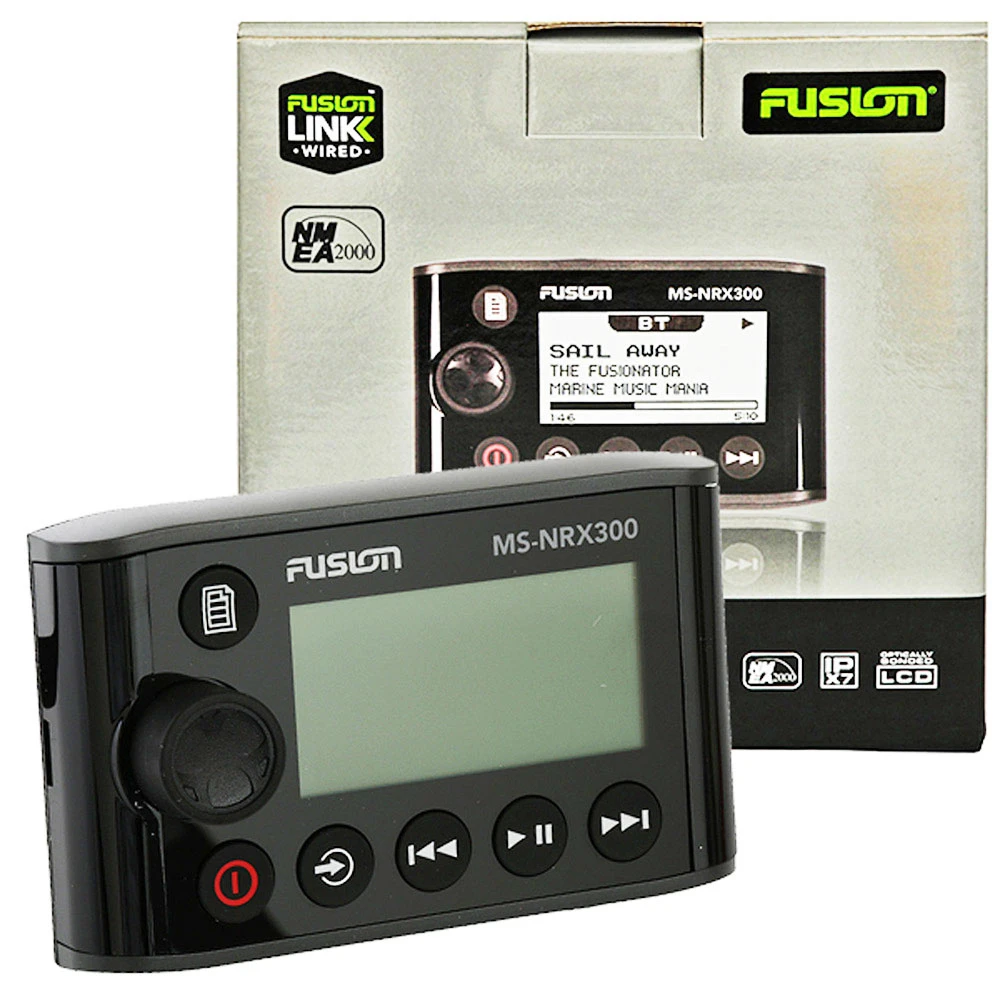

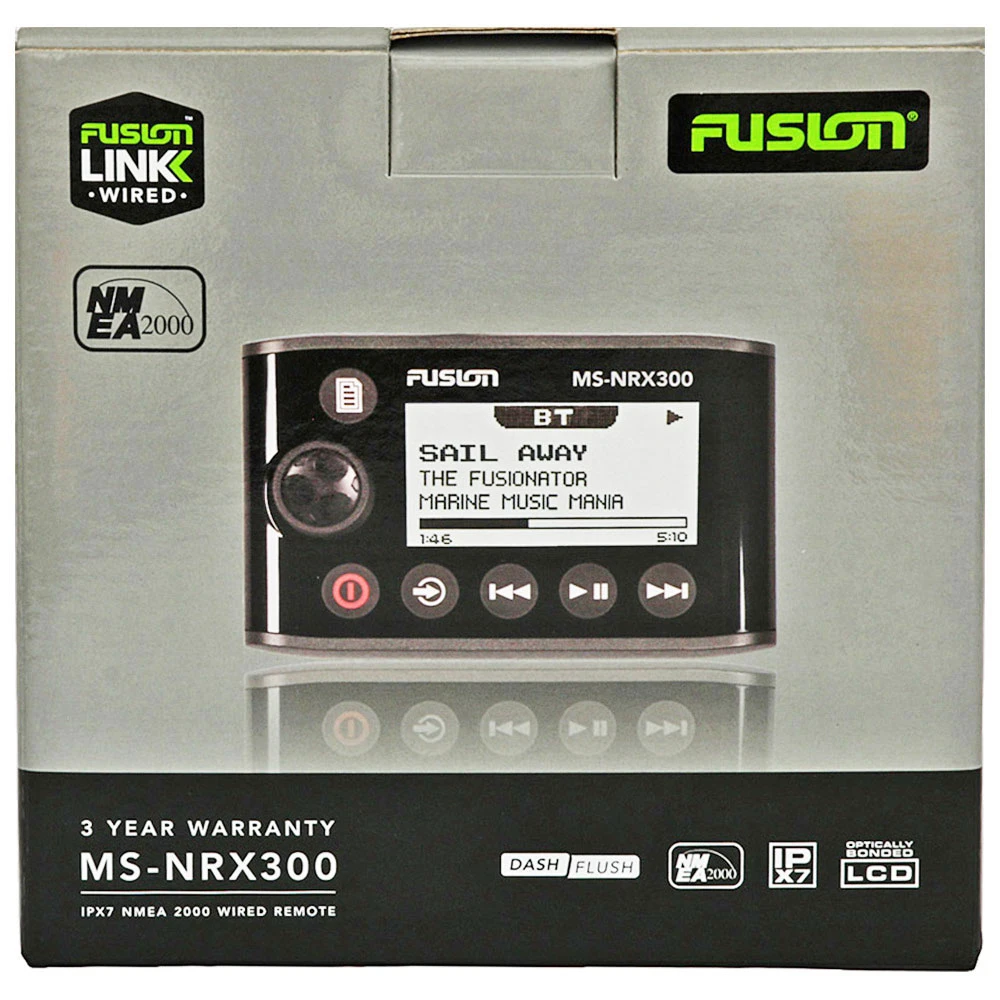

The Fusion MS-NRX300 Marine Wired Remote is an
out-of-the-box solution for adding localised control of a
compatible Fusion marine entertainment system to any vessel.

The Fusion MS-NRX300 Marine Wired Remote features
a sleek new innovation: the glass helm flush mounting option. You
can now choose either a flush mount for a stunning glass helm
finish, or you can easily install with the conventional dash mount
finish. Either way, the feature packed MS-NRX300 will give you
everything you want from a wired remote and more.

Multi-Zone Technology

Install a remote in each independent audio zone, up to four zones
depending on your Fusion marine entertainment system, to create
localised volume control, as well as, global source control. Now
you have even more control in creating a customised audio
entertainment experience around your vessel.

IPx7 Waterproof

Perfect for installation on a swim platform, deck or within the
cabins, the MS-NRX300 is designed and engineered for the marine
environment.

NMEA 2000 Certified

The MS-NRX300 is certified for connection to any NMEA 2000 network
making for a quick and easy installation. Once connected, the wired
remote will double as a NMEA Repeater.

Optically Bonded 2.6” LCD Display

The MS-NRX300 sports a large, high contrast, daylight viewable
display making it easy to navigate and stay in control of your
audio entertainment experience.

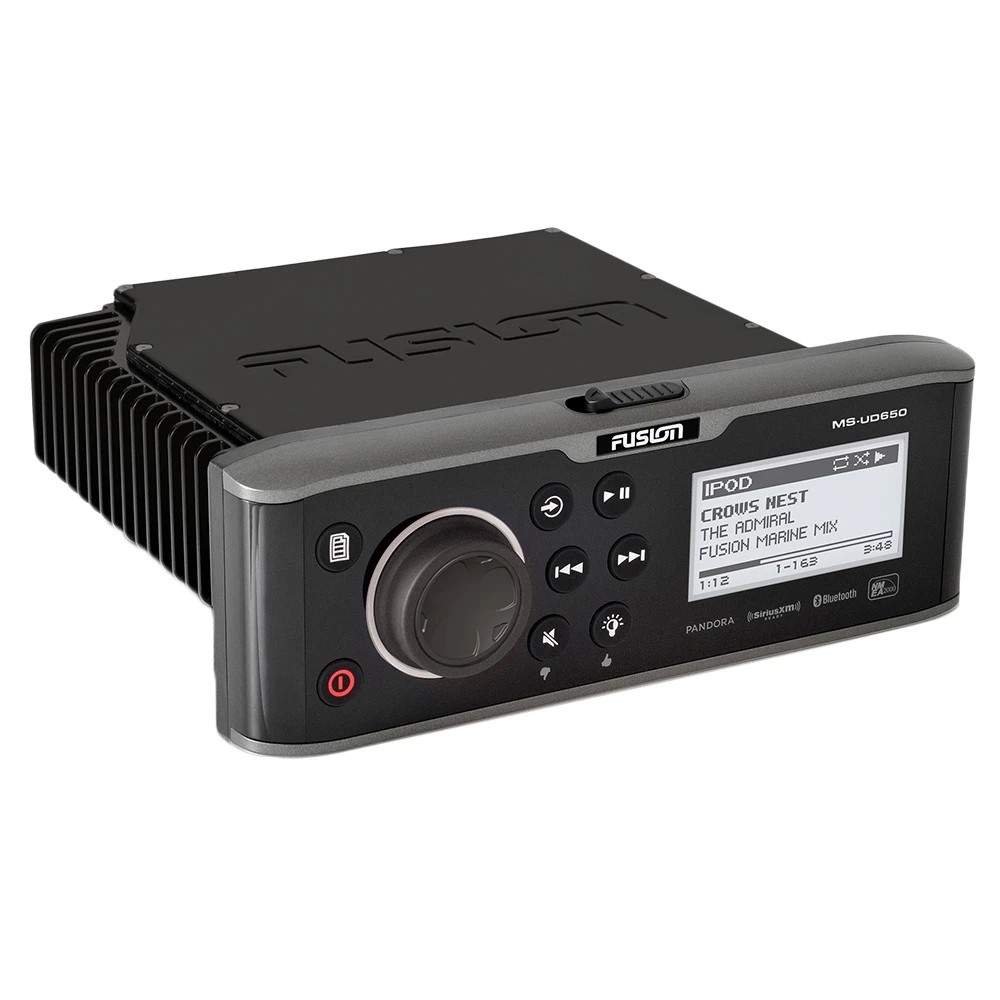

Fusion MS-UD650 Marine Stereo with Internal UNI-Dock
Features:

• Internal UNI-Dock
• Fusion-Link Control (Wired and Wireless)
• A2DP/AVRCP Bluetooth Streaming
• Apple iOS and MTP Android/Windows Media Playback
• Dual-USB
• DAB+ Ready
• Optically Bonded LCD
• Multi-Zone Technology
• Class-D Amplifier
• Side-Fin Cooling
• Glass Filled Composite Chassis
• True-Marine Designed and Engineered

Fusion MS-UD650 Marine Stereo with Internal UNI-Dock
Specifications:

• Amplifier: Class-D 4 x 70W (@ 2 Ω)
• Audio Format: MP3, M4A, FLAC
• Audio Zones: 3 Zones (Zone 1 & 2 powered by internal
  amplifier)
• Auxiliary: 2 stereo inputs
• Bluetooth: A2DP Audio Streaming with AVRCP Support and
  FUSION-Link remote control (sold
  separately)

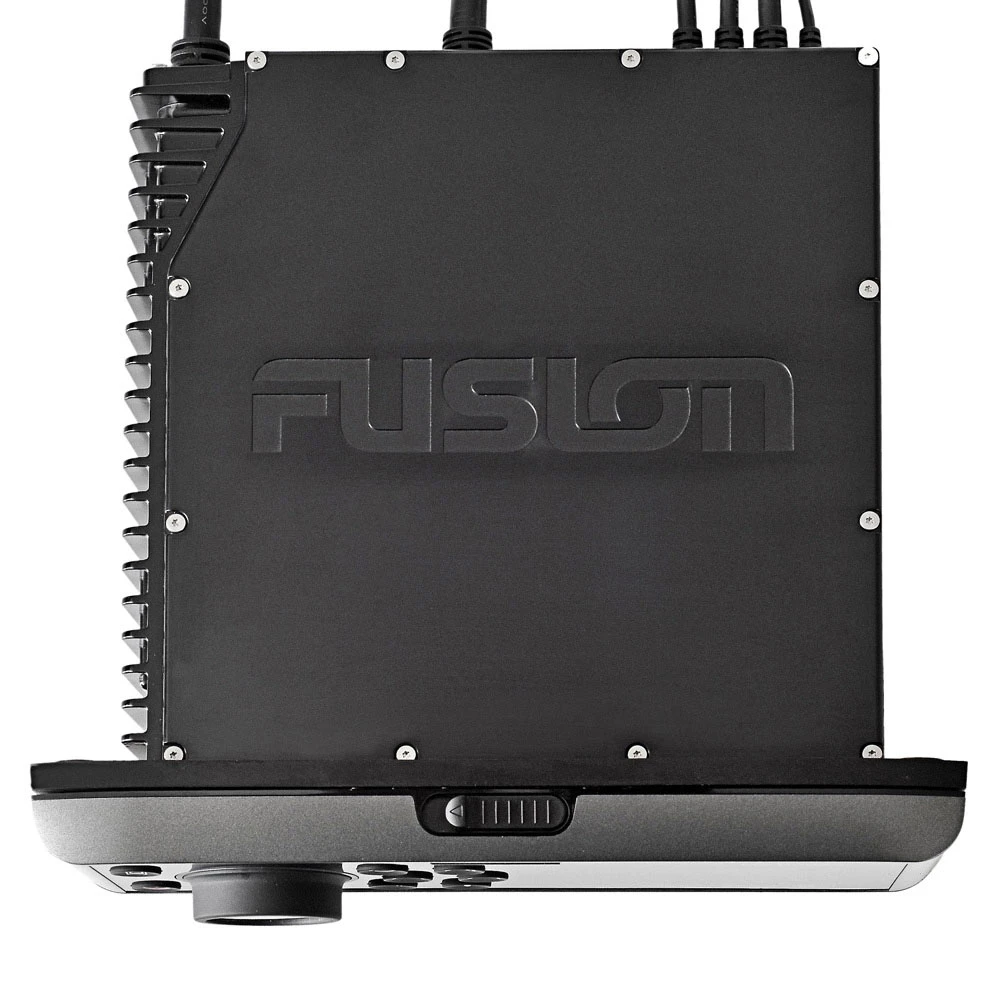

• Chassis: Glass Filled Composite with Aluminium Heat Sink
• Display: 128 x 64 Mono Chrome Optically Bonded LCD
• MTP: Support for compatible Windows & Android media devices via
  USB
• Nameable Zones: Yes
• NMEA 2000: NMEA 2000 Certified LEN: 1
• Sub Out: 3 (1 per zone)
• Tuner: AM/FM with RDS

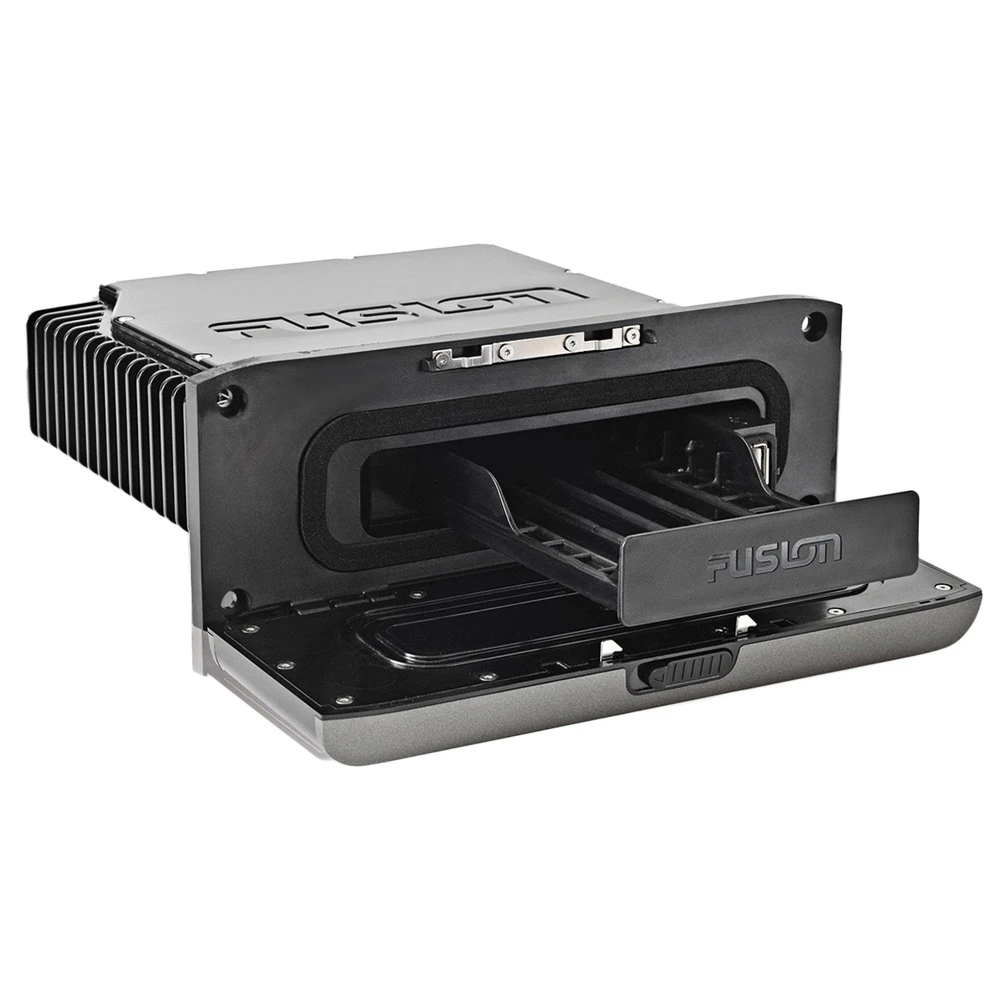

• UNI-Dock: Water resistant charging, docking and playback of
  supported iPod/iPhone/MTP/USB device (Media device subject to size
  constraints)
• USB: 2 x USB connectors (1 x External 1 x Internal)
• Water Resistance: 360° IPx5 fully sealed chassis
• iPhone Compatibility: iPhone 3GS, iPhone 4, iPhone 4S, iPhone
  5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus
• iPod Compatibility: iPod Classic, iPod Nano 4th-7th generation,
  iPod Touch 2nd-5th generation
• MTP Compatibility: HTC M9, HTC One, LG Nexus 4, Nokia Lumia
  830, Nokia Lumia 920, Nokia Lumia 930, Samsung Galaxy S3, Samsung
  Galaxy S4, Samsung Galaxy S5, Samsung Galaxy S6, Samsung Galaxy S6
  Edge, Sony Xperia Z, Sony Xperia Z3

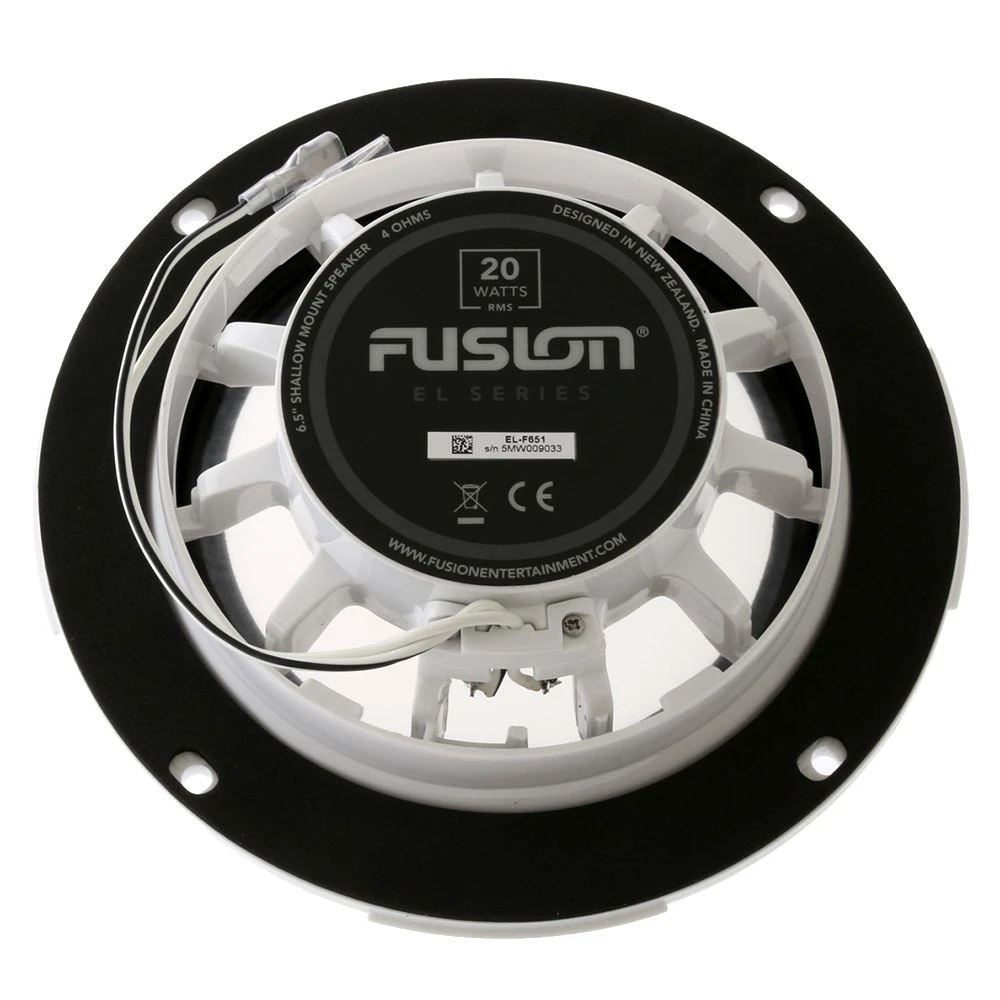

Fusion EL Series Shallow Mount Marine Speakers
Specifications:

• Speaker Size: 6.5″
• Peak Power: 80W
• RMS Power Rating: 20W
• Efficiency (1W/1M): 88dB
• Frequency response: 45Hz – 16kHz
• Impedance: 4 Ohms
• Cone Material: Polypropylene
• Mounting diameter: 130mm (5-1/8in) clearance
• Mounting depth: 43mm (1-11/16in) clearance
• Speaker wire: 18AWG with spade terminal
• Waterproof IP65
• Warranty: 1 year

NMEA 2000 Repeater The MS-NRX300 remote control can be
configured to display supported NMEA2000 network data from
compatible marine electronics connected to the same network. The
following information is available:

• Wind Direction
• Wind Speed
• Depth
• Speed over Ground
• Speed through Water
• Heading
• Position
• Water Temperature
• Atmospheric Pressure
• ETA

What’s in the box:

• 1 x MS-NRX300 Remote with 1m (3.28Ft) Drop Cable
• 1 x Dust Cover

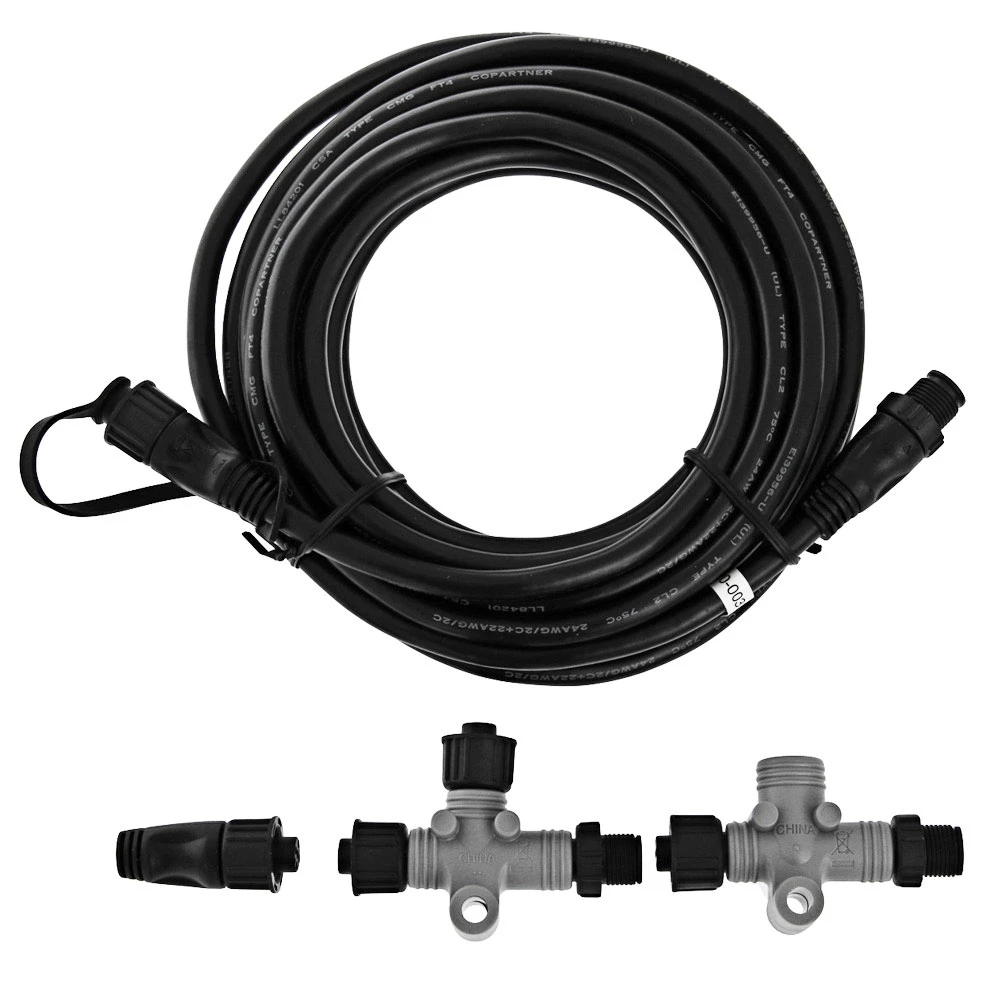

• 1 x 6m (20ft) NMEA 2000 Backbone Cable
• 1 x NMEA 2000 T-Connector
• 1 x NMEA 2000 Female Terminator
• 1 x NMEA 2000 In-line Terminator
• 1 x Hardware mounting kit
• 1 x Mounting template
• 1 x Installation Instructions
• 1 x Warranty card

Fusion MS-NRX300 Marine Wired Remote
Specifications:

• Compatible Fusion Products:
  MS-UD750,MS-AV750,MS-UD650,MS-AV650,MS-RA70N,MS-BB100,MS-RA205,MS-BB300,MS-IP700i,MS-AV700i
• NMEA 2000 Certification: LEN3
