Fusion MS-UD650 Marine Stereo Package With 6” Speakers

To play and protect

Pump up the volume with this powerful and feature-packed marine
stereo setup. We’ve bundled the Fusion MS-UD650 Marine
Stereo Package so you won’t need to look for other
components to make it work – it’s complete and ready to go. You get
the Fusion MS-UD650 Marine Stereo with a pair of 6″ speakers. Have
a blast with this one!

The Head Unit
With the constant evolution of entertainment technologies, Fusion
continues to dominate the forefront of the sector, pioneering
integrated systems for your favourite media devices. Introducing

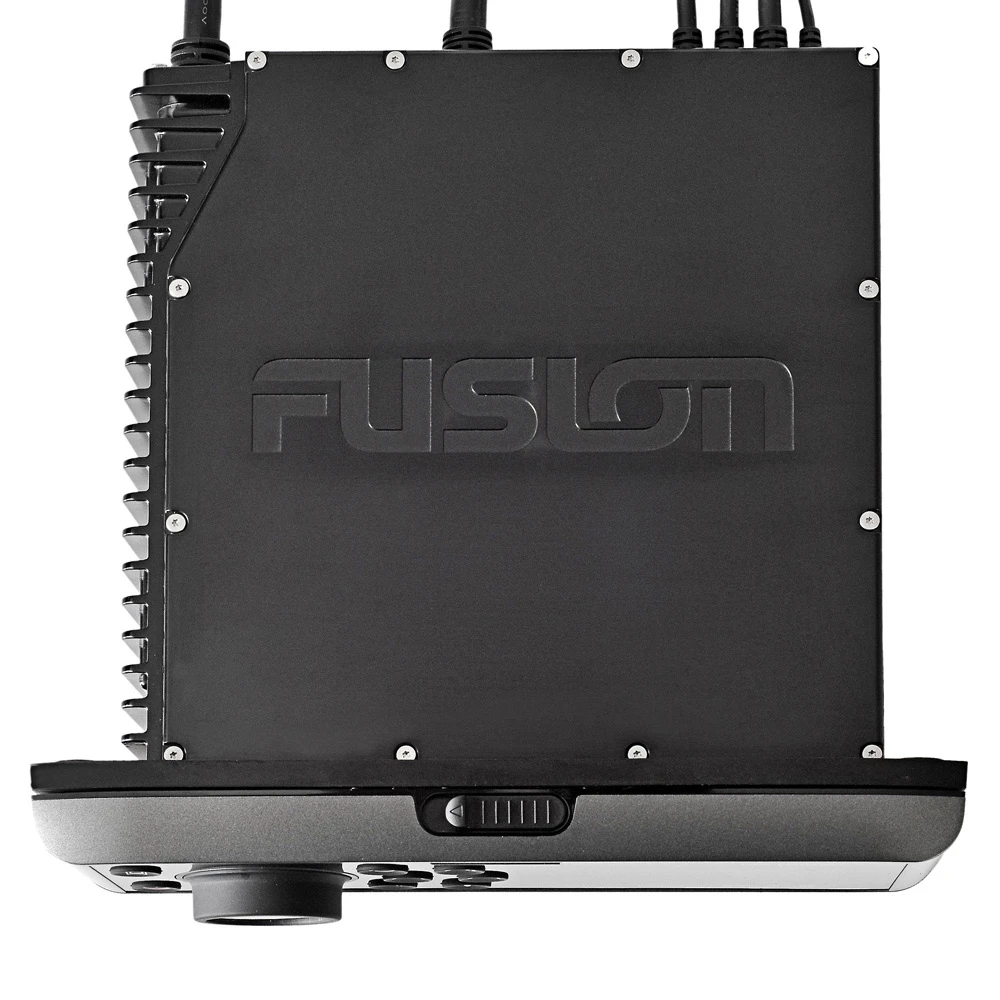

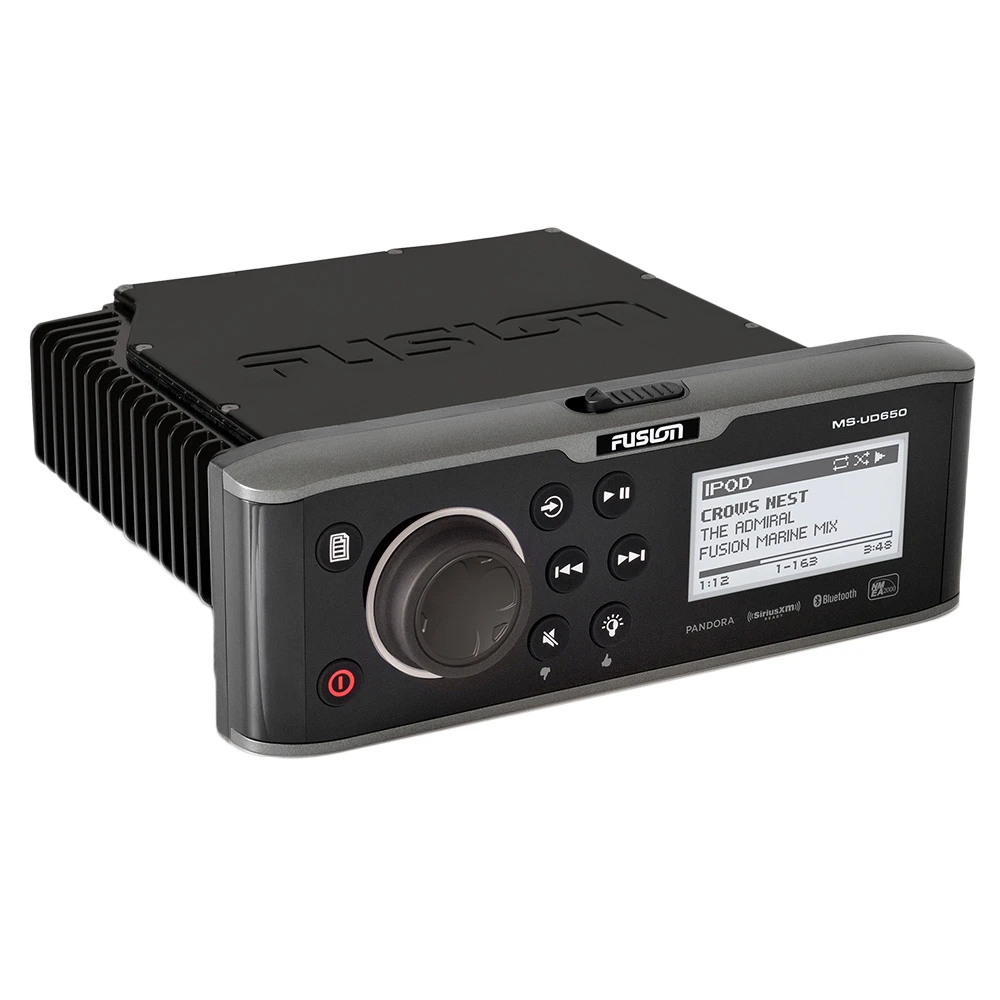

the Fusion MS-UD650 Marine Stereo with Internal
UNI-Dock. The water resistant UNI-Dock is designed for
safe charging and playback of the latest Apple iOS and MTP
Android/Windows media devices. Bluetooth A2DP audio streaming
capabilities and Fusion-Link NMEA 2000 connectivity make the 650
series an all-in-one and purpose-built solution for entertaining on
the high seas.

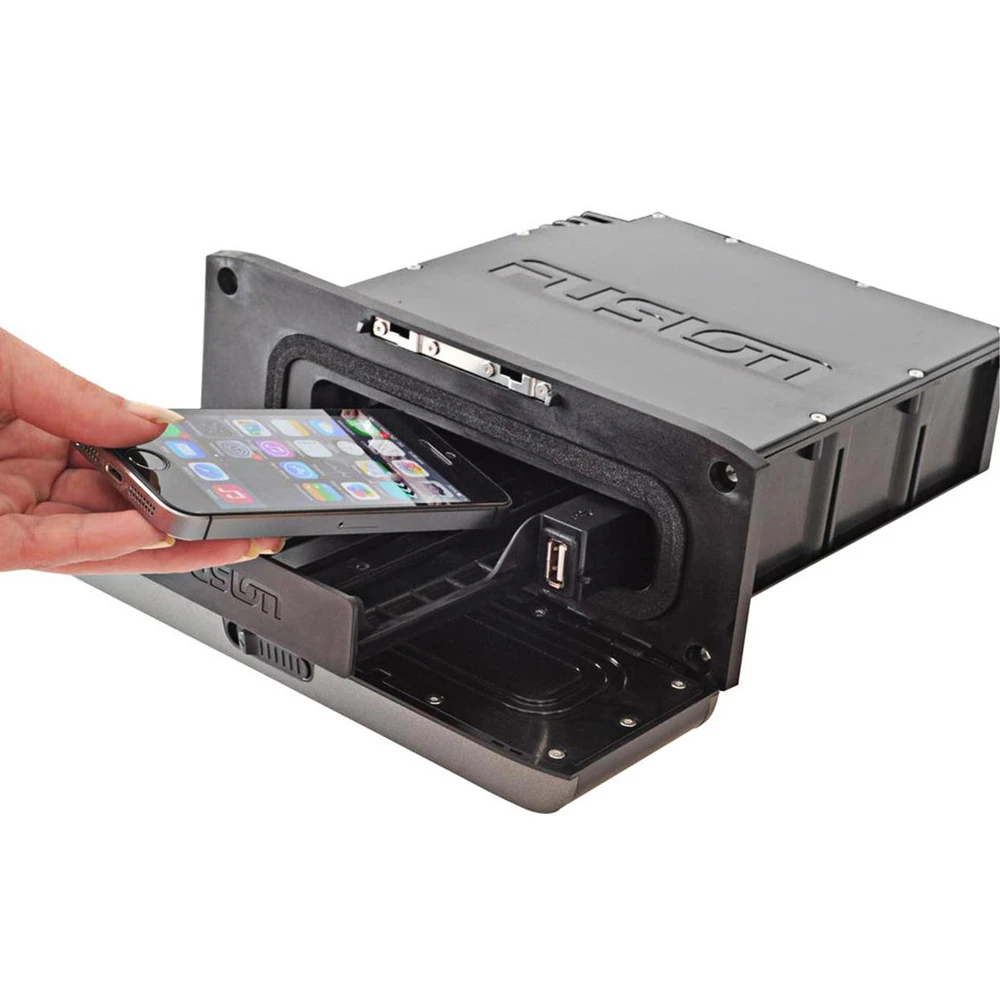

Internal UNI-Dock
Securely protect and charge and compatible Apple iOS or MTP
Android/Windows device, while enjoying your favourite
soundtrack.

Fusion-Link Control (Wired)
Enables direct stereo control from a compatible Multi-Function
Display (MFD) or MS-NRX200i wired remote control (sold
separately) when utilising an existing NMEA 2000
network.

Fusion-Link Control (Wireless)
Download the FREE Apple or Android FUSION-Link remote control app
from iTunes or Google Play to control the on-board entertainment
experience via Bluetooth.

A2DP/AVRCP Bluetooth Streaming
Stream your family’s favourite soundtrack from any compatible
device, with track, album and artist info displayed, with
navigation available from the stereo or connected device.

Apple iOS and MTP Android/Windows Media Playback
Unparalleled support of the world’s most popular media devices and
the smartest interface for browsing your music library.

Dual-USB
Internal and Rear accessible USB connectors are provided, to
support all your media device requirements.

Multi-Zone Technology
Three independent audio zones are available, each with advanced
localised menu controls, including zone naming.
Note: Line Out Zones require additional amplification.

Optically Bonded LCD
A widescreen LCD display, optically bonded to improve durability
and optimised for daylight viewing.

Class-D Amplifier
Provides higher RMS output than a standard stereo, for louder and
clearer audio while drawing less current.

Side-Fin Cooling
Amplifier components are optimally configured for the side-fin
aluminium heat sink, producing greater thermal efficiency.

Glass Filled Composite Chassis
Structurally rigid and incredibly lightweight, this improves
environmental protection and electrically isolates the chassis for
complete reliability.

True-Marine Designed and Engineered
Extensively tested to perform in the harsh marine environment.

The Speakers

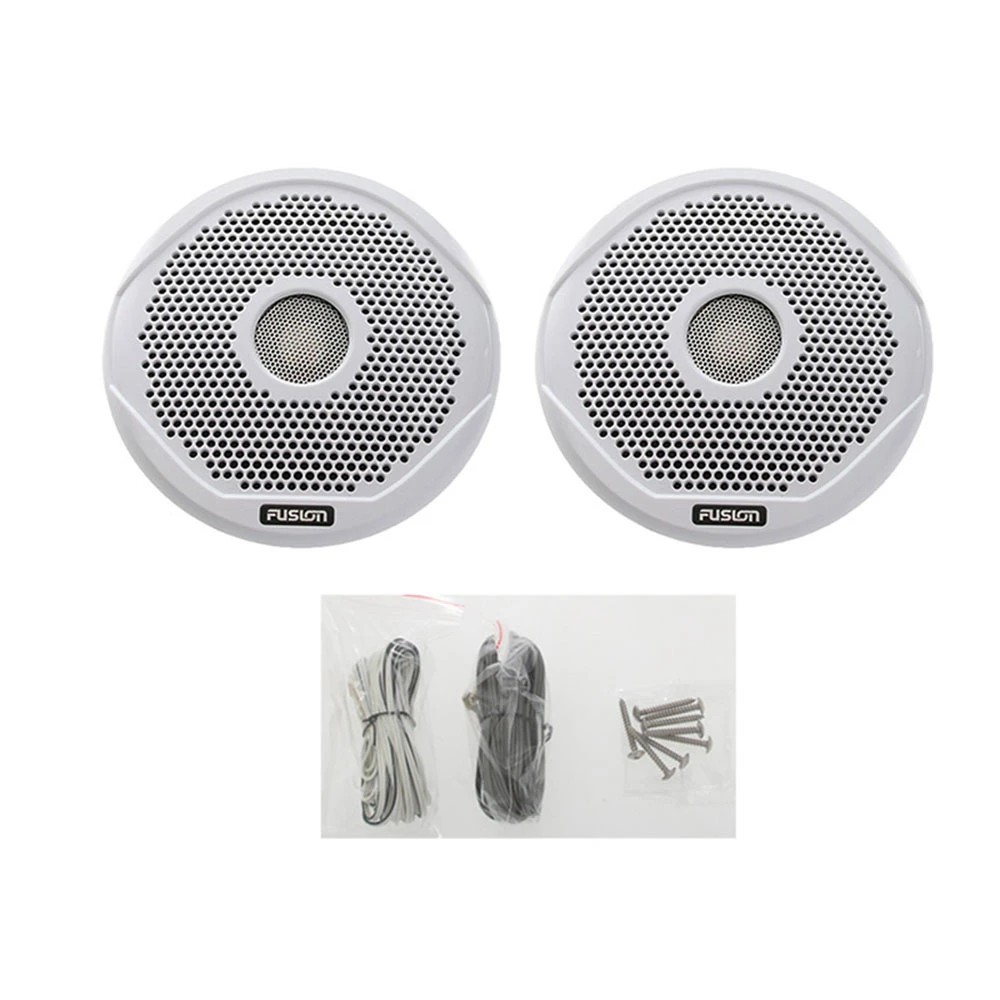

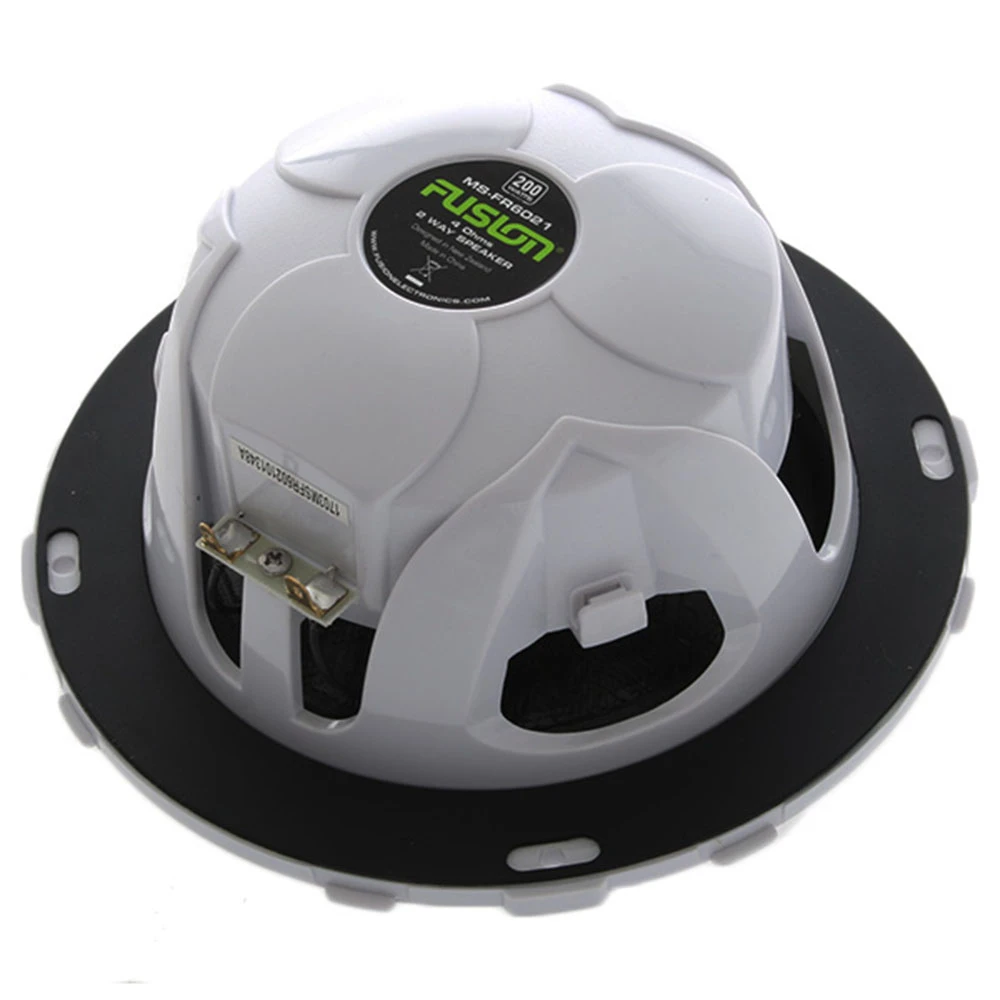

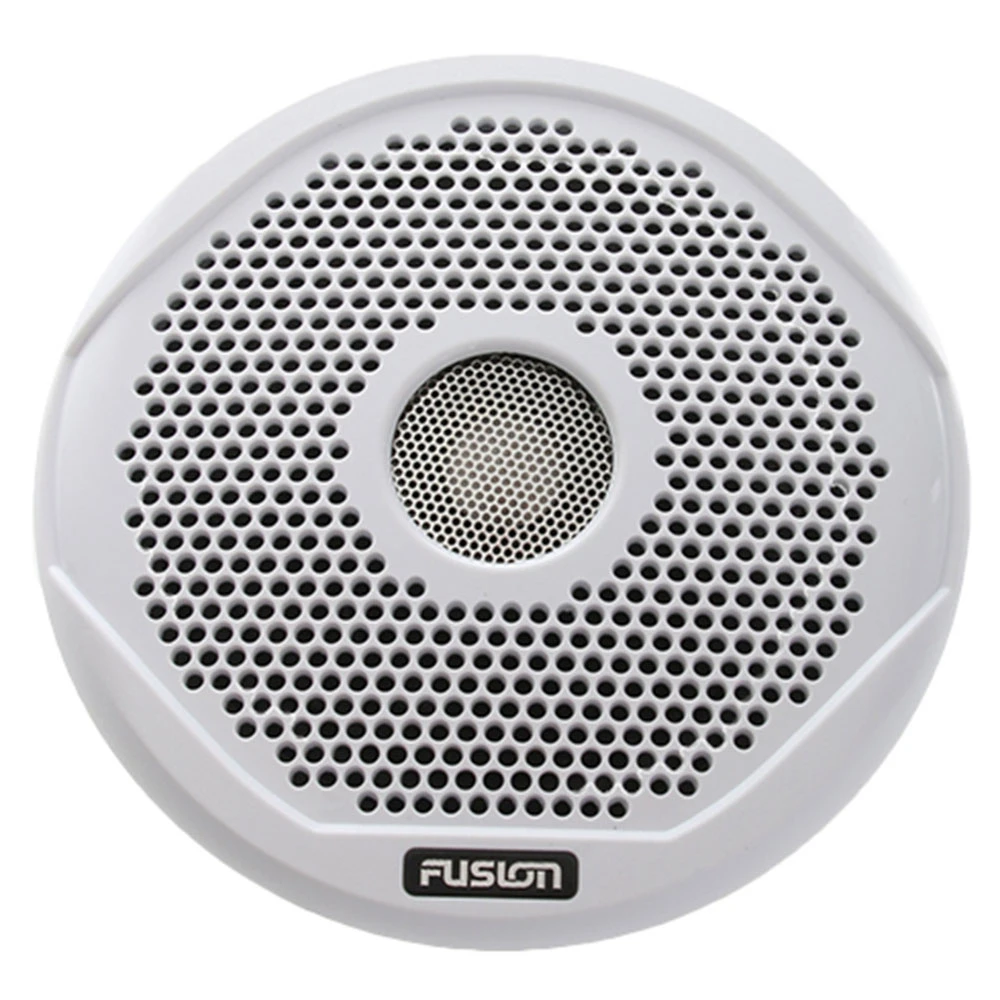

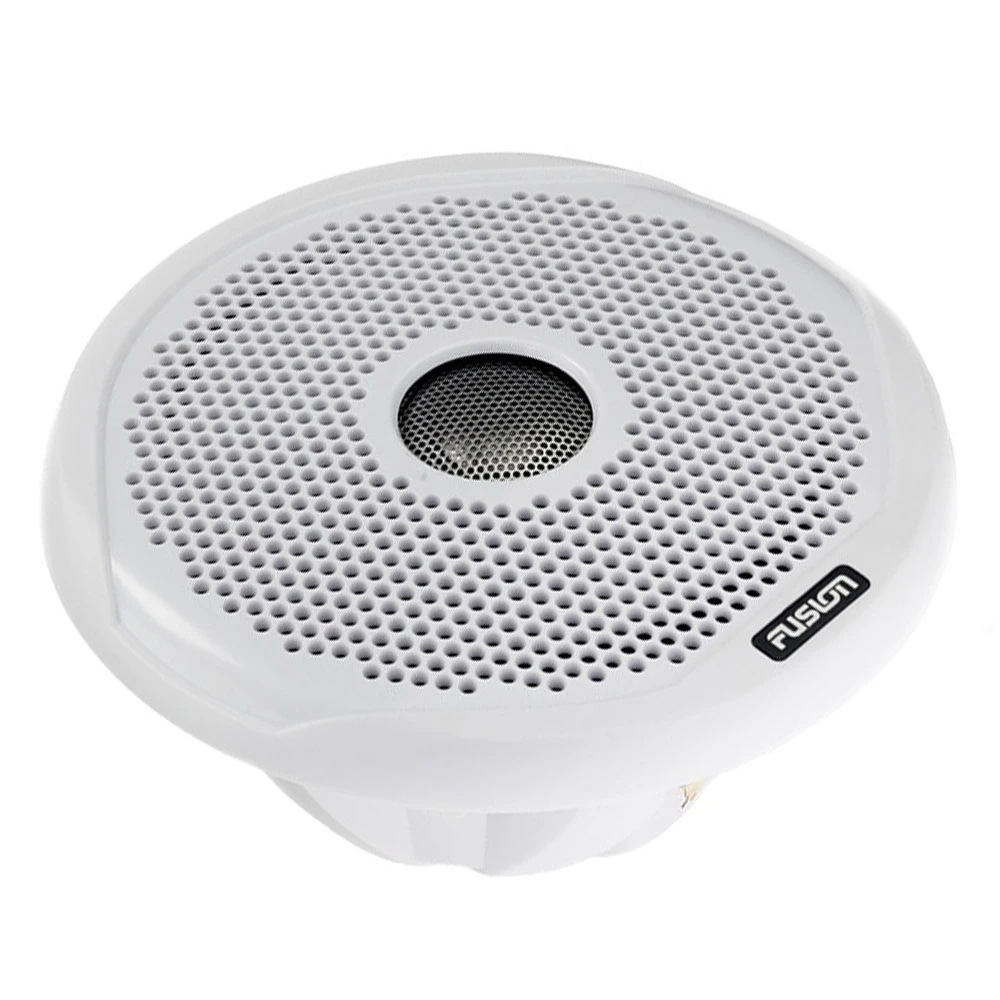

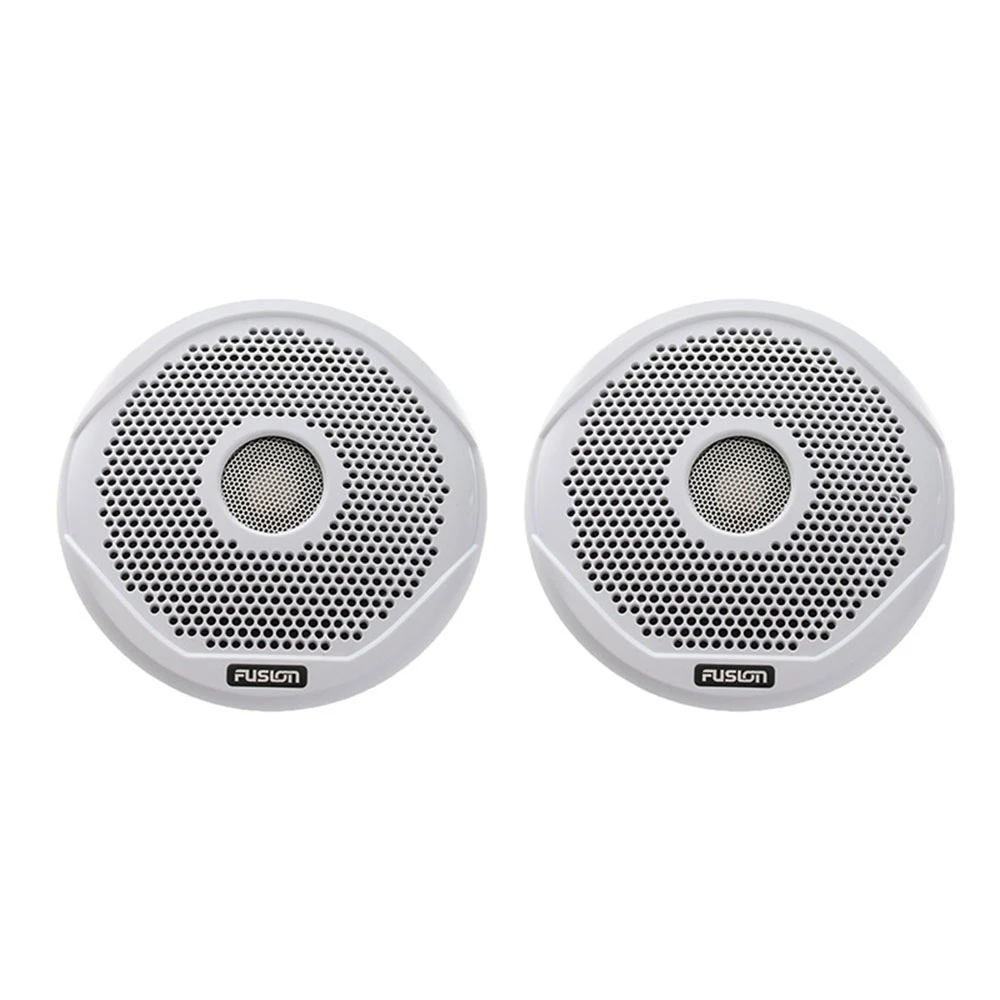

The Fusion MS-FR6021 6” True Marine 2-way Waterproof
Speakers 200W are designed and engineered specifically for
the harsh outdoors. Including design innovations and materials that
not only produce great sound, but also ensure a sustained
high-performance level during prolonged exposure to the elements.
Incorporating the latest German ‘CURV’ cone technology and titanium
tweeter dome for clear, powerful sound. ‘CURV’ technology
incorporates a woven fibre composite which is heat pressed to form
a lighter and stronger cone. This creates greater sound definition,
higher output and greater resistance to the outdoor.

Fusion MS-UD650 Marine Stereo with Internal UNI-Dock
Features:

• Internal UNI-Dock
• Fusion-Link Control (Wired and Wireless)
• A2DP/AVRCP Bluetooth Streaming
• Apple iOS and MTP Android/Windows Media Playback
• Dual-USB
• Optically Bonded LCD
• Class-D Amplifier
• Side-Fin Cooling
• Glass Filled Composite Chassis
• True-Marine Designed and Engineered

Fusion MS-UD650 Marine Stereo with Internal UNI-Dock
Specifications:

• Amplifier: Class-D 4 x 70W (@ 2 Ω)
• Audio Format: MP3, M4A, FLAC
• Audio Zones: 3 Zones (Zone 1 & 2 powered by internal
  amplifier)
• Auxiliary: 2 stereo inputs
• Bluetooth: A2DP Audio Streaming with AVRCP Support and
  FUSION-Link remote control (sold
  separately)
• Chassis: Glass Filled Composite with Aluminium Heat
  Sink
• Display: 128 x 64 Mono Chrome Optically Bonded LCD
• MTP: Support for compatible Windows & Android media devices via
  USB
• Nameable Zones: Yes
• NMEA 2000: NMEA 2000 Certified LEN: 1
• Sub Out: 3 (1 per zone)
• Tuner: AM/FM with RDS
• UNI-Dock: Water resistant charging, docking and playback of
  supported iPod/iPhone/MTP/USB device (Media device subject to size
  constraints)
• USB: 2 x USB connectors (1 x External 1 x Internal)
• Water Resistance: 360° IPx5 fully sealed chassis
• iPhone Compatibility: iPhone 3GS, iPhone 4, iPhone 4S, iPhone
  5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus
• iPod Compatibility: iPod Classic, iPod Nano 4th-7th generation,
  iPod Touch 2nd-5th generation
• MTP Compatibility: HTC M9, HTC One, LG Nexus 4, Nokia Lumia
  830, Nokia Lumia 920, Nokia Lumia 930, Samsung Galaxy S3, Samsung
  Galaxy S4, Samsung Galaxy S5, Samsung Galaxy S6, Samsung Galaxy S6
  Edge, Sony Xperia Z, Sony Xperia Z3

Fusion MS-FR6021 6” True Marine 2-way Waterproof Speakers
200W Features:

• True Environment Protection – Designed to withstand the harsh
  outdoor environment and comply with International ASTM Standards
  for UV Stability (ASTM-D4329) and Salt/Fog Resistance
  (ASTM-B117)
• True Waterproof Design – Complies with IP65 Waterproof and Dust
  Standards and features a fully sealed cross-over, magnet and
  tweeter housing with waterproof cone and surrounds
• True Power Saving – High efficiency design reduces battery
  drain
• True System Flexibility – Two different pairs of speaker
  grilles are provided in the box (Ice White and Midnight Black),
  catering to the varying aesthetics of most RV’s and Campers. For
  unique styling of your FUSION speaker installation, add the
  impressive chrome MS-FR6021GS speaker grille (sold
  separately)
• Curv Cone Technology – Self reinforced polypropylene composite.
  Heat pressed to form a lighter, stronger cone – creating greater
  sound definition and higher output
• Titanium Tweeter Dome – Reproduces bright and critical detail
  for the true audiophile experience
• Water Resistant Design – Complies with International IP65 water
  and dust resistant standards. Featuring a fully sealed crossover,
  magnet and tweeter housing

Fusion MS-FR6021 6” True Marine 2-way Waterproof Speakers
200W Specifications:

• Mounting Depth: 71.5mm (2-13/16)
• Efficiency (1W/1M): 90dB
• Frequency Response: 70 – 22kHz
• Impedance: 4 Ohm
• Peak Power (Watts): 200
• Tweeter Type: Titanium Dome

Warranty: The MS-FR6021 is covered by a
industry leading 3 year limited consumer warranty.

Fusion MS-FR6021 6” True Marine 2-way Waterproof
Speakers 200W Mounting Template
