Fusion MS-UD650 Marine Stereo With Internal UNI-Dock

To play and protect

With the constant evolution of entertainment technologies, Fusion
continues to dominate, pioneering integrated systems for your
favourite media devices. Introducing the Fusion MS-UD650
Marine Stereo with Internal UNI-Dock. The water resistant
UNI-Dock is designed for safe charging and playback of the latest
Apple iOS and MTP Android/Windows media devices. Bluetooth A2DP
audio streaming capabilities and Fusion-Link NMEA 2000 connectivity
make the 650 series an all-in-one and purpose-built solution for
entertaining on the high seas.

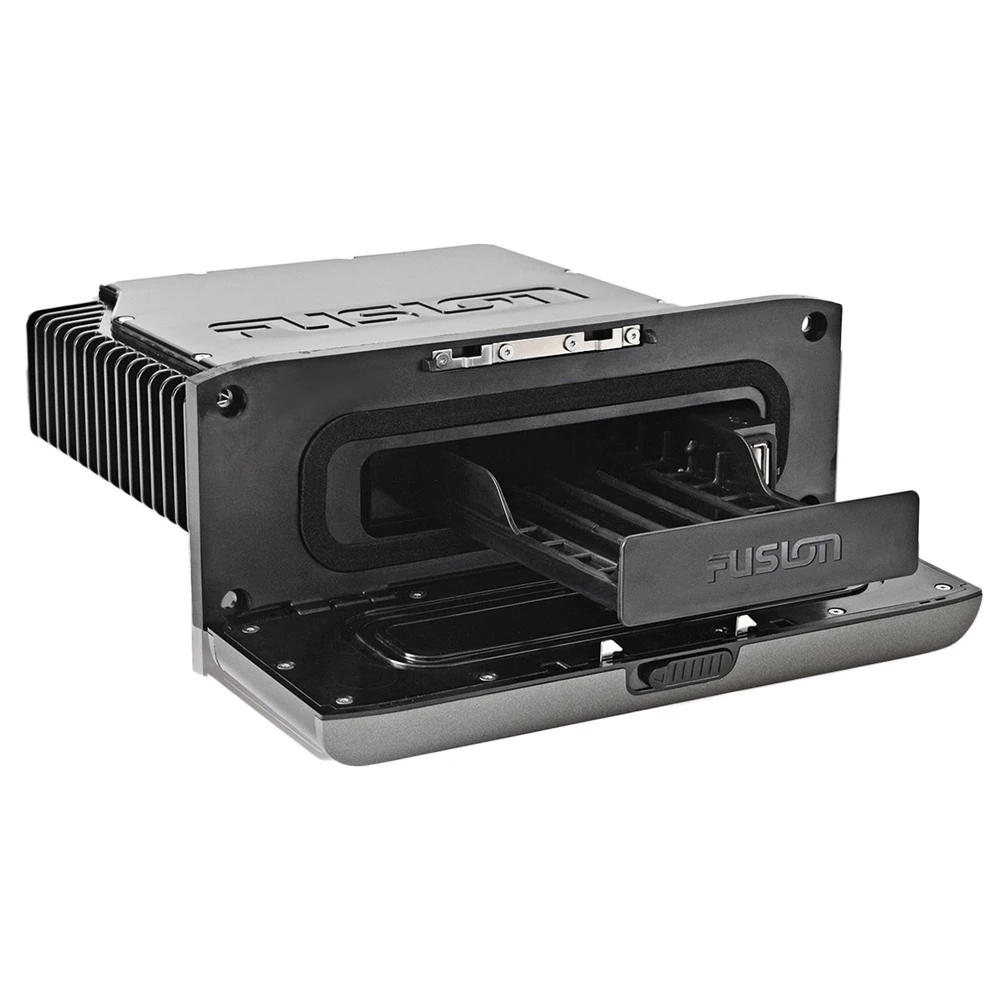

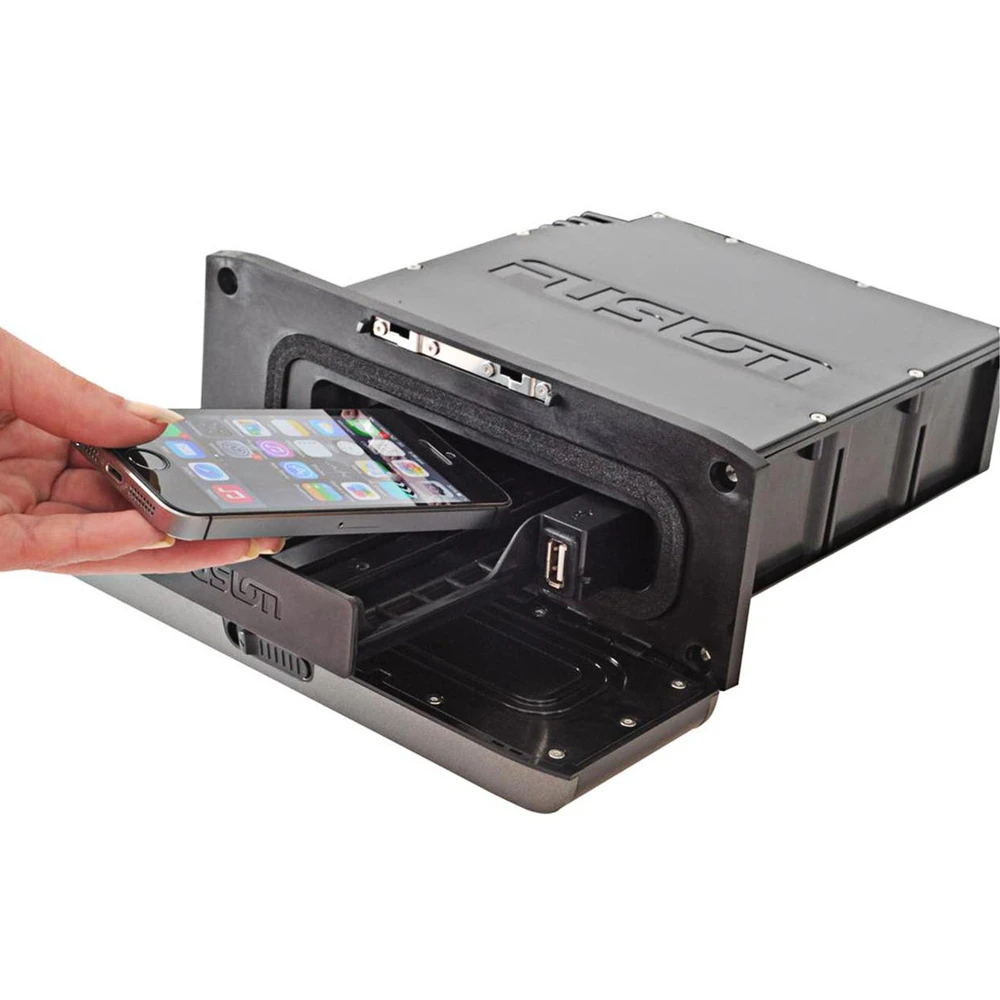

Internal UNI-Dock
Securely protect and charge and compatible Apple iOS or MTP
Android/Windows device, while enjoying your favourite
soundtrack.

Fusion-Link Control (Wired)
Enables direct stereo control from a compatible Multi-Function
Display (MFD) or MS-NRX200i wired remote control (sold
separately) when utilising an existing NMEA 2000
network.

Fusion-Link Control (Wireless)
Download the FREE Apple or Android FUSION-Link remote control app
from iTunes or Google Play to control the on-board entertainment
experience via Bluetooth.

A2DP/AVRCP Bluetooth Streaming
Stream your family’s favourite soundtrack from any compatible
device, with track, album and artist info displayed, with
navigation available from the stereo or connected device.

Apple iOS and MTP Android/Windows Media Playback
Unparalleled support of the world’s most popular media devices and
the smartest interface for browsing your music library.

Dual-USB
Internal and Rear accessible USB connectors are provided, to
support all your media device requirements.

Multi-Zone Technology
Three independent audio zones are available, each with advanced
localised menu controls, including zone naming.
Note: Line Out Zones require additional amplification.

Optically Bonded LCD
A widescreen LCD display, optically bonded to improve durability
and optimised for daylight viewing.

Class-D Amplifier
Provides higher RMS output than a standard stereo, for louder and
clearer audio while drawing less current.

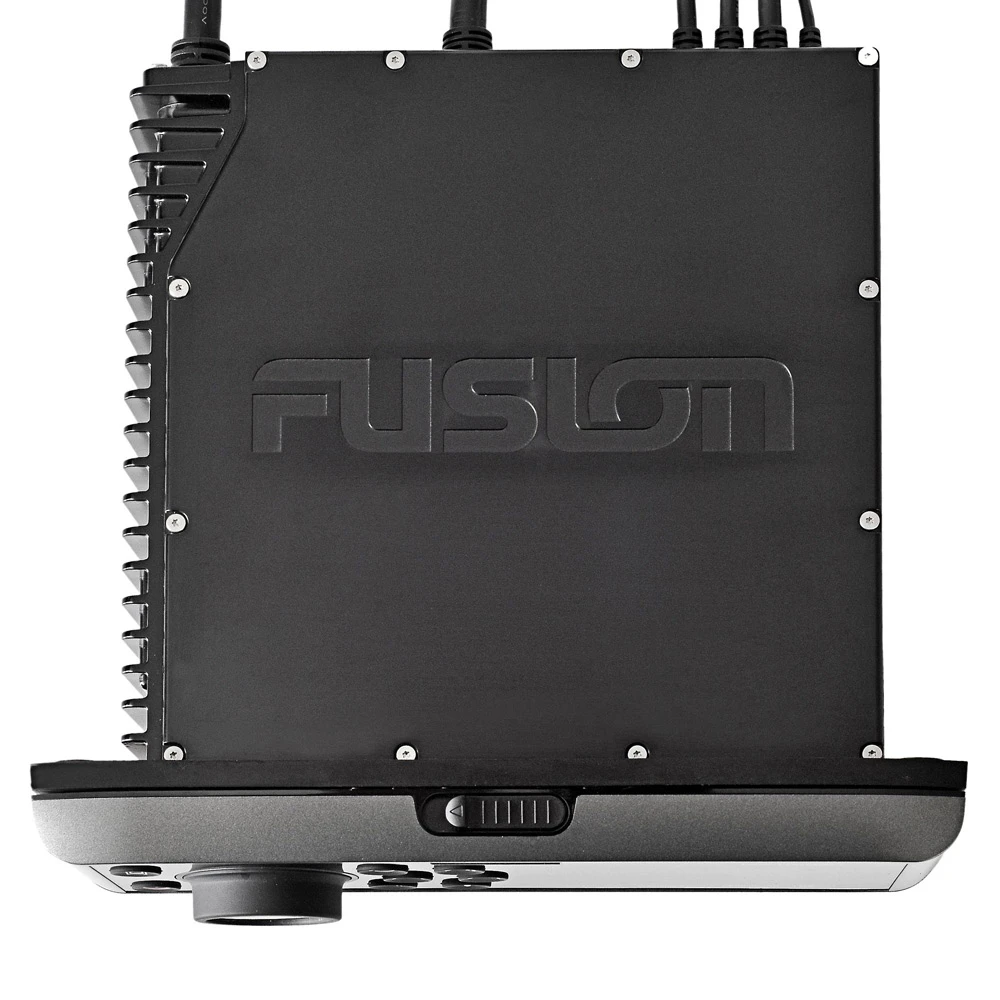

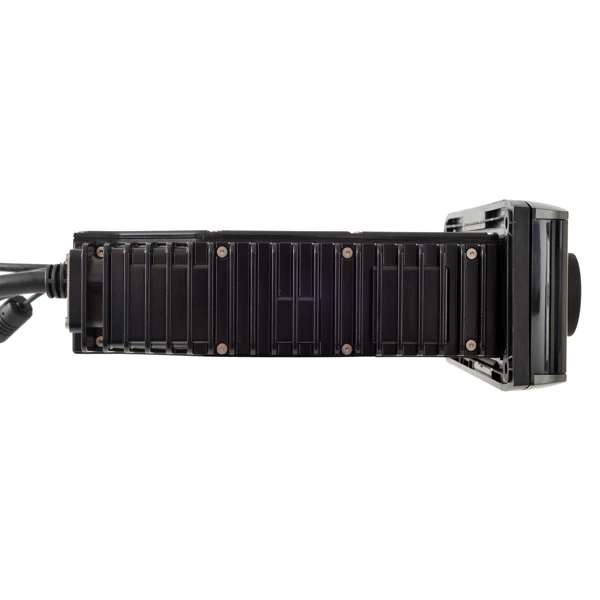

Side-Fin Cooling
Amplifier components are optimally configured for the side-fin
aluminium heat sink, producing greater thermal efficiency.

Glass Filled Composite Chassis
Structurally rigid and incredibly lightweight, this improves
environmental protection and electrically isolates the chassis for
complete reliability.

True-Marine Designed and Engineered
Extensively tested to perform in the harsh marine environment.

Fusion MS-UD650 Marine Stereo with Internal UNI-Dock
Features:

• Internal UNI-Dock
• Fusion-Link Control (Wired and Wireless)
• A2DP/AVRCP Bluetooth Streaming
• Apple iOS and MTP Android/Windows Media Playback
• Dual-USB
• DAB+ Ready
• Optically Bonded LCD
• Multi-Zone Technology
• Class-D Amplifier
• Side-Fin Cooling
• Glass Filled Composite Chassis
• True-Marine Designed and Engineered

Fusion MS-UD650 Marine Stereo with Internal UNI-Dock
Specifications:

• Amplifier: Class-D 4 x 70W (@ 2 Ω)
• Audio Format: MP3, M4A, FLAC
• Audio Zones: 3 Zones (Zone 1 & 2 powered by internal
  amplifier)
• Auxiliary: 2 stereo inputs
• Bluetooth: A2DP Audio Streaming with AVRCP Support and
  FUSION-Link remote control (sold
  separately)
• Chassis: Glass Filled Composite with Aluminium Heat
  Sink
• Display: 128 x 64 Mono Chrome Optically Bonded LCD
• MTP: Support for compatible Windows & Android media devices via
  USB
• Nameable Zones: Yes
• NMEA 2000: NMEA 2000 Certified LEN: 1
• Sub Out: 3 (1 per zone)
• Tuner: AM/FM with RDS
• UNI-Dock: Water resistant charging, docking and playback of
  supported iPod/iPhone/MTP/USB device (Media device subject to size
  constraints)
• USB: 2 x USB connectors (1 x External 1 x Internal)
• Water Resistance: 360° IPx5 fully sealed chassis
• iPhone Compatibility: iPhone 3GS, iPhone 4, iPhone 4S, iPhone
  5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus
• iPod Compatibility: iPod Classic, iPod Nano 4th-7th generation,
  iPod Touch 2nd-5th generation
• MTP Compatibility: HTC M9, HTC One, LG Nexus 4, Nokia Lumia
  830, Nokia Lumia 920, Nokia Lumia 930, Samsung Galaxy S3, Samsung
  Galaxy S4, Samsung Galaxy S5, Samsung Galaxy S6, Samsung Galaxy S6
  Edge, Sony Xperia Z, Sony Xperia Z3
