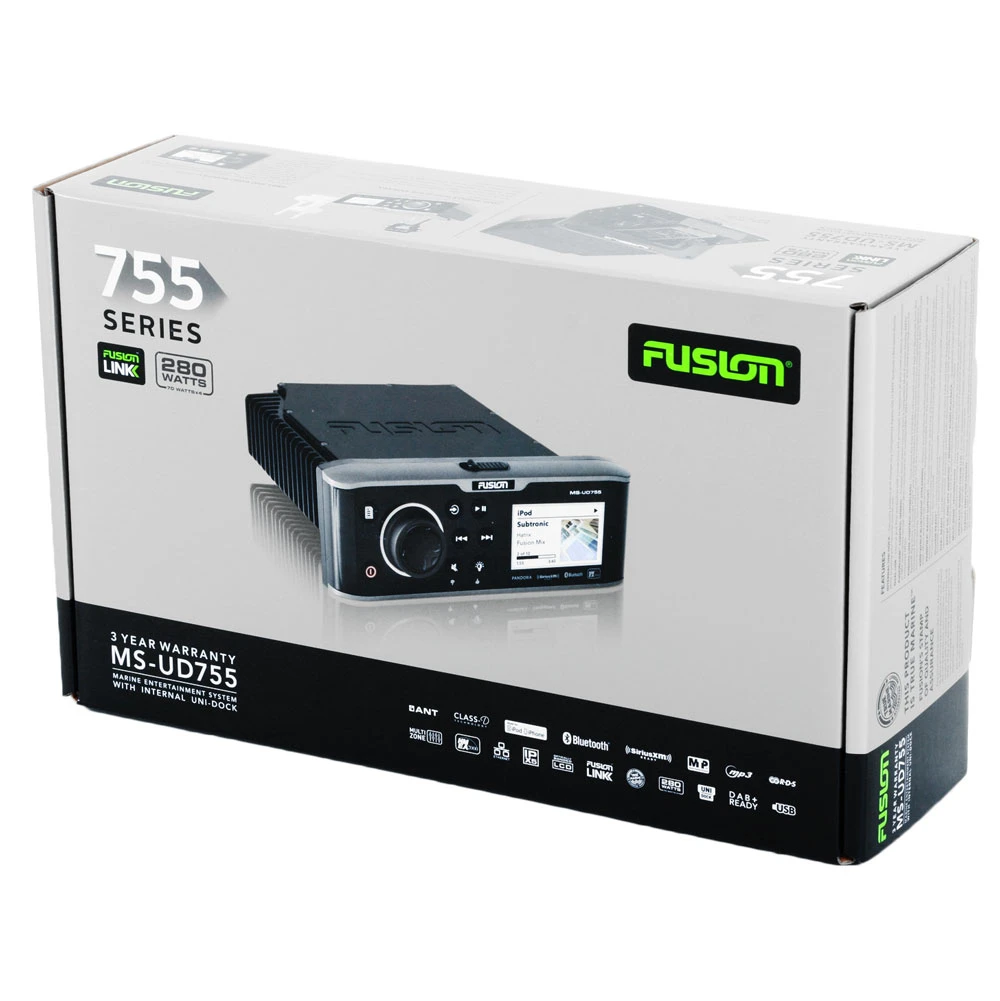

Fusion MS-UD755 Marine Stereo With Internal UNI-Dock

Unparalleled sound performance and media integration

The Fusion MS-UD755 Marine Stereo delivers unparalleled sound performance and media integration. Featuring an internal UNI-Dock for charging, environmental protection and playback of the latest compatible Apple iOS, MTP Windows/Android and USB media devices, including Bluetooth A2DP/AVRCP audio streaming capabilities, support for advanced FUSION-Link NMEA 2000/Ethernet/Wi-Fi/Bluetooth connectivity, the FUSION 755 Marine Entertainment System is the next generation in the FUSION dynasty.

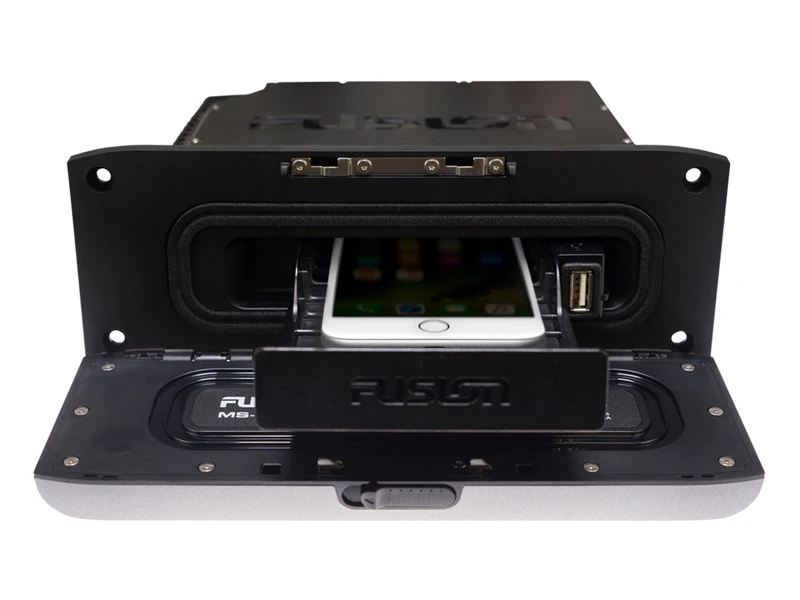

Internal UNI-Dock
Securely protect and charge your compatible Apple iOS or MTP Android/Windows device, while enjoying your favourite soundtrack.

A2DP/AVRCP Bluetooth Streaming
Stream your family’s favourite soundtrack from any compatible
device, with track, album and artist info displayed, with
navigation available from the stereo or connected device.

Optically Bonded LCD
A colour widescreen LCD display, optically bonded to improve
durability and optimised for daylight viewing.

Fusion MS-UD755 Marine Stereo with Internal UNI-Dock

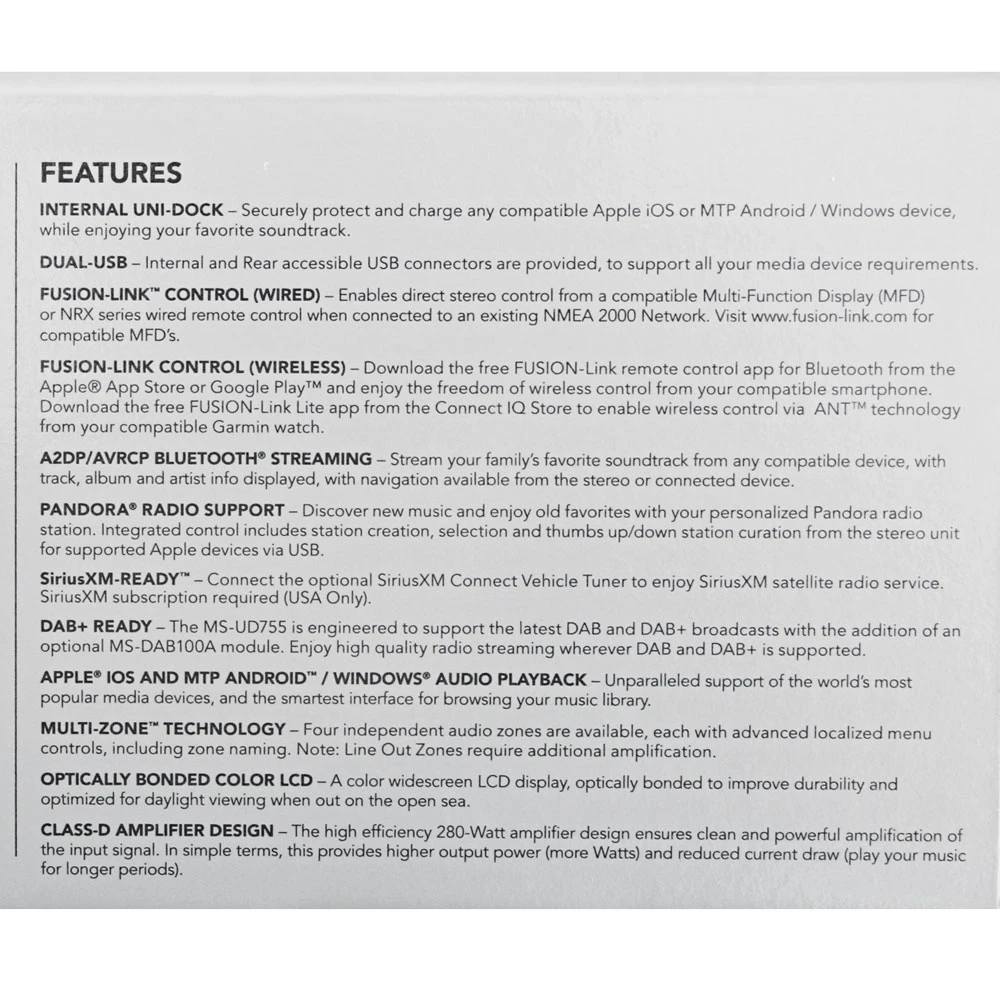

Features:

• Internal UNI-Dock
• FUSION-Link Control (Wired)
• FUSION-Link Control (Wireless)
• A2DP/AVRCP Bluetooth Streaming
• Apple iOS and MTP Android/Windows Media Playback
• Multi-Zone Technology
• Optically Bonded LCD
• Dual-USB
• Side-Fin Cooling
• Glass Filled Composite Chassis
• Class-D Amplifier

Fusion MS-UD755 Marine Stereo with Internal UNI-Dock

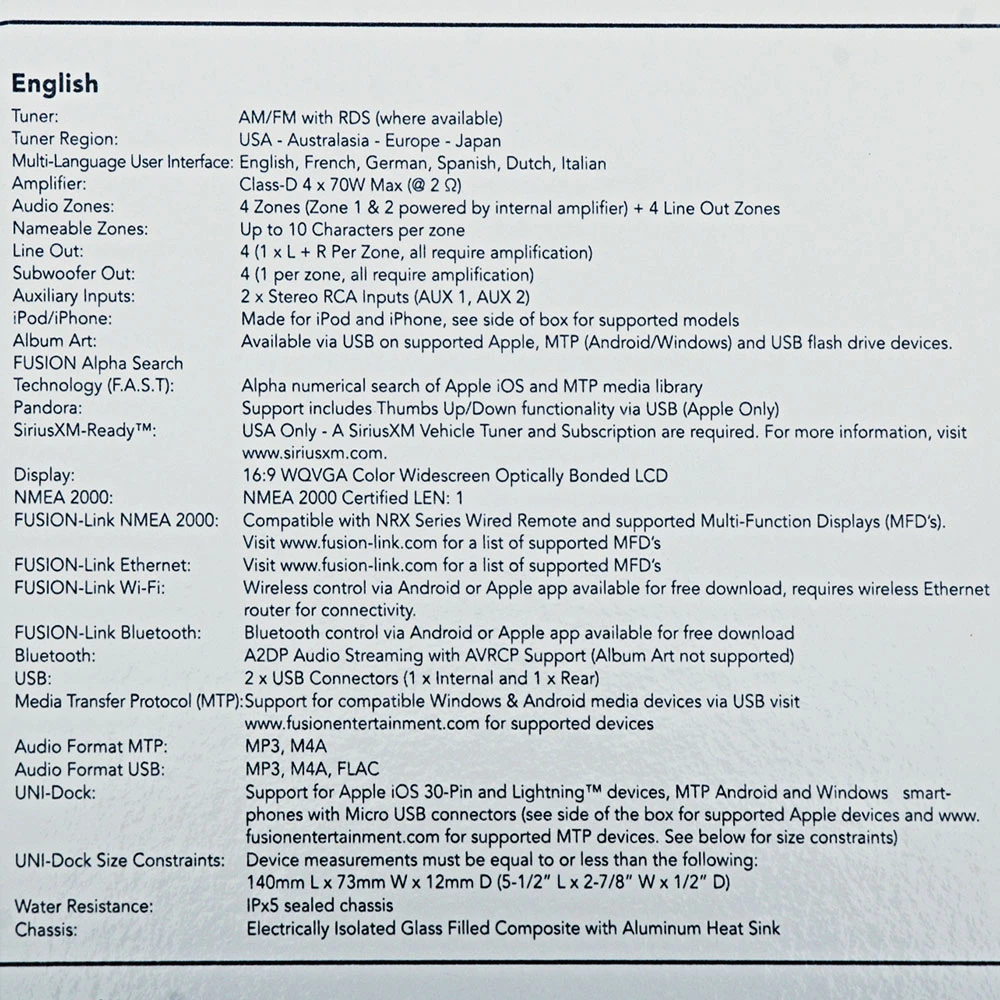

Specifications:

• Tuner: AM/FM with RDS where available
• Tuner Region: USA – Australasia – Europe – Japan
• Multi-Language User Interface: English, French, German,
  Spanish, Dutch, Italian
• Amplifier: Class-D 4 x 70W (@ 2 Ω)
• Audio Zones: 4 Zones (Zone 1 & 2 powered by internal
  amplifier)
• Nameable Zones: Yes – Up to 10 characters per zone
• Line Out: 4 (1 x L + R Per Zone, all require
  amplification)
• Sub Out: 4 (1 per zone)
• Auxiliary: 2 stereo inputs
• iPod/iPhone: Made for iPod and iPhone
• Album Art: Available via USB on supported Apple, MTP and USB
  flash drive devices
• Display: 16:9 WQVGA Colour Widescreen Optically Bonded
  LCD
• NMEA 2000: NMEA 2000 Certified LEN: 1
• FUSION-Link: NMEA 2000 or Ethernet visit www.fusion-link.com
  for compatible Multi-Function Displays (MFD). WiFi Remote Control
  app for Apple and Android
• Bluetooth: A2DP Audio Streaming with AVRCP Support (Album art
  not supported) FUSION-Link remote support
• USB: 2 X USB connectors (1 x External 1 x Internal)
• MTP: Support for compatible Windows and Android media devices
  via USB
• Audio Format: MP3, M4A, FLAC
• UNI-Dock: Water resistant charging, docking and playback of
  supported iPod/iPhone/MTP/USB device (Media device subject to size
  constraints)
• Water Resistance: 360° IPx5 fully sealed chassis
• Chassis: Glass Filled Composite with Aluminium Heat
  Sink
• DAB+ Ready: MS-DAB100A is required for DAB support, only
  available where DAB and DAB+ is broadcast
• Compatible Apple Devices: iPhone 7 Plus, iPhone 7, iPhone SE,
  iPhone 6 Plus, iPhone 6s Plus, iPhone 6/6s, iPhone 5/5c/5s/4s, iPod
  touch 6th/5th gen, iPod nano 7th gen
