Fusion Signature 2-Way Coaxial Marine Speakers 6.5in 230W

Designed by musicians and engineered by boaties

Pushing the boundaries of what is possible on the water, the
Fusion Signature 2-Way Coaxial Marine Speakers are
designed to provide unparalleled performance even when exposed to
the harshest marine conditions. Combining ‘CURV’ Cone composite
technology with a Silk Dome tweeter and fully sealed crossover
components, the Classic White Signature 6.5″ speaker system is an
elegant solution for premium on-water listening.

CURV Cone Technology
Incorporates CURV woven fibre composite which is heat pressed to
form a lighter and stronger cone that delivers greater sound
definition and higher output while also providing increased
protection from the marine conditions.

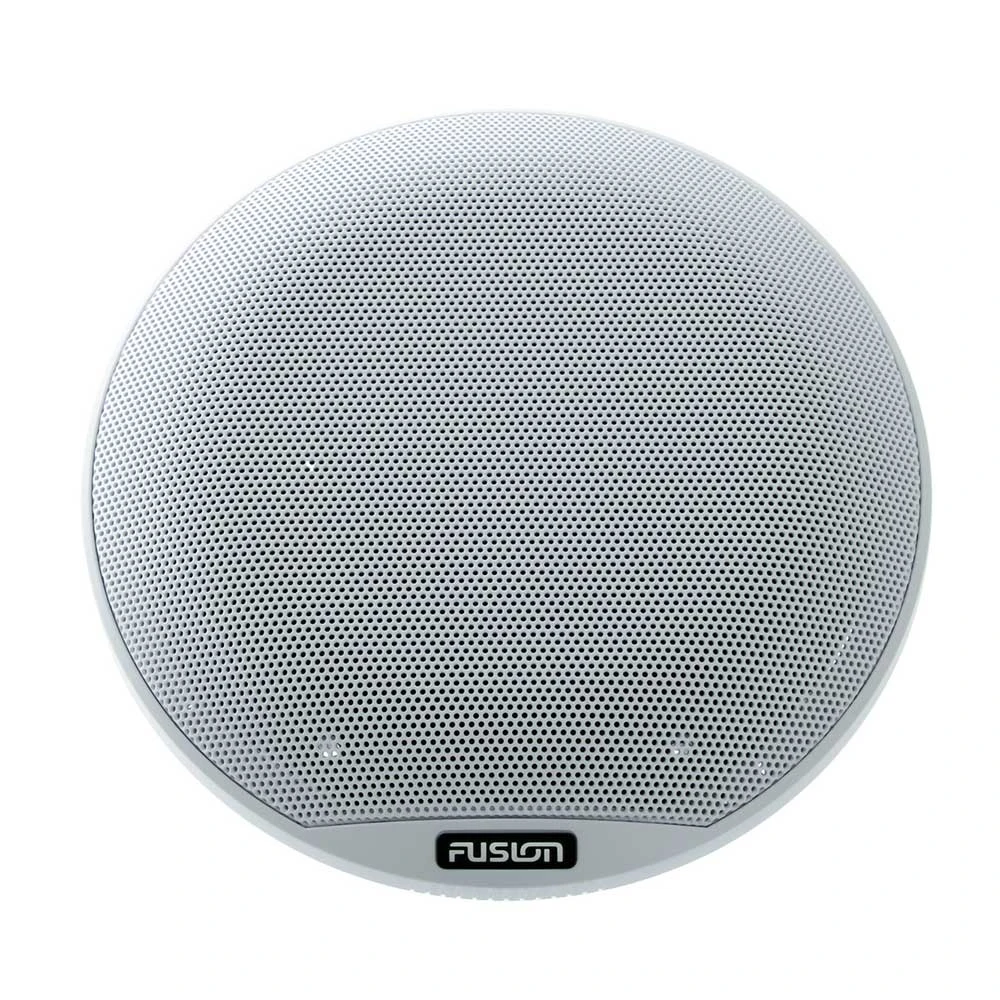

Perforated Metal Grille
This discreet, yet refined design is suitable for both indoor and
outdoor installation. The elegant Classic White finish is designed
to perfectly blend with the aesthetics of your vessel.

Fully Sealed Crossover Components
Provides full protection from the harsh marine environment, whilst
delivering an improved frequency response at the crossover point
for a detailed audio spectrum and new level of acoustic
performance.

Silk Dome Tweeter
Creates a smooth upper frequency response with increased
efficiency, producing crisp sound for unrivalled enjoyment.

IP65 Water Resistance Rating
Every Signature Series marine speaker undergoes extensive
environmental testing for ingress protection, ensuring they are
prepared for the marine environment. The Signature Series has
achieved an industry standard rating of IP65 – this indicates the
product’s protection against dust and water ingress. You can be
confident that your Signature Series marine speakers are designed
to withstand the harsh marine environment season after season.

The True-Marine Standard
As a True-Marine product, the Signature Series is designed and
engineered for the harsh marine environment. Once a product has
been subject to rigorous environmental testing and passed our
stringent True-Marine approval process, it is awarded the
accreditation and recognized with an industry-leading 3 year
consumer warranty.

Delivering a harmonious 230-Watt symphony, these 6.5″ speakers are
truly FUSION’s Signature.

Fusion Signature 2-Way Coaxial Marine Speakers
Features:

• CURV Cone Technology for greater sound definition and higher
  output
• Perforated Metal Grille – refined for indoor and outdoor
  installation
• Fully Sealed Crossover Components – full protection from harsh
  marine environment
• Silk Dome Tweeter creates a smooth upper frequency response
  with increased efficiency

Fusion Signature 2-Way Coaxial Marine Speakers
Specifications:

• Product Code: SG-F65W
• Configuration: Coaxial
• RMS Power rating (Watts): 75
• Peak power (Watts): 230
• Efficiency (1W/1M): 90db
• Frequency Response: 70Hz – 22kHz
• Impedance: 4 Ohms
• Tweeter Type: Silk Dome
• Cone Material: CURV
• Voice Coil Diameter: 1.3”
• Mounting Diameter: 136mm (5.35 in.)
• Mounting Depth: 79mm(3.11 in.)
