Fusion Signature Series 8 Channel Marine Amplifier

Introducing an impressive new addition to Fusion’s Signature
Series marine amplifier range: the SG-DA82000.

Fusion Signature Series amplifiers are purpose-built for the
marine environment. Boasting some of the most impressive
environmental protection available, they deliver a Signature
performance on the water like never before.

Fusion’s most efficient, stunning and powerful marine amplifier,
the SG-DA82000 also features a True-Marine design that will resist
corrosion. Its incredible 2000 Watt peak power will power up to 8
pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in
parallel) or up to 4 pairs of speakers at 2 Ohms (2 x 4 Ohm

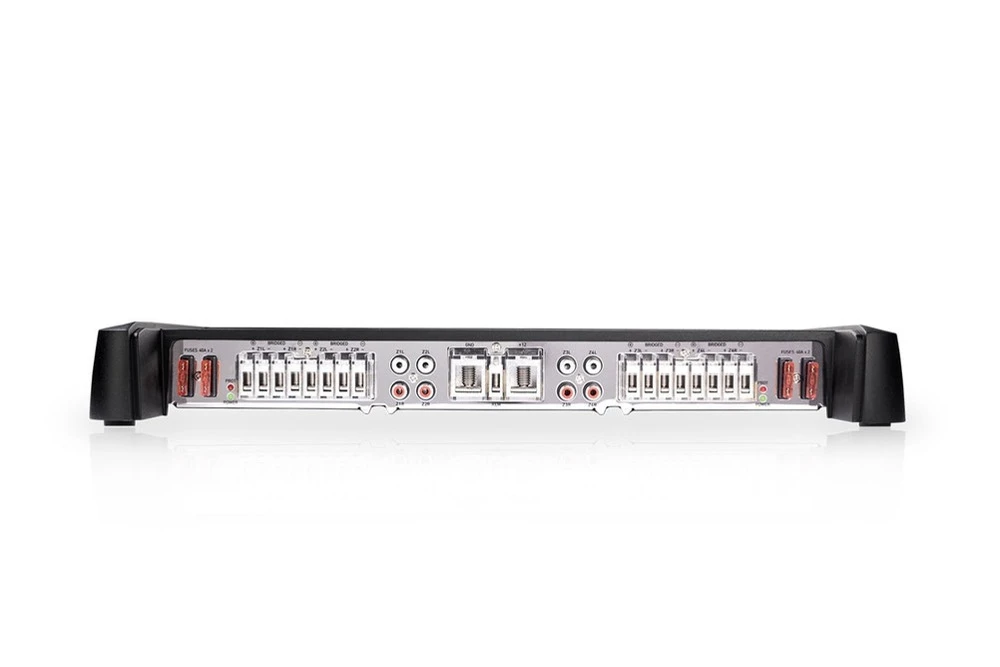

speakers per channel in parallel) and 2 subwoofers. RCA line-level
inputs allow for easy connection to new or existing systems.

The SG-DA82000 is Fusion’s first 8 channel, Class-D Hi-Fi marine
amplifier. The key benefit of a Class-D amplifier is that it has a
low battery drain with high output, making this the perfect
amplifier for the marine environment. The SG-DA82000 also has
conformal coated PCBs for maximum product life and performance,
plus the amplifier chassis is a heat sink, to reduce component core
temperature and increase efficiency.

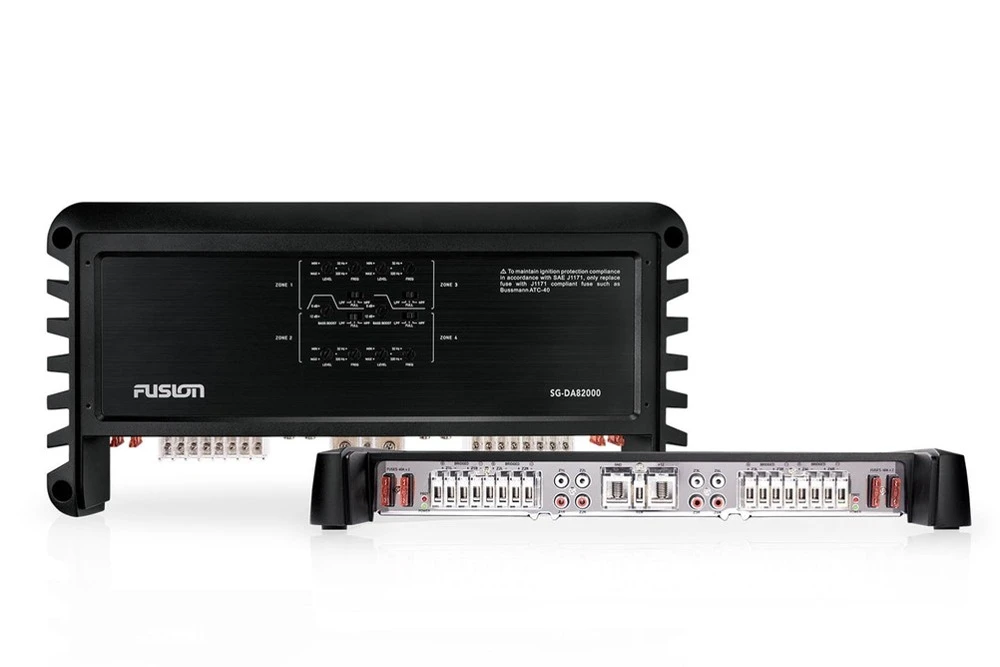

Undeniably a stand-out piece, the stunning stainless steel
mirror control panel cover conceals and protects all cable
connections and setting controls, with an attractive finish to
complement any installation.

This product is rated True-Marine and carries a 3-year limited
consumer warranty.

Class-D Amplifier Technology – The highly
efficient Class-D design provides 2000-Watts peak power whilst
drawing less current than a standard Class-AB amplifier. This
design provides increased efficiency and power output to your
speakers, letting you enjoy your music for longer.

2000 Watts Peak Power – With a peak power of
2000 watts, you can easily power up to 8 pairs of speakers or up to
4 pairs of speakers with 2 subwoofers.

Marine-Ready Design with Conformal Coated PCBs
– Extending the life of your amplifiers, the Signature
Series are designed specifically for marine use with conformal
coated PCBs to provide extra protection from the marine
elements.

Rigid Aluminum Alloy Heat Sink – Molded to form
a singular die-cast chassis, the fin layout is calculated with
precision to increase the surface area of the heat sink and improve
heat dissipation.

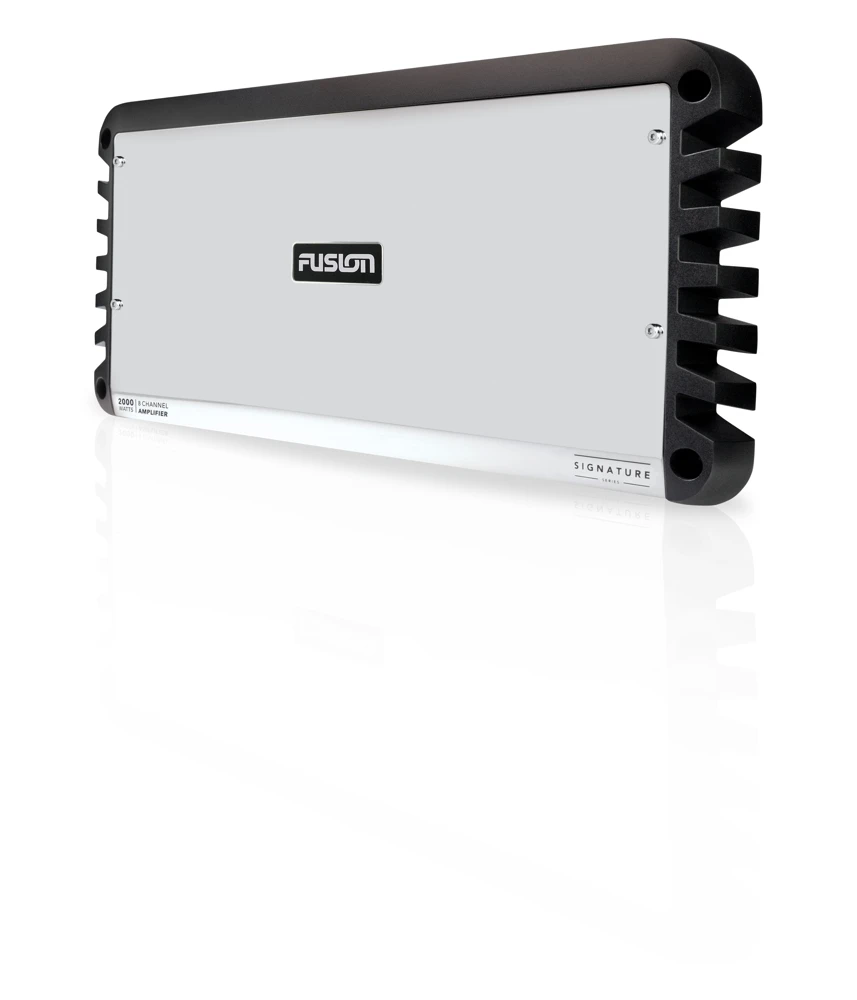

Stainless Mirror Finish – The polished
stainless-steel control panel cover conceals and protects all cable
connections and settings controls whilst providing an attractive
finish to complement any installation.

Speaker Configuration – Whether you require 2
Ohms per channel or 4 Ohms bridged, your Signature Series amplifier
has your installation options covered to achieve the optimum output
levels.

Connect up to two speakers per channel at 2 Ohms, or for extra
power, bridge two channels at 4 Ohms to connect two subwoofers.

Zone Designation – To align with the Fusion
entertainment system zone philosophy, the input and output
connections are labelled as zones.

True-Marine Design – Signature Series
amplifiers are perfect for the marine environment, and carry a
3-year warranty.

Specifications:

Frequency Response	10 Hz to 40 kHz (-3 dB @ 4 Ohm rated power)
Peak Power Output	2000 W
Rated Power Output (4 Ohm)	100 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)
Rated Power Output (2 Ohm)	140 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)
Rated Power Output (4 Ohm Bridged)	280 W rms x 4 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)
Input Sensitivity	0.3 V to 8 V rms, user adjustable
Input Impedance	7k Ohm nominal
High-Pass/Low-Pass Full Range Filter	Yes, user selectable
Filter Cross-Over Frequency	32 Hz to 320 Hz, user adjustable
Filter Cross-Over Slope	12 db/octave
Bass-Boost	0 to 9 dB, user adjustable (zone 2/4 only)
Operating Voltage	10.8 V to 16 V dc
Remote Switch-On	Yes – 6 V threshold
Current Consumption (Standby)	< 1 mA @ 14.4 V input
Current Consumption (Idle)	< 2.5 A @ 14.4 V input
Current Consumption (Max)	100 A @ 14.4 V input
Fuse Rating	4 x 40 A ATC Blade-Type (SAE J1171 Compliant)
Protection Circuits	Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit
Operating Temperature Range	0 to 50 degreesC (32 to 122 degreesF)
Ingress Protection Rating	Dry area installation only
Dimensions	420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9/16′ (L) x 8-1/4′ (W) x 2-1/4′ (H)
Weight	5.20 kg with cover or 11.5 lb with cover
Warranty	3 years
