Fusion Signature Series Classic White Speakers 7.7in 280W

Stunning signature sound

Pushing the boundaries of what is possible on the water, the Fusion Signature Series Classic White Speakers are designed to provide unparalleled performance even when exposed to the harshest marine conditions. Combining ‘CURV’ Cone composite technology with a Silk Dome tweeter and fully sealed crossover components, the Classic White Signature 7.7″ speaker system is an elegant solution for premium on-water listening. These 7.7″ Signature Series speakers can handle up to a thunderous 280 Watt peak power.

CURV Cone Technology
Incorporates CURV woven fibre composite which is heat pressed to form a lighter and stronger cone that delivers greater sound definition and higher output while also providing increased protection from the marine conditions.

Perforated Metal Grille
This discreet, yet refined design is suitable for both indoor and outdoor installation. The elegant Classic White finish is designed to perfectly blend with the aesthetics of your vessel.

Fully Sealed Crossover Components
Provides full protection from the harsh marine environment, whilst delivering an improved frequency response at the crossover point for a detailed audio spectrum and new level of acoustic performance.

Silk Dome Tweeter
Creates a smooth upper frequency response with increased efficiency, producing crisp sound for unrivalled enjoyment.

Large Diameter Voice Coil
Delivering an increase in real power and efficiency, the voice coil provides a signature sound exclusive to the 7.7″ FUSION Speakers.

Designed To Comply With ISO12216
Tested to international standards for pressure and watertightness, it recognizes the Signature Series speakers are designed and built to the highest industry standards for quality and robustness.

The True-Marine Standard
As a True-Marine product, the Signature Series is designed and engineered for the harsh marine environment. Once a product has been subject to rigorous environmental testing and passed our stringent True-Marine approval process, it is awarded the accreditation and recognized with an industry-leading 3 year consumer warranty.

IP65 Water Resistance Rating
Every Signature Series marine speaker undergoes extensive environmental testing for ingress protection, ensuring they are prepared for the marine environment. The Signature Series has achieved an industry standard rating of IP65 – this indicates the product’s protection against dust and water ingress. You can be confident that your Signature Series marine speakers are designed to withstand the harsh marine environment season after season.

Fusion Signature Series Classic White Speakers Features:

• CURV Cone Technology
• Porforated Metal Grille
• Fully Sealed Crossover Components
• Silk Dome Twitter
• Large Diameter Voice Coil
• Designed To Comply With ISO12216

Fusion Signature Series Classic White Speakers Features:

• Product Code: SG-F77W
• Configuration: Coaxial
• RMS Power rating: 100W
• Peak power: 280W
• Efficiency (1W/1M): 91db
• Frequency Response: 60Hz – 22KHz
• Impedance: 4 Ohms
• Tweeter Type: Silk Dome
• Cone Material: CURV
• Voice Coil Diameter: 1.5″

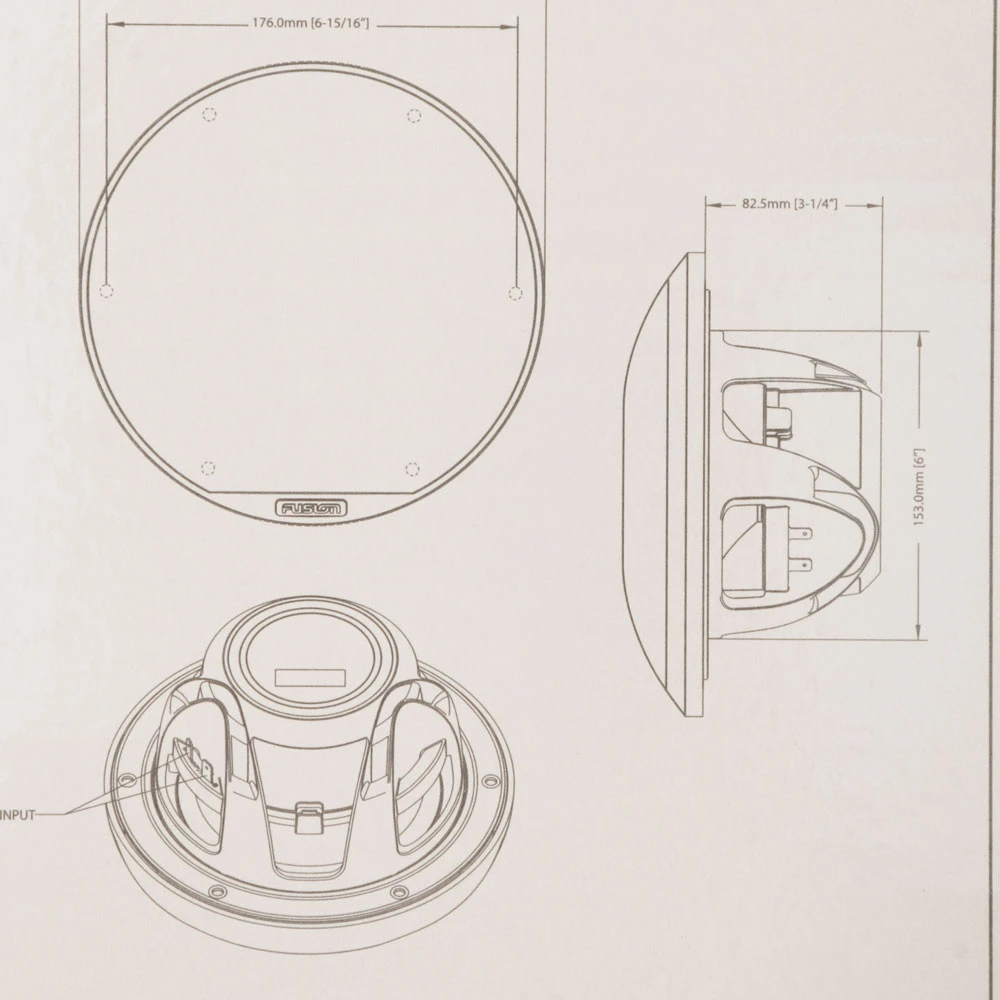

• Speaker Dimensions: Length x Height x Depth (Basket): Ø 220mm x 82.5mm [Ø 8-5/8″ x 3-1/4″]
• Mounting Diameter: 156mm (6.12 in.)
• Mounting Depth: 86mm (3.39 in.)
