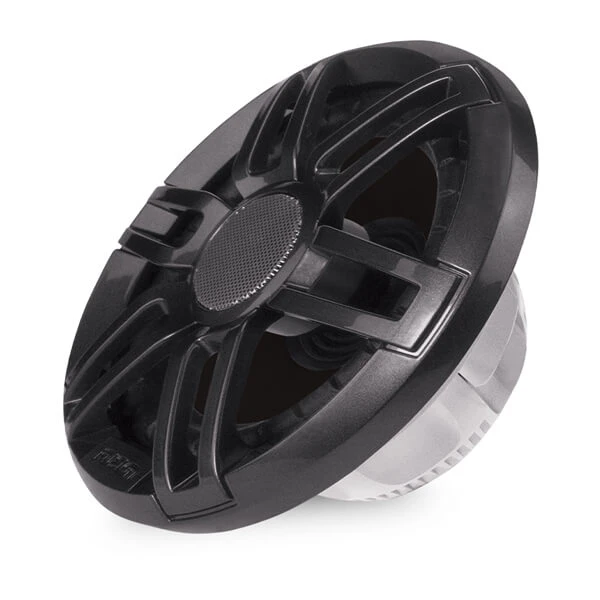

Fusion XS-F677SPGW XS Series Sports Marine Speakers 7.7in 240W

Enjoy high-performance acoustics, enhanced protection from the environment and multi-colour RGB LED lighting¹ all at a mid-range price point with the XS Series speakers from Fusion.

DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS

Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built to the highest industry standards for quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING

The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.

INJECTION-MOULDED POLYPROPYLENE CONE

By using a translucent cone, consistent multi-colour illumination is incorporated into the system. It also improves the robustness of the speaker, allowing for clean, clear audio reproduction.

ALUMINIUM DOME TWEETER

The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency, which delivers crystal-clear music reproduction.

OVERHUNG VOICE COIL

The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.

FULLY SEALED CROSSOVER COMPONENTS

Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

OPEN BASKET CONSTRUCTION

The optimised open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

Features:

• Experience multi-colour RGB LED lighting¹ to brighten up your boating experience.
• The injection-moulded polypropylene cone provides clean, clear audio reproduction.
• The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency.
• With an increase in real power, the voice coil provides a high-quality sound experience.
• The speakers are available in 4, 6.5 and 7.7” designs with both classic- and sports-style² grilles.
• Engineered to last season after season, the speakers include a 3-year warranty.

What’s In the Box

4′ 120-watt Classic Marine Speaker
• One pair of XS-F40CWB speakers
• 12 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm / 6 gauge x 1)
• Speaker grilles (1 classic white/1 classic black)
• Documentation

6.5′ 200-watt Sports Marine Speaker with RGB LED Lighting

• One pair of XS-FL65SPGW speakers
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm / 8 gauge x 1)
• Speaker grilles (1 sports gray/1 sports white)
• Documentation

6.5′ 200-watt Classic Marine Speaker

• One pair of XS-F65CWB speakers
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm / 8 gauge x 1)
• Speaker grilles (1 classic white/1 classic black)
• Documentation

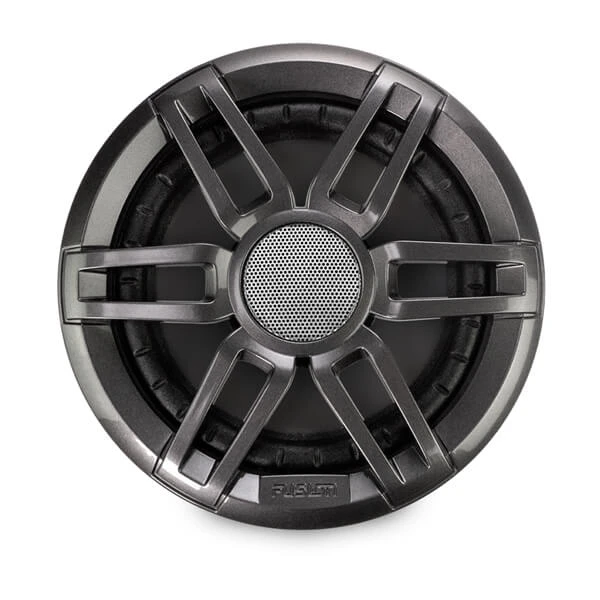

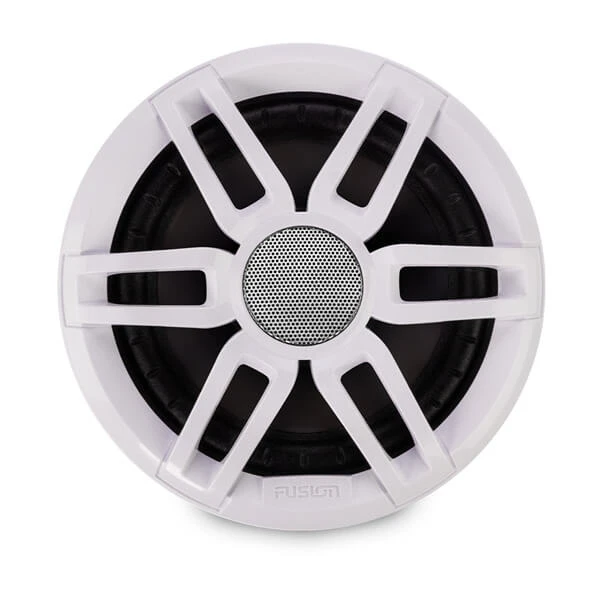

7.7′ 240-watt Sports Marine Speaker with RGB LED Lighting

• One pair of XS-FL77SPGW speakers
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm / 8 gauge x 1)
• Speaker grilles (1 sports gray/1 sports white)
• Documentation

7.7′ 240-watt Classic Marine Speaker

• One pair of XS-F77CWB speakers
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm / 8 gauge x 1)
• Speaker grilles (1 classic white/ 1 classic black)
• Documentation

Specifications:

General
Physical dimensions (Diameter x Depth)	7.7′ Classic: 7.72′ x 3.70′ (196 x 94 mm) 7.7′ Sports: 7.72′ x 3.82′ (196 x 97 mm) 6.5′ Classic: 6.97′ x 3.19′ (177 x 81 mm) 6.5′ Sports: 6.97′ x 3.27′ (177 x 83 mm) 4′ Classic: 5.31′ x 2.68′ (135 x 68 mm)
	IP65
Configuration	Coaxial
Speaker size	XS-F77CWB / XS-FL77SPGW: 7.7′ XS-F65CWB / XS-FL65SPGW: 6.5′ XS-F40CWB: 4′
Peak power (Watts)	7.7′ Speaker: 240 W 6.5′ Speaker: 200 W 4′ Speaker: 120 W
RMS power (Watts)	7.7′ Speaker: 60 W 6.5′ Speaker: 50 W 4′ Speaker: 30 W
Sensitivity (1 W / 1 m)	7.7′ Speaker: 92 dB 6.5′ Speaker: 91 dB 4′ Speaker: 87 dB
Frequency response	7.7′ Speaker: 70 Hz-18 kHz 6.5′ Speaker: 80 Hz-18 kHz 4′ Speaker: 100 Hz-18 kHz
Nominal impedance	4 ohms
Recommended amplifier power (RMS)	7.7′ Speaker: 25-200 W/Ch 6.5′ Speaker: 20-150 W/Ch 4′ Speaker: 15-80 W/Ch
LED lighting	Yes (RGB; sports-style only)
LED supply voltage	10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC	150 mA (sports-style only)
Operating temperature range	32 degrees to 122 degrees F (0 degrees to 50 degrees C)
Voice coil diameter	7.7′: 1.18′ 6.5′: 1.18′ 4′: 1′
Operating temperature range	7.7′ / 6.5′: Polypropylene cone with cloth surround 4′: Polypropylene cone with rubber surround
Tweeter type	Aluminum dome
Compass-safe distance	7.7′: 157.5′ (400 cm) 6.5′: 122′ (310 cm) 4′: 100.5′ (255 cm)
Warranty	3 years
Mounting dimensions
Mounting diameter clearance	7.7′: 6.38′ (162 mm) 6.5′: 5.31′ (135 mm) 4′: 3.90′ (99 mm)
Mounting depth clearance	7.7′: 3.03′ (77 mm) 6.5′: 2.64′ (67 mm) 4′: 2.13′ (54 mm)
Optimum enclosure recommendations
Sealed enclosure volume1	7.7′: 0.35 cubic ft (10 L) 6.5′: 0.28 cubic ft (8 L) 4′: 0.14 cubic ft (4 L)

¹ Fully filled with absorption material
